Connectors - SIEB & MEYER SD2 Series Hardware Description

Double-axis Drive Amplifiers
7.4.3

Connectors

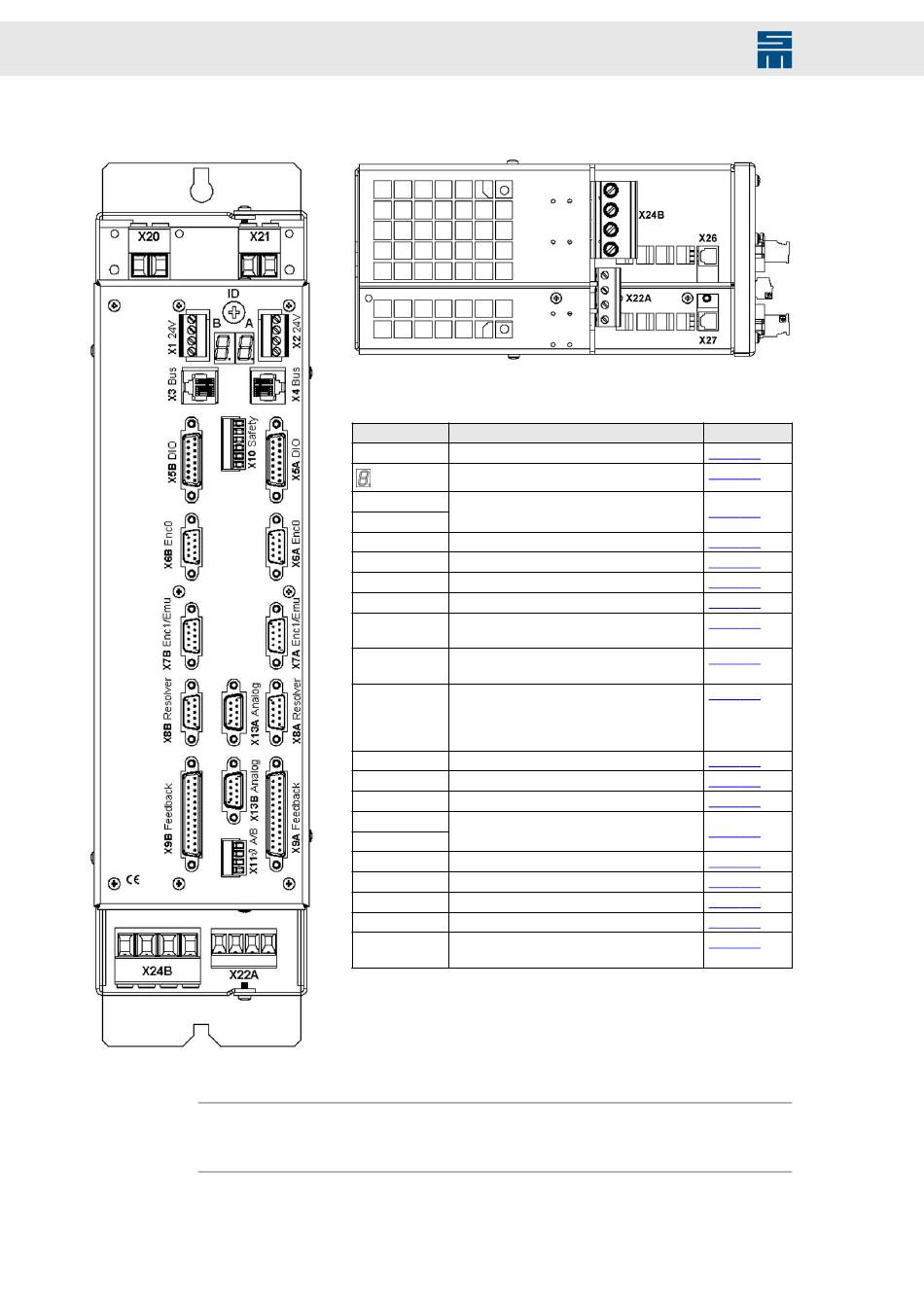

Fig. 51: Front view
Note
You can order the suitable connector kit for the device variant 0362115xxy at
SIEB & MEYER under article number 32299543.
74
Fig. 52: Bottom view
Connector Meaning
ID Address selection switch of device
Status display
A/B
X1 24 V
Power bus: 24 V logic supply and status
message from the power supply
X2 24 V
X3 Bus Bus inputs
X4 Bus Bus outputs
X5A/B DIO Digital inputs / digital outputs
X6A/B Enc0 Encoder 0 input
X7A/B Enc1/ Encoder 1 input / Emu output
Emu
X8A/B Re- Resolver
solver
X9 A/B Feed- Sine cosine encoder / incremental encoder
back TTL / Hall encoder / linear Hall encoder /
field plate sensor / EnDat encoder / SSI en-
coder / Hiperface encoder
X10 Safety Safety circuit / restart lock (STO)
X11ϑ A/B Temperature sensor of the motor
X13A/B Analog Analog signals
X20
DC link input
X21
X22A Connection of the motor phases
X24B Connection of the motor phases
X26 SERVOLINK 4 optical input
X27 SERVOLINK 4 optical output
SK 14/20 Mounting holes for shield connection clamps
SK 14/20 by Phoenix
Drive System SD2 - Hardware Description
Description
page 107
page 156
page 107
page 108
page 108
page 109
page 112
page 112
page 113
page 114
page 115
page 116
page 117
page 118
page 119
page 119
page 122
page 122
page 152
