Double-axis Drive Amplifiers
7.3.1
Dimensions

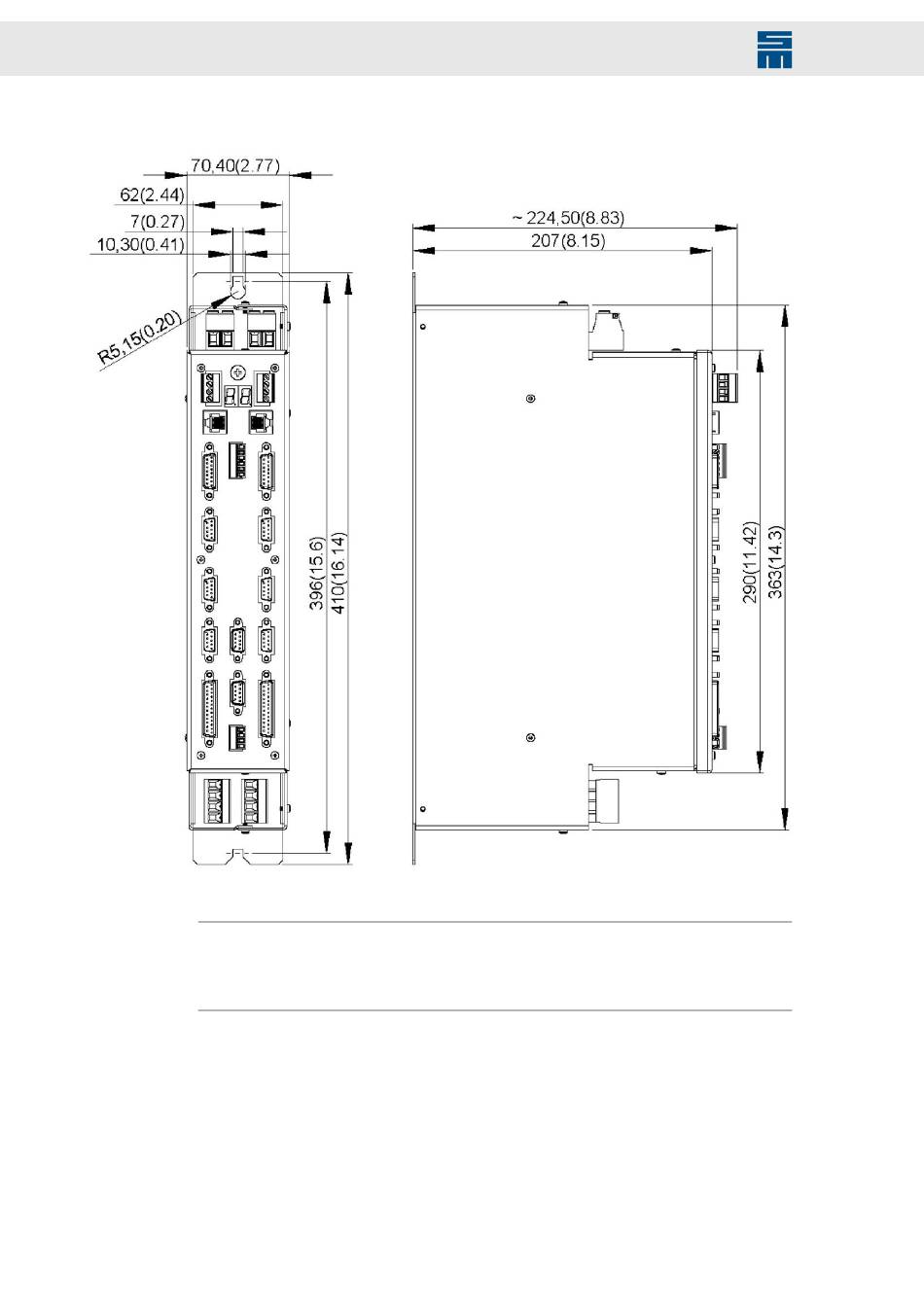

Fig. 45: Dimensions of 0362113xxy in mm (inch)
Note
For the installation consider that the heads of the cabinet screws located on the long
sides of each module overlap up to 2 mm. This causes a module gap of at least 4 mm
when several modules are combined in an assembly group.
68
Drive System SD2 - Hardware Description
