Double-axis Drive Amplifiers
7.1.1
Dimensions

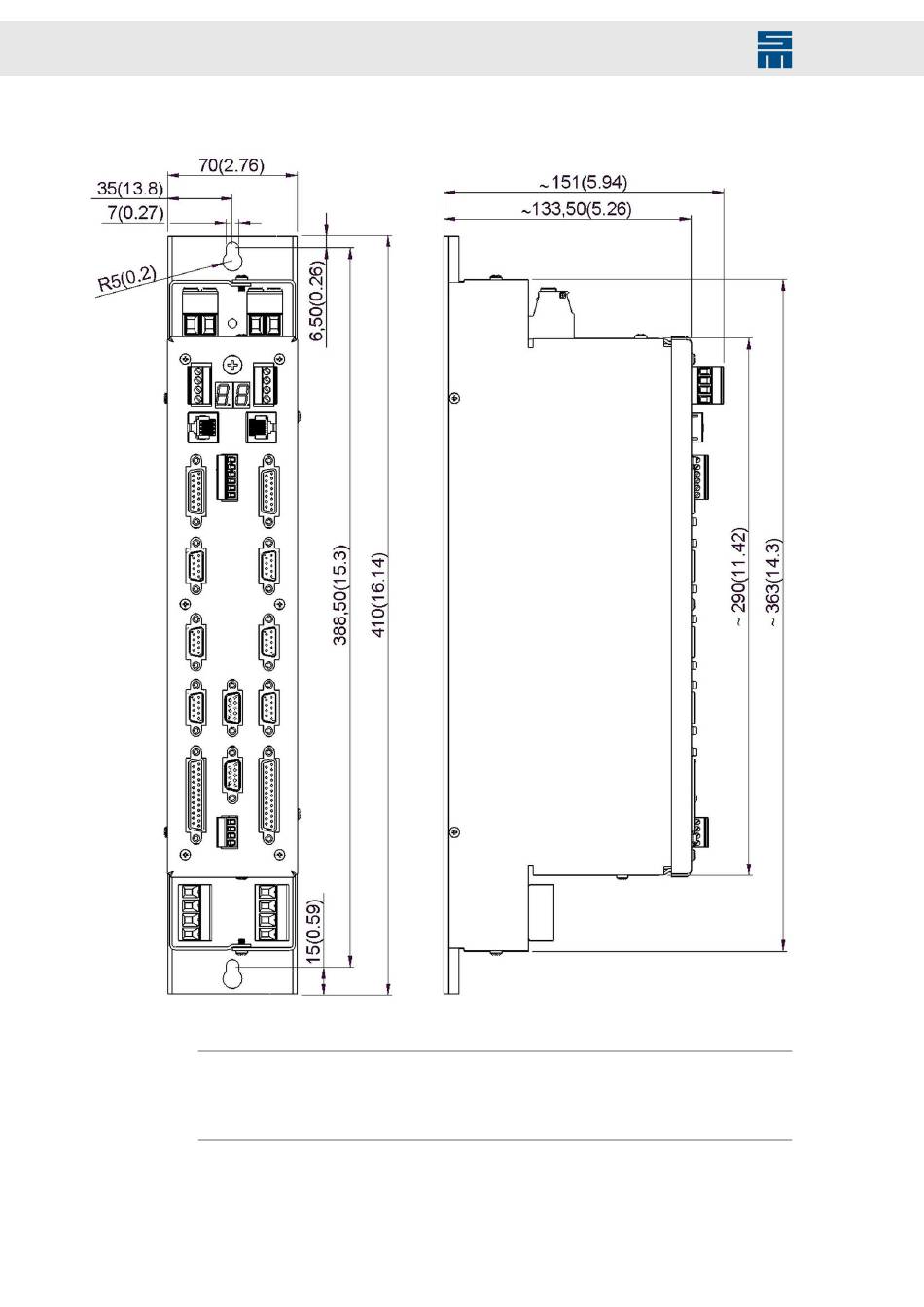

Fig. 37: Dimensions 0362110xxy in mm (inch)
Note
When installing the first and the last module, consider that the heads of the cabinet
screws located on the long sides of each module overlap up to 2 mm. Since the screws
are fastened staggered to each other, this is negligible between two modules.
60
Drive System SD2 - Hardware Description
