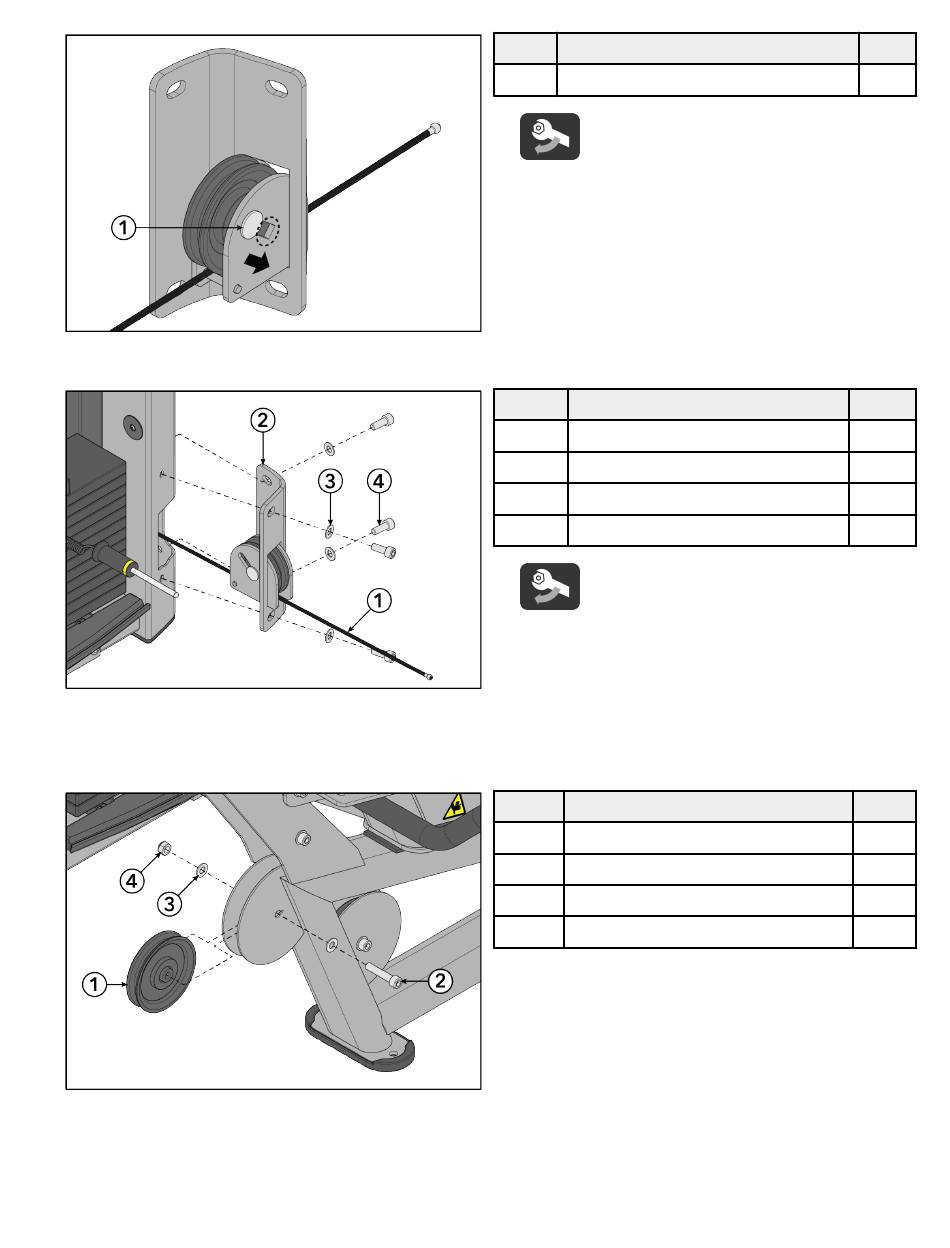

20. Slide the carriage bolt to the end of the slot in the lower pulley assembly using a 17mm wrench.
21. Install screws and washers securing the lower pulley assembly to the tower frame using an 8mm Allen wrench.
Cable Routing
1. Remove screw, washers, and locknut securing the pulley to the main frame using an 8mm Allen wrench and 17mm wrench.
Item
1 Carriage Bolt, M10 x 1.5, 50mm
Tighten hardware to 20-25 ft-lb (27.1-33.9 Nm).
Item
1
2
3
4
Tighten hardware to 20-25 ft-lb (27.1-33.9 Nm).
Item
1
2
3
4
Page 20 of 36
Description
Description
Cable
Lower Pulley Assembly
Washer, Flat 3/8"
Screw, M10 x 1.5, 25mm
Description
Pulley, 4.5" OD
Screw, M10 x 1.5, 50mm
Washer, Flat 3/8"
Nut, M10 x 1.5, Hex Nylock
Qty.
1
Qty.
1
1
4
4
Qty.
1
1
2
1
