Summary of Contents for CYBEX Eagle Leg Press

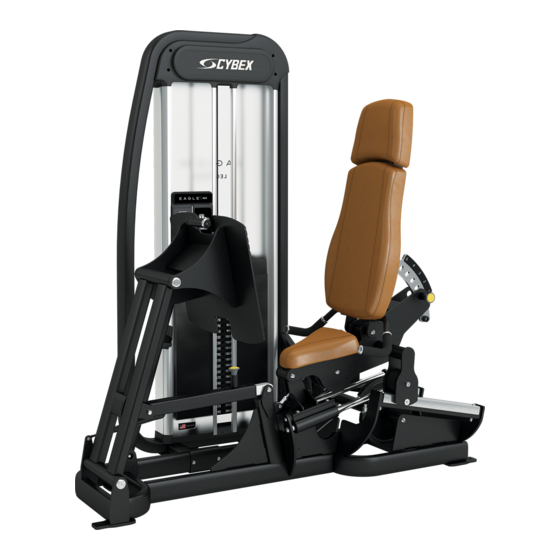

- Page 1 ® Cybex Eagle Leg Press Owner’s Manual Strength Systems Part Number 11040-999-4 A www.cybexinternational.com...
- Page 3 ® DISCLAIMER: Cybex International, Inc., makes no representations or warranties regarding the contents of this manual. We reserve the right to revise this document at any time or to make changes to the product described within it without notice or obligation to notify any person of such revisions or changes.
-
Page 5: Table Of Contents
Table of Contents 1 Safety Safety......1-1 Safety Guidelines and Practices ..1-2 Warning/Caution Decals . -
Page 7: Safety
• Securely anchor each machine to the fl oor using the anchor holes provided in each machine. NOTE: Cybex is not responsible for the actual anchoring of equipment. Consult with a professional contractor. NOTE: Use fasteners having a minimum of 500 lbs. tensile capacity (3/8” grade 2 bolts or better). -
Page 8: Safety Guidelines And Practices
SECURING EQUIPMENT: The machine has holes in the feet, which allow for ease in anchoring to the fl oor. Cybex strongly recommends that, to eliminate rocking, tipping or falling over due to incorrect usage and misuse, equipment be secured to a solid, level surface. -
Page 9: Warning/Caution Decals
Preventative maintenance allows proper equipment operation and reduces the risk of injury. Perform the maintenance requirements as specifi ed in the manual. STANDARD COMPLIANCE: Cybex products meet or exceed applicable ASTM and EN Standards. Warning/Caution Decals Warning decals indicate a potentially hazardous situation, which, if not avoided, could result in death or serious injury. - Page 10 Cybex Eagle 11040 Leg Press Owner’s Manual CAUTION Personal injury may occur. Keep away from moving parts to avoid injury. 4000Y316-4 A CAUTION Safety Page 1-4...
- Page 11 Cybex Eagle 11040 Leg Press Owner’s Manual Leg Press - 11040 DESCRIPTION PART NO. Warning Label ....4605-381-4 Caution Decal ....4000Y316-4 Caution Decal ....8500-025-4 Caution Decal ....8500-026-4 Caution Decal....8500-028-4 Safety Page 1-5...
-
Page 12: Regular Maintenance Activities
Cybex Eagle 11040 Leg Press Owner’s Manual Regular Maintenance Activities Preventative maintenance activities must be performed to maintain normal operation of your equipment. Keeping a log sheet of all maintenance actions will assist you in staying current with all preventative maintenance activities. -
Page 13: Exercises
Cybex Eagle 11040 Leg Press Owner’s Manual 2 - Exercise Intended Use MUSCLES USED The intended use of this equipment is to aid or improve general physical fi tness and exercise. For Commercial use. Instructions Read and understand all instructions and warnings prior to using this machine. - Page 14 Cybex Eagle 11040 Leg Press Owner’s Manual Set Up 1. Adjust back to desired angle. 2. Adjust foot plate to desired start position of about 90 degrees at the knee. 3. Position feet on foot plate shoulder width apart and toes pointed slightly outward.
-
Page 15: Customer Service
Contact your authorized Cybex dealer on all warranty-related matters. Your local Cybex dealer will request a RMA from Cybex, if applicable. Under no circumstances will defective parts or equipment be accepted by Cybex without proper RMA and an Automated Return Service (ARS) label. -
Page 16: Damaged Parts
3. Provide the model and serial number of your Cybex equipment. 4. At Cybex’s discretion, the technician may request that you return the problem part(s) to Cybex for evaluation and repair or replacement. The technician will assign you a RMA number and will send you an ARS label. The ARS label and the RMA numbers must be clearly displayed on the outside of the package that contains the item(s) to be returned. -
Page 17: Assembly
Verify that you received the correct color machine that you ordered. Verify you received weight plates and weight plate decals. Verify you received the Cybex Eagle Leg Press Owner’s Manual. Verify you received the warranty sheet. 3. Move to desired location. - Page 18 Cybex Eagle 11040 Leg Press Owner’s Manual Remove the fi ve Phillips screws securing the shield near the cam and remove shield. See Figure 1A. Phil Hex Washer (5) Rotate cam and disconnect weight stack belt from cam (by loosening the two set screws on the belt clamp with a 7/32”...
- Page 19 Cybex Eagle 11040 Leg Press Owner’s Manual Remove the three Phillips head screws securing the top (back) shroud and carefully remove the shroud. See Figure 5. Loosen bottom two screws shown in Figure 6. Phillips Head NOTE: Do not remove the bottom two screws.
- Page 20 Cybex Eagle 11040 Leg Press Owner’s Manual Slide top weight onto guide rods. Insert and Set Screws (not shown) are on this side. Place lower snap ring and wave washer onto guide Belt rod (about 3” from the top end of guide rod).
- Page 21 1 8 .0 3 6 .0 4 5 .0 1 0 0 NOTE: Cybex is not responsible for the actual anchoring of Weight Stack 5 4 .0 1 2 0 6 3 .0 1 4 0 equipment.
- Page 22 Cybex Eagle 11040 Leg Press Owner’s Manual This page intentionally left blank. Assembly Page 4-6...
-
Page 23: Maintenance
Cybex Eagle 11040 Leg Press Owner’s Manual Chapter 5 - Maintenance All preventive maintenance activities must be performed on a regular basis. Performing routine preventive maintenance actions can aid in providing safe, trouble-free operation of all Cybex Strength Systems equipment. NOTE: Cybex is not responsible for performing regular inspection and maintenance actions for your machines. - Page 24 Do not inhale or swallow any cleaning product. Protect surrounding area/clothing from exposure. Use in a well ventilated area. Follow all product manufacturer’s warnings. CYBEX and its vendors cannot be held responsible for damage or injuries resulting from the use or misuse of cleaning products.
- Page 25 Cybex Eagle 11040 Leg Press Owner’s Manual 4. Guidelines for cleaning front panel: • Use clean soft cloths or sponges for application of cleaners and again for washing and rinsing. • Follow up the application with warm water rinse. •...
-
Page 26: Weekly Procedures
Cybex Eagle 11040 Leg Press Owner’s Manual Weekly Procedures 1. Check all nuts and bolts for looseness. Tighten as required. 2. Inspect all belts (entire length) for any non-uniformity and wear. Immediately replace belt if any of the following conditions are present:... - Page 27 Cybex Eagle 11040 Leg Press Owner’s Manual 3. Some machines use cables in addition to belts. Inspect all cables for wear or damage and proper tension. When inspecting cables, run your fingers on the cable, paying particular attention to bends in the cable and attachment points.
-
Page 28: Yearly Procedures
Cybex Eagle 11040 Leg Press Owner’s Manual 4. Inspect bars and handles for wear, paying particular attention to tab area connecting points. Replace all worn handles immediately. 5. Inspect snap links for proper latching (indicates wear). Replace all worn snap links immediately. -
Page 29: Environment
Cybex Eagle 11040 Leg Press Owner’s Manual Environment Static Electricity - Depending upon where you live, you may experience dry air, causing a common experience of static electricity. This may be especially true in the winter time. You may notice a static build-up just by walking across a carpet and then touching a metal object. - Page 30 Cybex Eagle 11040 Leg Press Owner’s Manual Maintenance Page 5-8...
- Page 32 10 Trotter Drive Medway, MA 02053 • 508-533-4300 • FAX 508-533-5183 www.cybexinternational.com • techhelp@cybexintl.com...
