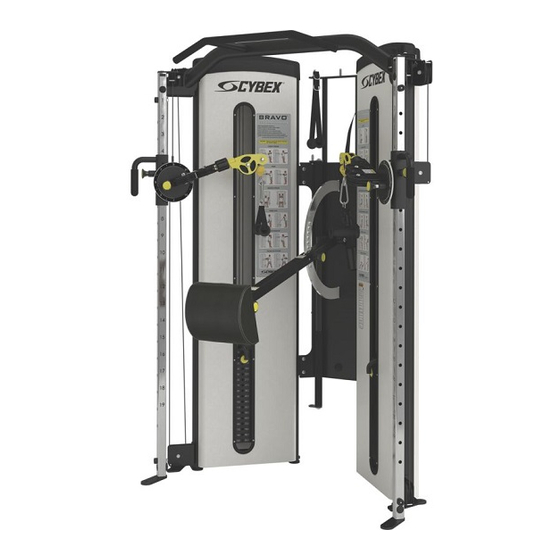

- Page 1 Bravo 8830/8840 ™ Owner’s Manual Strength Systems Part Number 8830-999-4 www.cybexintl.com...
-
Page 2: Table Of Contents
® DISCLAIMER: Cybex International, Inc., makes no representations or warranties regarding the contents of this manual. We reserve the right to revise this document at any time or to make changes to the product described within it without notice or obligation to notify any person of such revisions or changes. -
Page 3: Safety Guidelines And Practices
Safety Safety Guidelines And Practices Cybex International partners with equipment owners to establish the safest and most effective setup of Cybex equipment. Cybex International urges each facility owner to carefully follow all safety precautions. Following theses precautions are the best protection against personal injury or damage to equipment or facility. - Page 4 Cybex Bravo 8830/8840 Owner’s Manual Use the selectorized and plate loaded machines as shown on placards. DO NOT modify the • machine. Never pin the weights in an elevated position. DO NOT use the machine if found in this condition. •...
- Page 5 Cybex Bravo 8830/8840 Owner’s Manual Inspect the equipment for worn or loose components prior to use. Tighten/replace any loose or • worn components before to using. Pay close attention to belts, cables, grips or pulleys and their connections. Always look for potential problems in equipment condition. Loose components should be tightened to function properly.
-
Page 6: Securing Equipment
Cybex Bravo 8830/8840 Owner’s Manual Securing Equipment Do not use machine until it is properly anchored. The machine has holes in the feet, which allow for ease in anchoring to the floor. All anchoring holes must be used to maximize stability. Equipment must be secured to a solid, level surface to eliminate rocking, tipping, or falling over due to incorrect usage and misuse. -
Page 7: Regular Maintenance Activities
Cybex Bravo 8830/8840 Owner’s Manual Regular Maintenance Activities Preventative maintenance activities must be performed to maintain normal and safe operation of your equipment. Keeping a log sheet of all maintenance actions will assist you in staying current with all preventative maintenance activities. The preventative maintenance actions are described in detail in the maintenance section of this manual. -
Page 8: Warnings And Cautions
Cybex Bravo 8830/8840 Owner’s Manual Warnings and Cautions Warning decals indicate a potentially hazardous situation that could result in death or serious injury if the precautions are not observed. Caution decals indicate a potentially hazardous situation, which, if not avoided, could result in minor or moderate injury. -
Page 9: Label Placement
Cybex Bravo 8830/8840 Owner’s Manual Label Placement 8840 Chin-Up Bar 8500-025-X 4605-381-X 8800-442-X 8500-025-X 8500-025-X... -
Page 10: Assembly
Cybex Bravo 8830/8840 Owner’s Manual Assembly Machine Specifications Dimensions/Weight 8830 At Use And At Rest 8840 At Use And At Rest L x W x H 45” L 54” W x 77” H 45” L 54” W x 87” H L x W x H 114 cm L x 137 cm W x 196 cm H 114 cm L x 137 cm W x 221 cm H... -
Page 11: Assembly Procedure
Cybex Bravo 8830/8840 Owner’s Manual Assembly Procedure Read and understand all instructions thoroughly before assembling this unit. Verify parts list shown below. Part Number Description Diagram Foot Pad 12090-322 6.25” X 2.00” Foot Pad 13000-353 5.00” X 2.00” 13000-354 Foot Pad 13000-355 Foot Pad Decal, Standard... - Page 12 Cybex Bravo 8830/8840 Owner’s Manual Move to desired location Then Two people will be required for this procedure If machine can be 1. Move to desired location. moved without adding or removing 2. Remove the four shipping cones using a 3/4” socket or wrench. weight stacks.
-
Page 13: Install Weight Plates
Cybex Bravo 8830/8840 Owner’s Manual Then 5. Repeat procedure for opposite guide rods. 6. Remove spiral pin securing cable end to top weight using a 3/16” pin punch and hammer. Cable Pulley Bracket Roll If machine needs weight stacks Top Weight Connector removed before moving to desired... -
Page 14: Cable Routing
Cybex Bravo 8830/8840 Owner’s Manual Cable routing 1. Verify cable is routed through top of pulley bracket and then route cable end to top weight connector. 2. Pull cable tight and secure in place with spiral pin using a 3/16” pin punch and a hammer. Cable Pulley Bracket Top Weight... -
Page 15: Weight Stack Decals
Cybex Bravo 8830/8840 Owner’s Manual 3. Place weight stack pin in each plate to verify proper installation. 4. Lift top weight up and down simulating normal operation (without selecting any resistance). 5. Verify that the cable is moving smoothly and is routed straight from the pulley bracket to the top of the weight plate connector. - Page 16 Cybex Bravo 8830/8840 Owner’s Manual Then Two people will be required for this procedure 1. Move to desired location. 8830/8840 can fit through a doorway 2. Remove the four shipping cones using a 3/4” socket or wrench. 3. Attach foot pads to each foot of frame. 1.
- Page 17 Cybex Bravo 8830/8840 Owner’s Manual Then 1. Remove the four shipping cones using a 3/4” socket or wrench. 2. Place foot pads on each foot of the frame. 3. Remove the four BHSCS securing one of the halves. BHSCS BHSCS 4.
- Page 18 Cybex Bravo 8830/8840 Owner’s Manual Securely anchor machine to the floor To maximize stability, equipment must be secured to a solid level surface. Cybex is not responsible for the actual anchoring of equipment. Consult with a professional • contractor. Use fasteners having a minimum of 500 lbs. tensile capacity (3/8’’ grade 2 bolts or better). •...
-
Page 19: Exercise
Cybex Bravo 8830/8840 Owner’s Manual Exercise Intended Use The intended use of this machine is to aid or improve general physical fitness and exercise for commercial use. Instructions Read an understand all instructions and warnings prior to using this machine in the Safety section of the Owner’s Manual. - Page 20 Cybex Bravo 8830/8840 Owner’s Manual ARM CURL SEATED PRESS TRUNK ROTATION ARM EXTENSION SQUAT HIP ABDUCTION HIP FLEXION-KNEE EXTENSION HIP ADDUCTION...
- Page 21 Cybex Bravo 8830/8840 Owner’s Manual HIP EXTENSION-KNEE FLEXION TRUNK FLEXION TRUNK EXTENSION...
-
Page 22: Maintenance
Cybex Bravo 8830/8840 Owner’s Manual Maintenance All preventive maintenance activities must be performed on a regular basis. Performing routine preventive maintenance actions can aid in providing safe, trouble-free operation of all Cybex Strength Systems equipment. Cybex is not responsible for performing regular inspection and maintenance actions for your machines. - Page 23 Cybex Bravo 8830/8840 Owner’s Manual Clean Upholstery Then 1. Prepare a solution of 10% household liquid soap and warm water. 2. Apply with a soft damp cloth. Light Soiling 3. If necessary, apply a solution of liquid cleanser with a soft bristle brush. 4.
- Page 24 Cybex Bravo 8830/8840 Owner’s Manual Clean Chrome Clean chrome tubes, first using chrome polish and then using a car wax seal. Neutral cleaners with a pH between 5.5 and 8.5 are recommended. Be sure to dry thoroughly. AVOID acid or chlorine based cleaners and also cleaners containing abrasives as these could scratch or damage the equipment.
-
Page 25: Weekly Procedures
Cybex Bravo 8830/8840 Owner’s Manual Weekly Procedures Inspect All Nuts and Bolts Tighten all loose nuts and bolts as required. WARNING: Serious injury or death may result if the following precautions are not followed. Replace all worn cables and belts. Worn cables and belts can fail if not replaced. - Page 26 Cybex Bravo 8830/8840 Owner’s Manual Belts Condition of Belt 3D View 3D or Side View Peeling of the belt’s skin. Wave in belt Replace belt if any Examine edge of belt (both sides). section is over 1/32” Replace belt if any section is (.03) narrower than the narrower than the rest.
-
Page 27: Yearly Procedures
Cybex Bravo 8830/8840 Owner’s Manual CAUTION: Personal injury or property damage may occur if the following precautions are not followed. Do not use if less than 1/8” of material remains to the edge. Replace all worn handles immediately. Failure to replace worn handles can result in injury or property damage. -
Page 28: Cable Adjustment
Cybex Bravo 8830/8840 Owner’s Manual Cable Adjustment Tools Required 9/16” Wrench (2) Four types of cable tension adjustment are used on Cybex Strength Systems: Cable Description Diagram Adjustment This type of adjustment uses a jam nut and a tension adjustment nut at Jam Nut the cable cam end as the primary Adjustment... -
Page 29: Belt Adjustment
Cybex Bravo 8830/8840 Owner’s Manual Belt Adjustment Tools Required 7/32” Wrench • Torque wrench (lbs-in) • Belt Adjustment Action 1. Using a 7/32” Allen wrench loose set screws. 2. Pull belt tight. 3. Secure belt in place with set screws. Loose Belt 4. -
Page 30: Customer Service
Cybex Bravo 8830/8840 Owner’s Manual Customer Service Product Registration To register product do the following: 1. Visit www.cybexintl.com. 2. Locate Product Registration in the Support section. 3. Fill out form completely. 4. Click the Submit button to register product. Contacting Service Hours of phone service are Monday through Friday from 8:30 a.m. -
Page 31: Ordering Parts
Cybex Bravo 8830/8840 Owner’s Manual Ordering Parts To order parts online go to www.cybexintl.com. Select Support > Parts / Ordering. In the left navigation panel, click Parts Diagrams - Current Products. Select from the drop down boxes. To speak with a customer service representative, call 888-462-9239 (for customers living within the USA) or 508-533-4300 (for customers outside the USA). -
Page 32: Return Material Authorization (Rma)
Cybex Bravo 8830/8840 Owner’s Manual Return Material Authorization (RMA) The Return Material Authorization (RMA) system is used when returning material for placement, repair or credit. The system assures that returned materials are properly handled and analyzed. Follow the following procedures carefully. Contact your authorized Cybex dealer on all warranty-related matters. - Page 34 10 Trotter Drive Medway, MA 02053 508-533-4300 FAX 508-533-5183 • • www.cybexintl.com...
