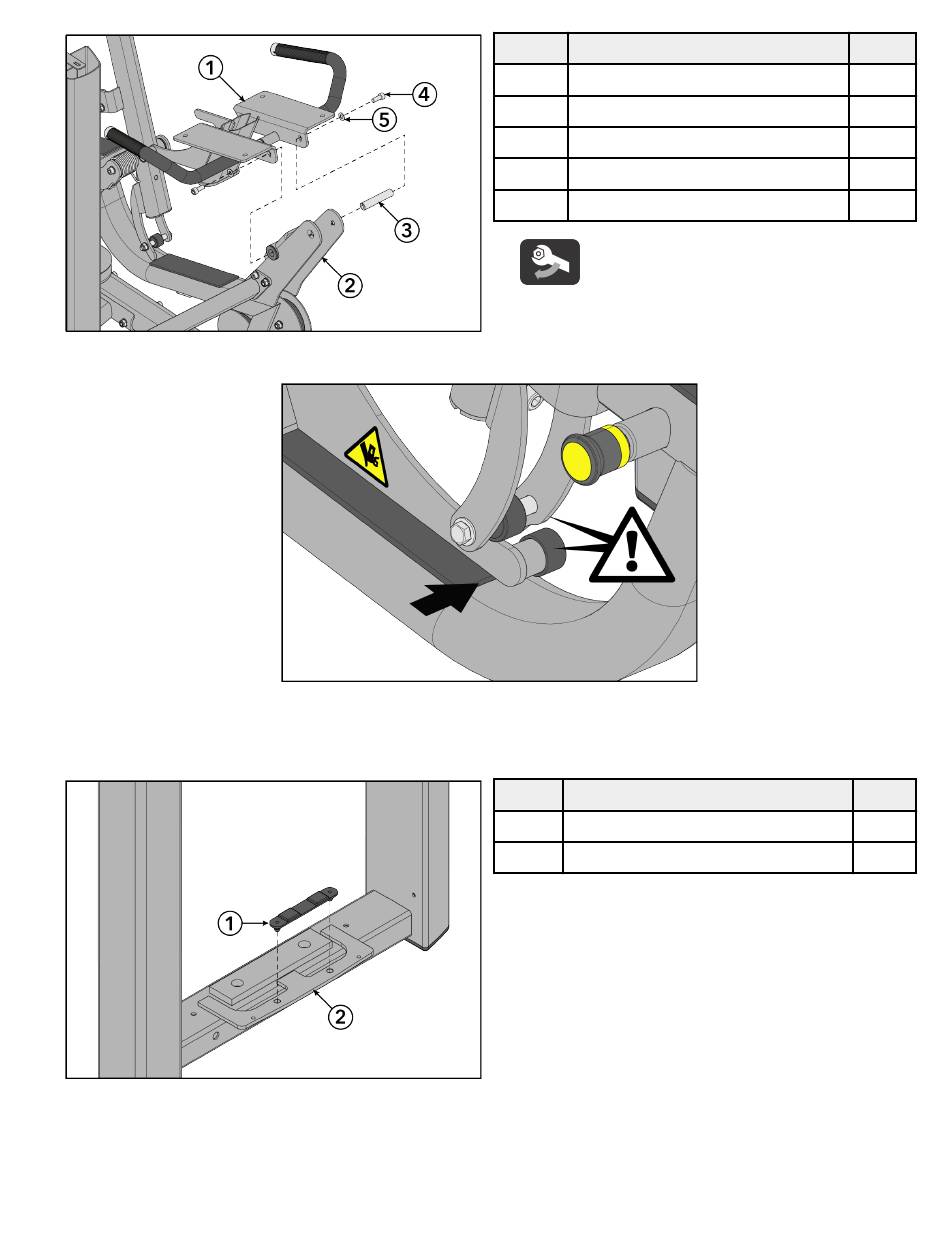

8. Install screws and washers securing the seat frame to the main frame using an 8mm Allen wrench.
NOTE: Slide bumper sleeve on the seat frame behind the main frame back pad weldment when installing.
Assemble Tower
1. Install the increment weight bumper to the bottom plate of the tower frame.
Item
1
2
3
4
5
Tighten hardware to 20-25 ft-lb (27.1-33.9 Nm).
Item
1
2
Page 13 of 36
Description
Seat Frame
Main Frame
Pivot Shaft, 19mm
Screw, M10 x 1.5, 25mm
Washer, Flat 3/8"
Description
Increment Weight Bumper
Tower Frame
Qty.
1
1
1
2
2
Qty.
1
1
