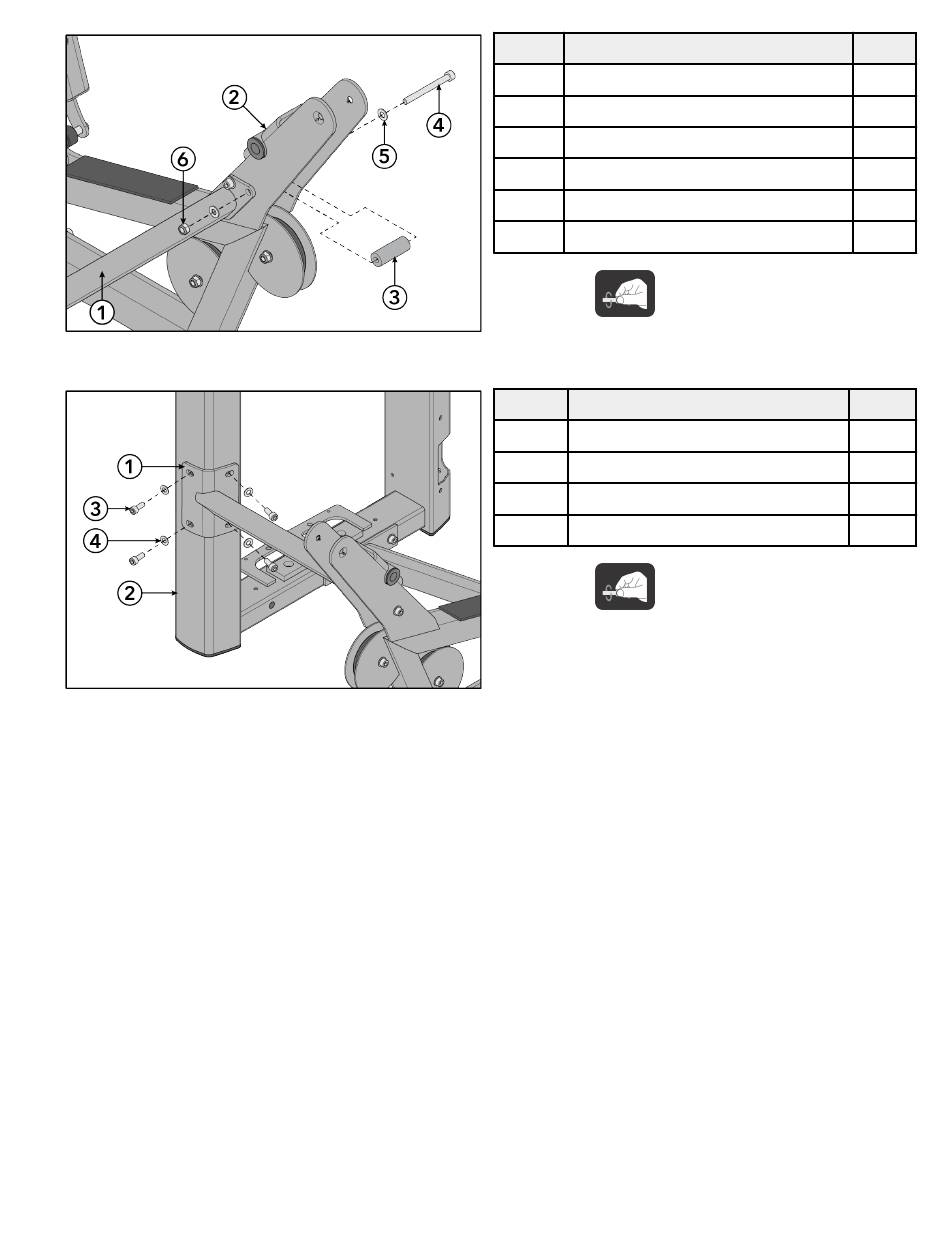

4. Install screw, washers, and locknut securing the work arm stop to the main frame using an 8mm Allen wrench and 17mm wrench.
5. Install screws and washers securing the front cross brace to the tower frame using an 8mm Allen wrench.
6. Tighten the hardware from Steps 1-5 to 20-25 ft-lb (27.1-33.9 Nm).
7. Slide pivot shaft through the flange bearings in the main frame. Place seat frame over the pivot shaft.
Item
1
2
3
4
5
6
Item
1
2
3
4
Page 12 of 36
Description
Front Cross Brace
Main Frame
Work Arm Stop
Screw, M10 x 1.5, 100mm
Washer, Flat 3/8"
Nut, M10 x 1.5, Hex Nylock
Hand tighten hardware.
Description
Front Cross Brace
Tower Frame
Screw, M10 x 1.5, 25mm
Washer, Flat 3/8"
Hand tighten hardware.
Qty.
1
1
1
1
2
1
Qty.
1
1
4
4
