CYBEX Ion Series Assembly Instructions Manual page 19

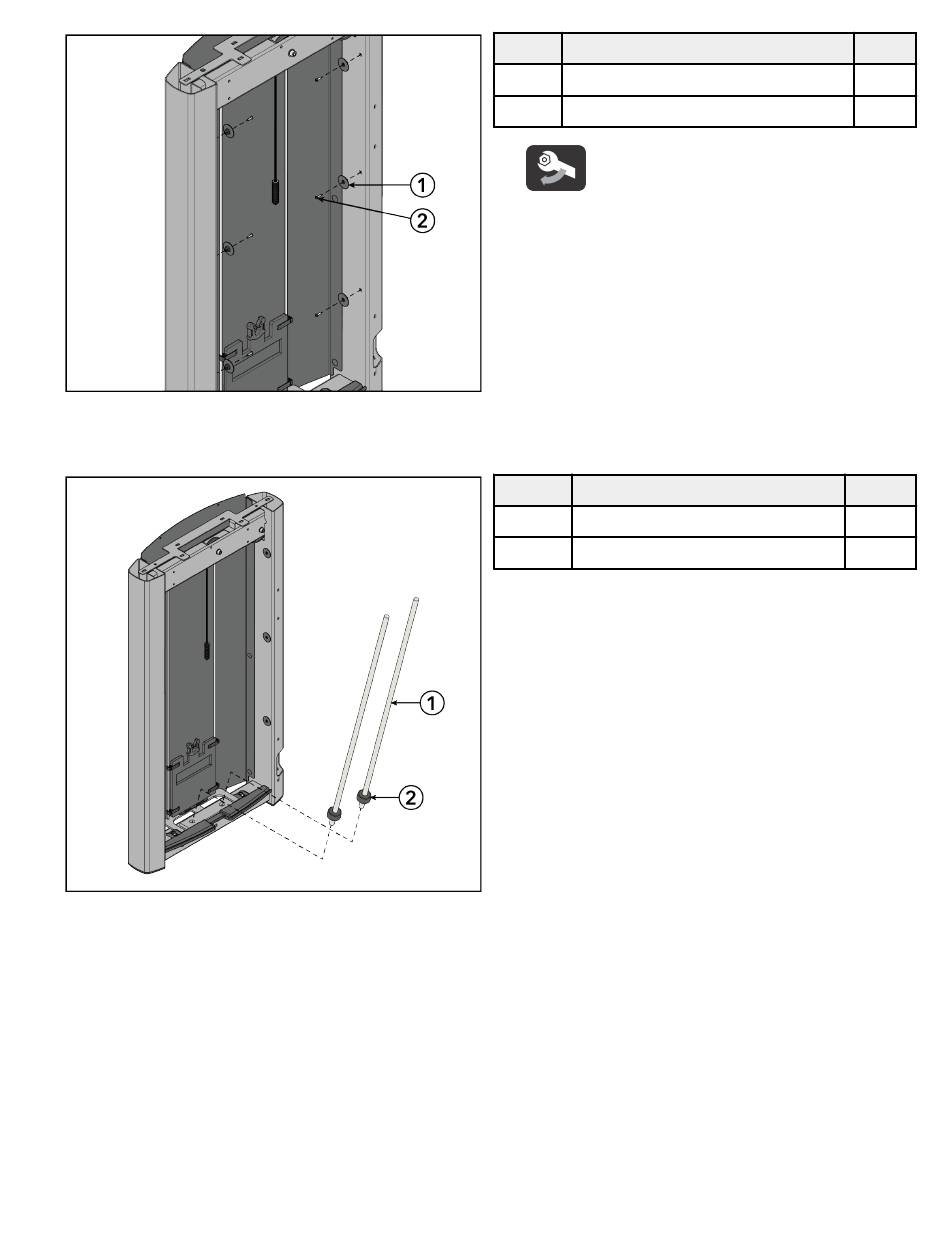

10. Install screws and shroud retainer grommets into the side tubes of the tower frame using a Phillips screwdriver.
11. Slide weight stack cushions onto the guide rods.
12. Place guide rods with weight stack cushions into the holes at the bottom of the tower frame.
Item
1
2
Tighten hardware to 10-13 in-lb (1.1-1.5 Nm).
Item
1
2
Page 17 of 36
Description
Grommet, Shroud Retainer
Screw, M4.2 x 0.7, Phillips
Description
Guide Rod
Weight Stack Cushion
Qty.
6
6
Qty.
2
2
