CYBEX Ion Series Assembly Instructions Manual page 27

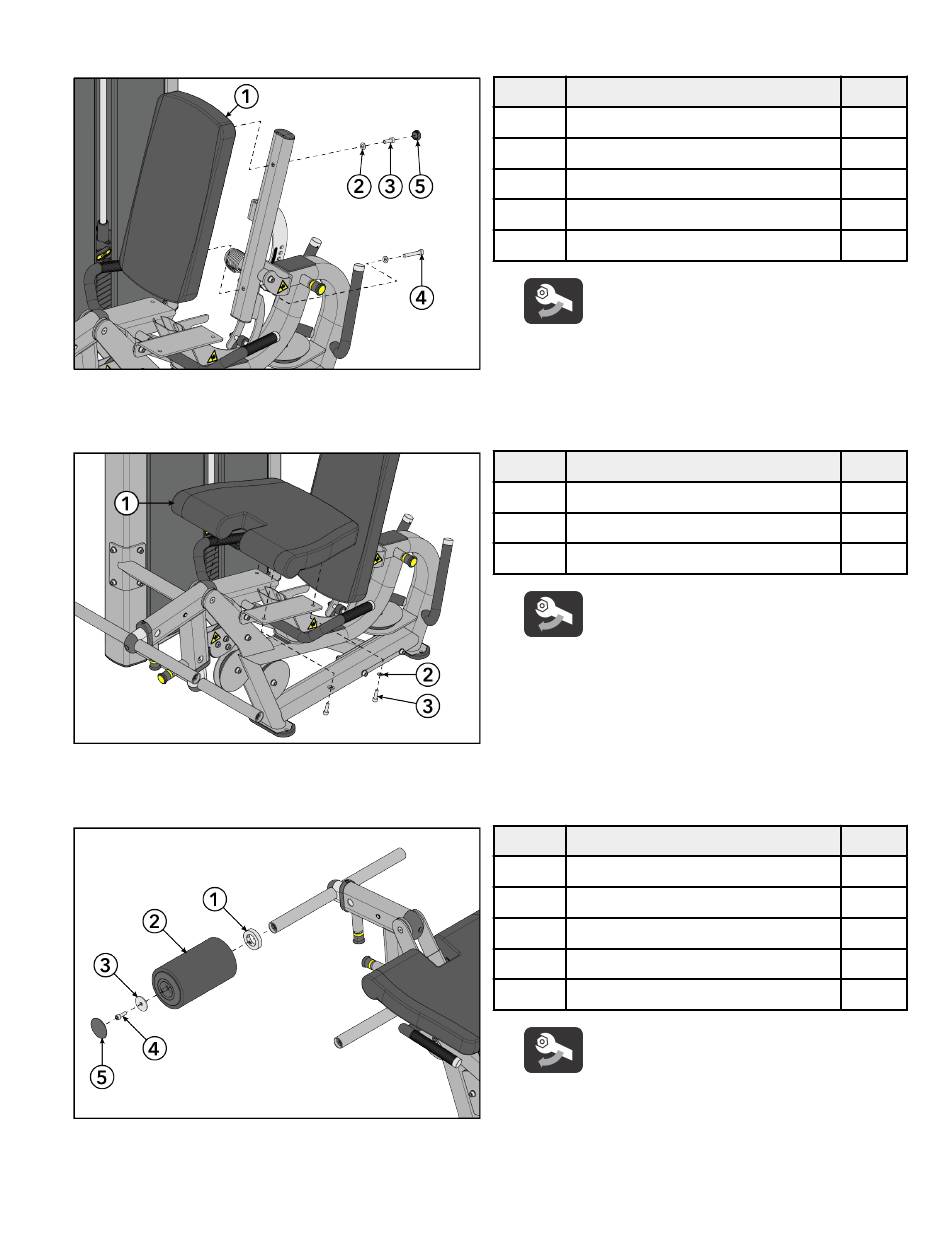

Install Pads
1. Install screws and washers securing the back pad to the main frame back pad weldment using an 8mm Allen wrench.
2. Install hole plug to the main frame back pad weldment using a rubber mallet.
3. Install screws and washers securing the seat pad to the seat frame using an 8mm Allen wrench.
4. Slide shaft collar and roller pad onto the leg curl assembly.
5. Install screw and roller pad plate securing the roller pad to the leg curl assembly using an 8mm Allen wrench.
6. Tighten set screws in shaft collars to 8-10 ft-lb (10.8-13.5 Nm) using a 4mm Allen wrench.
7. Install bearing housing caps to roller pads using a rubber mallet.
Item
1
2
3
4
5
Tighten hardware to 40-50 in-lb (4.5-5.6 Nm).
Item
1
2
3
Tighten hardware to 40-50 in-lb (4.5-5.6 Nm).
Item
1
2
3
4
5
Tighten hardware to 40-50 in-lb (4.5-5.6 Nm).
Page 25 of 36
Description
Back Pad
Washer, Flat 3/8"
Screw, M10 x 1.5, 30mm
Screw, M10 x 1.5, 70mm
Hole Plug, 1"
Description
Seat Pad
Washer, Flat 3/8"
Screw, M10 x 1.5, 30mm
Description
Shaft Collar
Roller Pad
Roller Pad Plate
Screw, M10 x 1.5, 30mm
Bearing Housing Cap
Qty.
1
2
1
1
1
Qty.
1
4
4
Qty.
4
4
4
4
4
