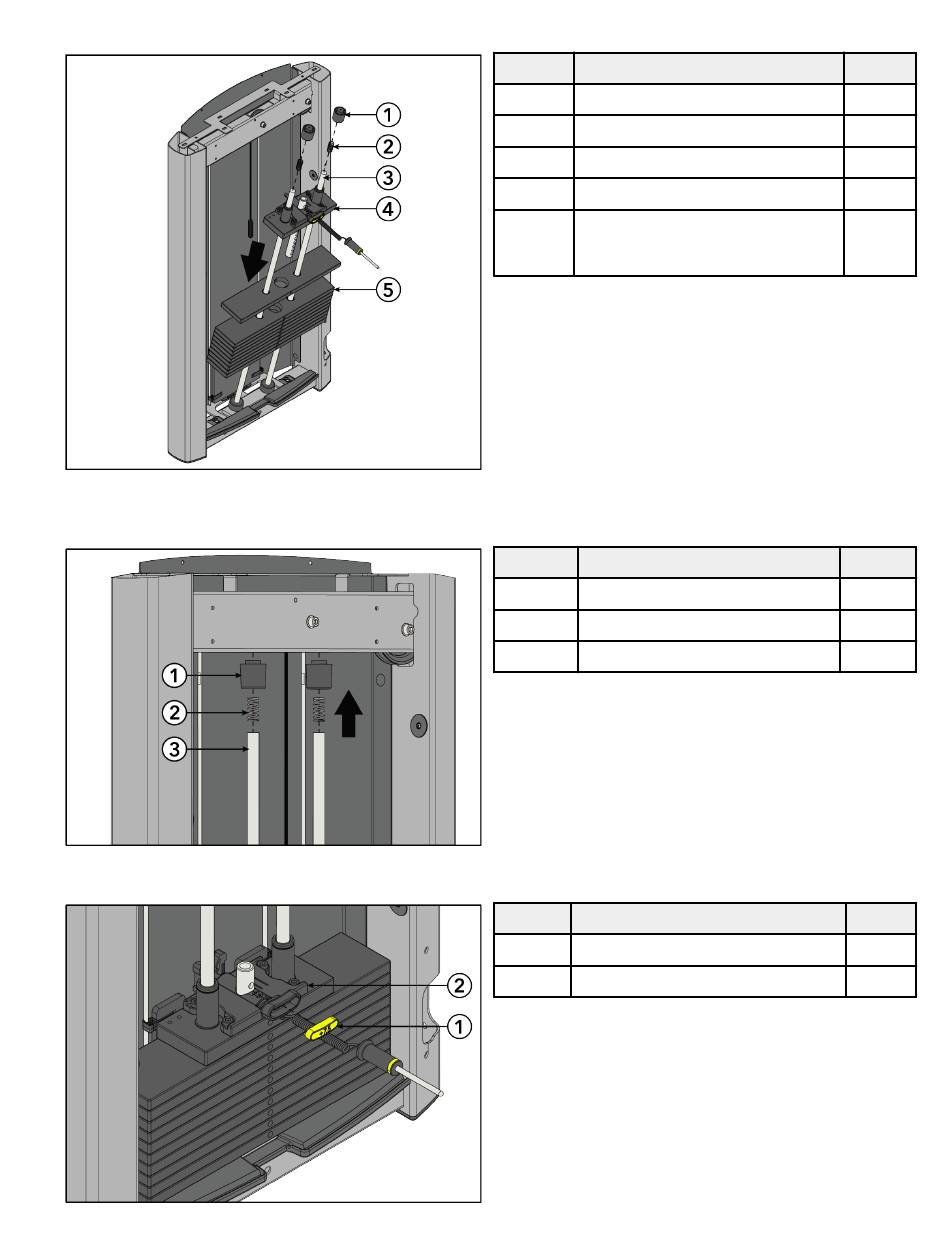

13. Lean guide rods outwards and slide weight stack down guide rods onto weight stack cushions. Slide head plate assembly down
guide rods and onto weight stack.
14. Tip guide rods back into an upright position in the tower frame. Compress guide rod housings onto the springs and guide rods and
fit up into the top of the tower frame.
15. Select the LBS (7.5) or KG (3.75) option of the increment weight cap. Press increment weight cap into the head plate assembly.
Item
1
2
3
4
5
Item
1
2
3
Item
1
2
Page 18 of 36
Description
Guide Rod Housing
Spring
Guide Rod
Head Plate Assembly
Weight Stack
(Weight Plates)
Description
Guide Rod Housing
Spring
Guide Rod
Description
Increment Weight Cap
Head Plate Assembly
Qty.
2
2
2
1
1
(12)
Qty.
2
2
2
Qty.
1
1
