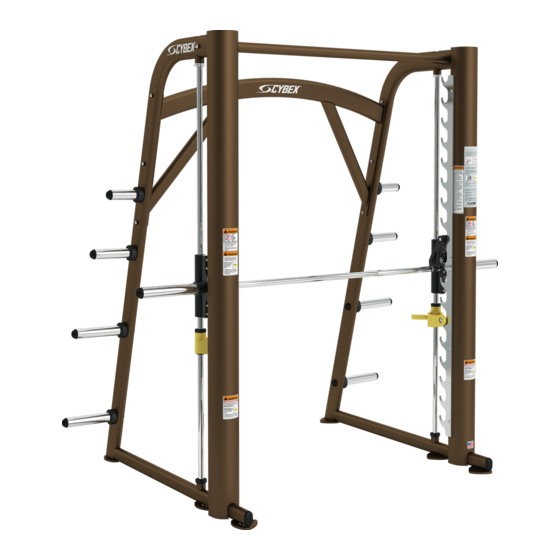

- Page 1 Cybex Plate Loaded 16120 Smith Press ® Owner’s Manual Strength Systems Part Number 16120-999-4 F www.cybexintl.com...
-
Page 2: Table Of Contents
Cybex logo are registered trademarks of Cybex International, Inc. DISCLAIMER: Cybex International, Inc., makes no representations or warranties regarding the contents of this manual. We reserve the right to revise this document at any time or to make changes to the product described within it without notice or obligation to notify any person of such revisions or changes. -
Page 3: Safety
Make sure that each machine is set up and operated on a solid level surface. Do not install • equipment on an uneven surface. CAUTION: Cybex is not responsible for the actual anchoring of equipment. Consult with a professional contractor. -
Page 4: Safety Guidelines And Practices
Safety Guidelines and Practices Cybex recommends that all fitness equipment be used in a supervised area. It is recommended that the equipment be located in an access controlled area. Control is the responsibility of the owner. The extent of control is at the discretion of the owner. - Page 5 Cybex Plate Loaded 16120 Smith Press Owner’s Manual SECURING EQUIPMENT: The machine has holes in the feet, which allow for ease in anchoring to the floor. Cybex strongly recommends that, to eliminate rocking, tipping or falling over due to incorrect usage and misuse, equipment be secured to a solid, level surface.
-
Page 6: Warning/Caution Decals
Cybex Plate Loaded 16120 Smith Press Owner’s Manual Warning/Caution Decals Warning decals indicate a potentially hazardous situation, which, if not avoided, could result in death or serious injury. Caution decals indicate a potentially hazardous situation, which, if not avoided, could result in minor or moderate injury. - Page 7 Cybex Plate Loaded 16120 Smith Press Owner’s Manual WARNING SERIOUS INJURY 3.25 R .19 COULD OCCUR IF 4 PLACES THESE PRECAUTIONS WARNING SAFETY ORANGE PMS152 ARE NOT OBSERVED BLACK TRIANGLE W/ ORANGE EXCLAMATION POINT, BLACK LETTERS 32 PT ARIAL BOLD 1.
-
Page 8: Regular Maintenance Activities
Cybex Plate Loaded 16120 Smith Press Owner’s Manual Regular Maintenance Activities Preventative maintenance activities must be performed to maintain normal operation of this equipment. Keeping a log sheet of all maintenance actions will assist you in staying current with all preventative maintenance activities. -
Page 9: Exercise
Cybex Plate Loaded 16120 Smith Press Owner’s Manual Exercise Intended Use The intended use of this equipment is to aid or improve general physical fitness and exercise. For Commercial use. Instructions Read and understand all instructions and warnings prior to using this machine. See Chapter 1, Safety in Owner’s Manual or consult with floor staff. - Page 10 Cybex Plate Loaded 16120 Smith Press Owner’s Manual Set Up Adjust bar to appropriate height for exercise. See Diagram A. Adjust bar stops to appropriate height for exercise. See Diagram B. Ensure stops are set properly at equal height. Load bar evenly with appropriate resistance. Unloaded bar weight = 15 pounds (7kg).
-
Page 11: Customer Service
Hours of phone service are Monday through Friday from 8:30 a.m. to 6:00 p.m Eastern Standard Time. For Cybex customers living in the USA, contact Cybex Customer Service at 888-462-9239. For Cybex customers living outside the USA, contact Cybex Customer Service at 508-533-4300 or fax 508-533-5183. Find information on the web at www.cybexintl.com... -
Page 12: Return Material Authorization (Rma)
Provide the model and serial number of your Cybex equipment. • At Cybex’s discretion, the technician may request that you return the problem part(s) to Cybex for • evaluation and repair or replacement. The technician will assign you a RMA number and will send you an ARS label. -
Page 13: Damaged Parts
Cybex Plate Loaded 16120 Smith Press Owner’s Manual Damaged Parts Materials damaged in shipment should not be returned for credit. Shipping damages are the responsibility of the carrier (UPS, Federal Express, trucking companies, etc.) Apparent Damage - Upon receipt of your shipment, check all items carefully. Any damage seen with a visual check must be noted on the freight bill and signed by the carrier’s agent. - Page 14 Cybex Plate Loaded 16120 Smith Press Owner’s Manual...
-
Page 15: Assembly
Cybex Plate Loaded 16120 Smith Press Owner’s Manual Assembly Tools Required 9/16” Socket wrench • 7/16” Wrench • 7/32” Allen wrench • 9/16” Wrench • 5/16” Allen wrench • 16120 Smith Press Total Weight and Size 380 lbs. inches - 84 W x 54 L x 84 H 173 kg cm - 213 W x 137 L x 213 H Three people will be required for this procedure. - Page 16 Cybex Plate Loaded 16120 Smith Press Owner’s Manual WARNING: Use extreme caution when removing Smith Press Assembly from pallet. Failure to do so could result in injury. Move to desired location and unpack. Keep all shipping packages near area of installation.
- Page 17 Cybex Plate Loaded 16120 Smith Press Owner’s Manual Assemble Frame With assistants hold frames in an upright position. • Carefully place foot pad (supplied with machine) on each foot of the frame. • Align front frame mount in place. •...
- Page 18 Cybex Plate Loaded 16120 Smith Press Owner’s Manual Install weight bar assembly. Carefully place weight bar on frame and secure in place by latching bar catch on hooks. • Verify each bar catch is hooked properly on the hook. •...
- Page 19 HHCS Securely anchor machine to the floor using the anchor holes provided in each machine. CAUTION: Cybex is not responsible for the actual anchoring of equipment. Consult with a professional contractor. WARNING: Use fasteners having a minimum of 500 lbs. tensile capacity (3/8’’ grade 2 bolts or better).
- Page 20 Cybex Plate Loaded 16120 Smith Press Owner’s Manual...
-
Page 21: Maintenance
Maintenance All preventive maintenance activities must be performed on a regular basis. Performing routine preventive maintenance actions can aid in providing safe, trouble-free operation of all Cybex Strength Systems equipment. Cybex is not responsible for performing regular inspection and maintenance actions for your machines. - Page 22 Cybex Plate Loaded 16120 Smith Press Owner’s Manual...
- Page 24 10 Trotter Drive Medway, MA 02053 508-533-4300 FAX 508-533-5183 • • www.cybexintl.com • techhelp@cybexintl.com...
