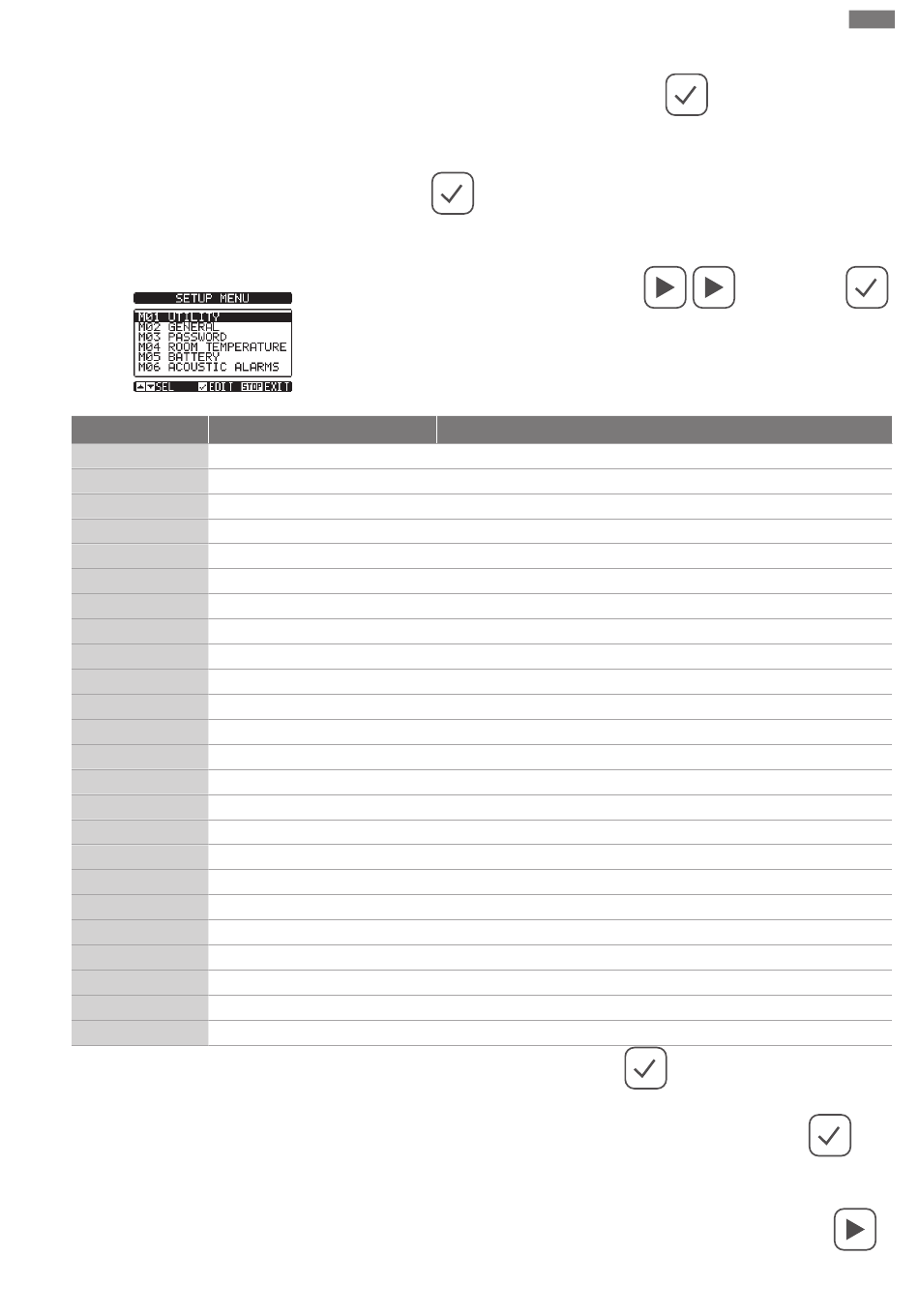

Fig. 12.6
Code MENU
UTILITIES
M01
GENERAL
M02
PASSWORD
M03
ROOM TEMPERATURE
M04
BATTERY
M05
AUDIBLE ALARMS
M06
ENGINE ROUTES
M07
OIL PRESSURE
M08
ENGINE TEMPERATURE 1
M09
ENGINE TEMPERATURE 2
M10
FUEL LEVEL
M11
ENGINE START
M12
AUTOMATIC TEST
M13
MAINTENANCE
M14
DIGITAL INPUTS
M15
DIGITAL OUTPUTS
M16
COMMUNICATION
M18
LIMITED THRESHOLDS
M19
CONTACTORS
M20
REMOTE ALARMS
M21
TIMER
M22
ANALOGUE INPUTS
M23
USER ALARMS
M24
ALARM TABLE
M25
Installation and operating instructions Wilo-SiFire FIRST
Switchgear of diesel pump
2. from the normal measurement display, press
3. select the settings icon. If it is not enabled (displayed in grey) it means that it is ne-
cessary to enter the unlock password.
4. Press to access the settings menu.
The following table with the selection of the setting sub-menus will be displayed. All
the parameters are grouped according to a criterion linked to their function.
ƒ
Select the desired menu using the buttons
.
ƒ
To exit and return to the measurement display press STOP.
The following table lists the available submenus:
DESCRIPTION
Language, brightness, display pages etc.
System characteristic data
Setting access codes
Measurement source, limit thresholds
Battery parameters
Internal buzzer and external siren control
RPM measurement source, limit thresholds
Measurement source, limit thresholds
Measurement source, limit thresholds
Measurement source, limit thresholds
Measurement source, limit thresholds
Motor start and stop mode
Period, duration, automatic test mode
Maintenance intervals
Programmable digital input functions
Programmable digital output functions
Address, format, protocol
Programmable limit thresholds on measures
Generic programmable counters
Alarm/Status indication on external relays
Programmable timers for PLC logic
Voltage/current/temperature inputs
Programmable alarms
Enabling and effect of alarms
ƒ
Select the sub-menu and press the key
meters are displayed with code, description, current value.
ƒ
If you want to change the value of a parameter, after selecting it press
If you have not entered the Advanced level password, you will not be able to access the
edit page and a denied access message will be displayed. If you are logged in, the edit
page will be displayed. When in edit mode, the value can be changed with the
to recall the main menu;
and confirm with
to display the parameters. All para-
