CODE COMMAND
Reset LIMx limits status
C06
Total engine hour counter reset
C07
Motor hour meter setting
C08
Startup counter reset
C09
Reset MAX/MIN
C10
Reset event list
C11
Reset parameters to default
C12
Save parameters to backup
C13
memory
Reload parameters from backup
C14
memory
I/O Forcing
C15
PLC program reset
C16
10

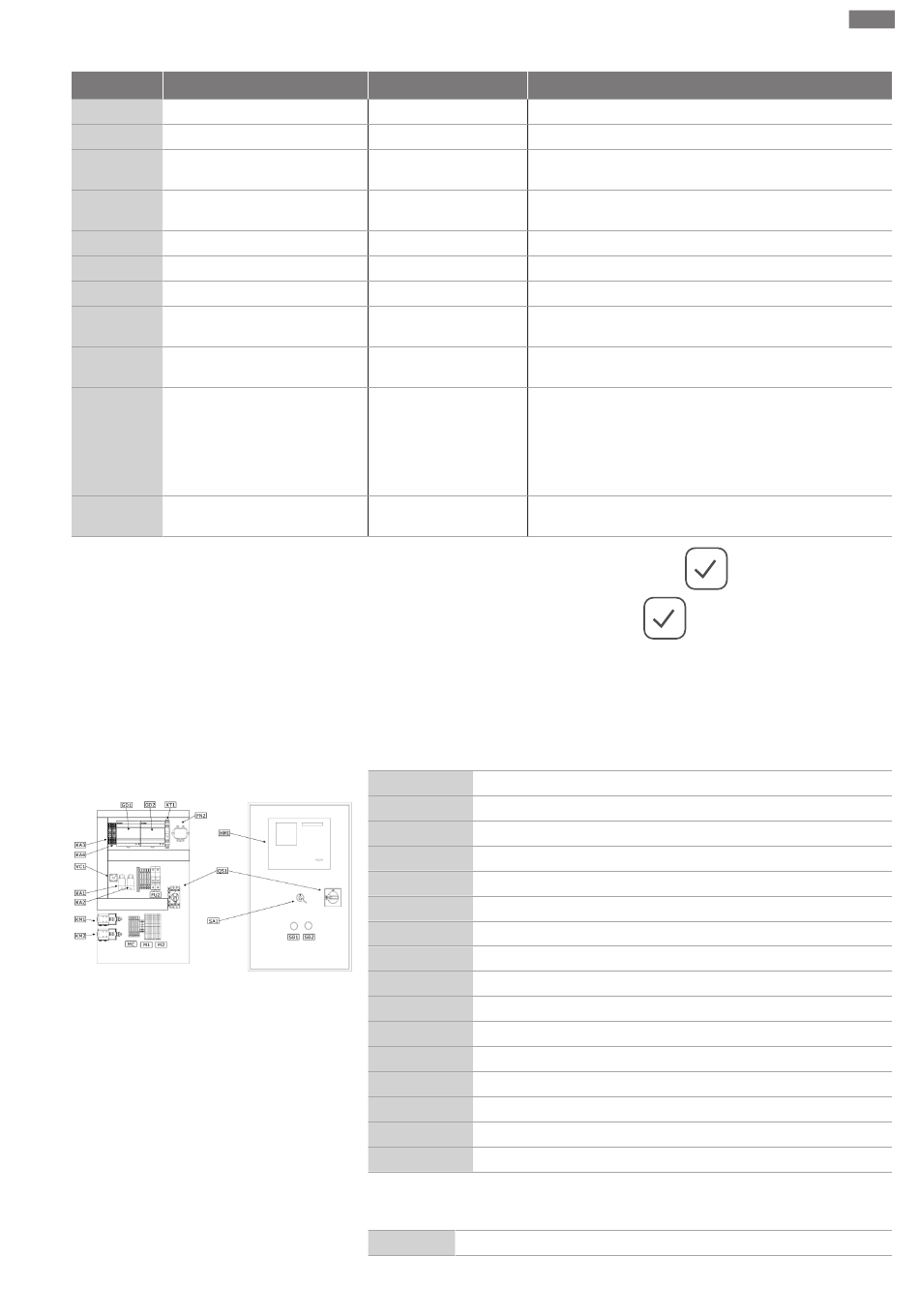

Switchgear of diesel pump

Fig. 12
10.1

Functions

10.1.1 Main screen
Fig. 12.2
Installation and operating instructions Wilo-SiFire FIRST
Switchgear of diesel pump
ACCESS DESCRIPTION
User Resets the status of the retention LIMx limits.
Advanced Resets the total hours counter of the electropump.
Advanced It allows to set the total hours counter of the electric pump
to a desired value.
Advanced Resets the start attempt counter and the percentage of
successful attempts
Advanced Resets the maximum and minimum values.
Advanced Resets the list of events history.
Advanced Resets all set-up menu parameters to factory setting
Advanced Copies the currently set parameters to a backup area for
future restoration.
Advanced Transfers the parameters saved in the backup memory to
the active settings memory.
Advanced Enables the test mode that allows you to manually energise
any output.
NOTICE:
In this mode, the responsibility for controlling the out-
puts is completely entrusted to the end-user.
Advanced Clears the program with PLC logic from the internal
memory
Once you have selected the desired command, press
ment will ask for confirmation. Pressing again
To cancel the execution of a selected command press STOP. To exit the command
menu press STOP.
Description
EMC filter
FN2
Fuses
FU2
Battery charger - Battery 1
GD1
Battery charger - Battery 2
GD2
Human Machine Interface
HMI
Auxiliary relays
KA1-4
Battery power contactor
KM1-2
Amperometric transformer
KT1
Clamps
M1, M2
Fuse clamps
MC
Main switch
QS1
Auto mode key switch
SA1
Manual emergency start button - Battery 1
SB1
Manual emergency start button - Battery 2
SB2
Diode bridge
VC1
Description
to execute it. The instru-
the command will be executed.
