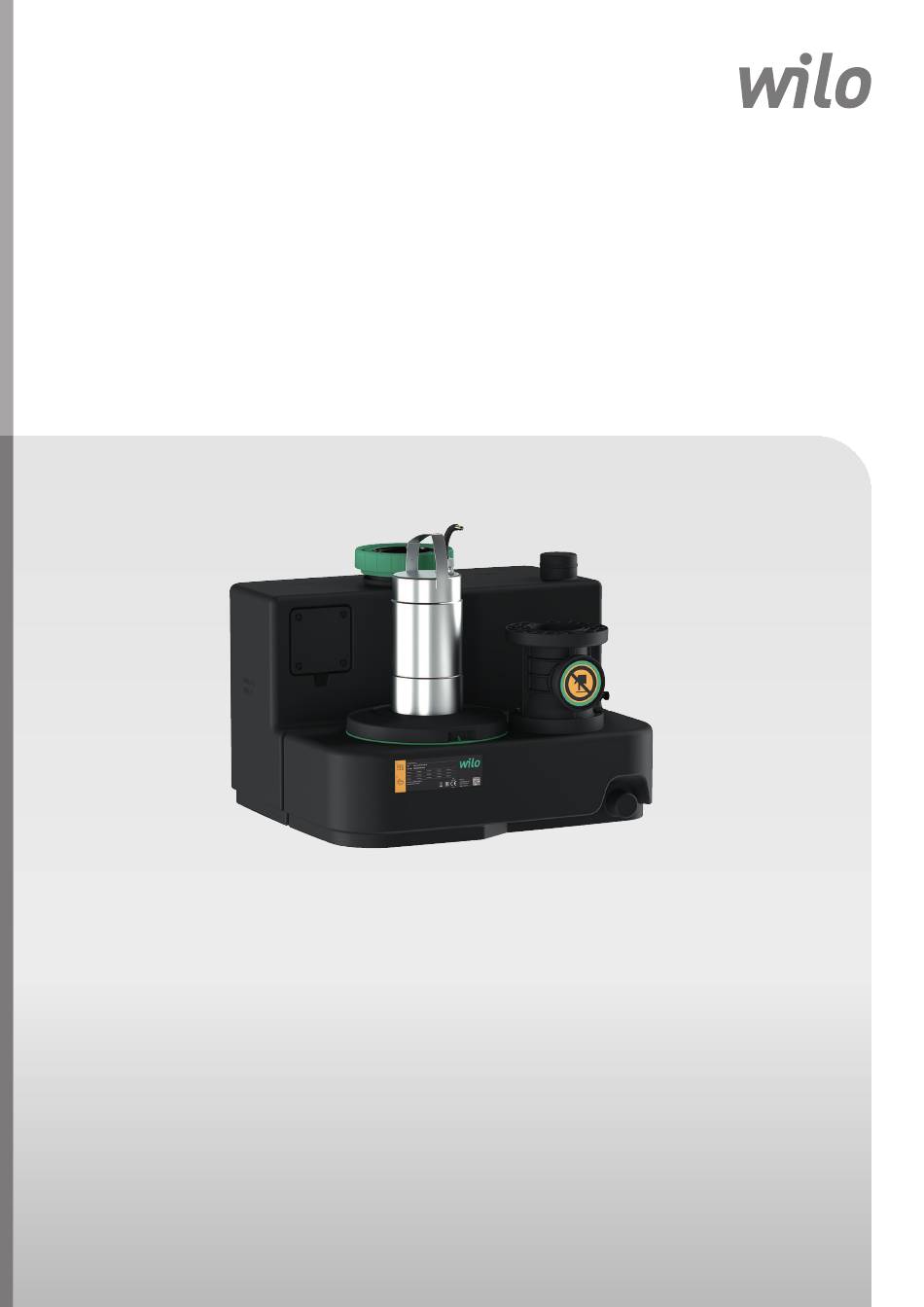

- Page 1 Pioneering for You Wilo-DrainLift SANI-M en Installation and operating instructions · 2552853 • Ed.01/2020-05...
-
Page 3: Table Of Contents
Operation ......................................... 21 Test run .......................................... 21 Follow-up time........................................ 22 Setting for venting screw .................................... 22 8 Operation.................................... 22 Application limits ...................................... 23 During operation ...................................... 23 Emergency operation ..................................... 23 9 Shut-down/dismantling................................. 24 Installation and operating instructions Wilo-DrainLift SANI-M... - Page 4 Clean and disinfect ...................................... 26 10 Maintenance and repair................................ 26 11 Spare parts.................................... 26 12 Disposal.................................... 26 12.1 Protective clothing ...................................... 26 12.2 Oils and lubricants...................................... 27 12.3 Information on the collection of used electrical and electronic products.................... 27 WILO SE 2020-05...
-
Page 5: General Information
Distribute any content. ƒ Use any content for competition purposes without authorisation. Wilo shall reserve the right to change the listed data without notice and shall not be li- able for technical inaccuracies and/or omissions. Subject to change Wilo shall reserve the rights to make technical changes to the product and individual components. - Page 6 Personal protective equipment: wear a safety helmet Personal protective equipment: wear safety footwear Personal protective equipment: wear protective gloves Personal protective equipment: wear face mask Personal protective equipment: wear safety goggles Working alone is prohibited! A second person must be present. Useful information WILO SE 2020-05...
-
Page 7: Personnel Qualifications
ƒ Transport Wear the following protective equipment: – Safety footwear – Safety helmet (when using lifting equipment) ƒ Locally applicable laws and regulations on work safety and accident prevention must be complied with. Installation and operating instructions Wilo-DrainLift SANI-M... -
Page 8: Installing/Dismantling
ƒ Wear the following protective equipment: – Sealed safety goggles – Safety gloves for protection against cuts – Safety footwear ƒ Disconnect device from the mains and secure it against being switched on again without authorisation. WILO SE 2020-05... -
Page 9: Operator Responsibilities
Toxic, aggressive and corrosive fluids, such as heavy metals, biocides, pesticides, acids, bases, salts, swimming-pool water ƒ Cleaning agents, disinfectants, dishwashing or laundry detergents in excess amounts, and such that have a disproportionately high degree of foam formation Installation and operating instructions Wilo-DrainLift SANI-M... -
Page 10: Product Description
An external alarm (horn, SMS via SmartHome connection) can be triggered via the potential-free contact. If the water drops below the high water level, the pump is deactivated once the follow- up time has elapsed. The alarm signal is acknowledged automatically. WILO SE 2020-05... -
Page 11: Operating Principle
1.5 m (5 ft) Cable length to plug DrainLift SANI-M.../1...: 4 m (13 ft) Cable length to switchgear DrainLift SANI-M.../4...: 10 m (33 ft) DrainLift SANI-M.../4C...: 10 m (33 ft) Single-phase current: Shockproof plug Plug Three-phase current: CEE plug Connections DN 80, PN 10 Pressure connection Installation and operating instructions Wilo-DrainLift SANI-M... -
Page 12: Scope Of Delivery
Flash light 230 V, 50 Hz ƒ Signal lamp 230 V, 50 Hz ƒ SmartHome radio transmitter for connectivity with the Wilo wibutler Transportation and storage Delivery After receiving the shipment, this must be checked immediately for defects (damage, completeness). Defects must be noted on the freight documentation! Furthermore, de- fects must be notified to the transport company or the manufacturer immediately on the day of receipt of shipment. -
Page 13: Storage
Fixation and buoyancy safeguards, connection of plastic pipes ƒ Installation types Floor-mounted installation in buildings ƒ Concealed floor installation in pump chambers outside of buildings ƒ Operator responsibilities Observe locally applicable accident prevention and safety regulations. Installation and operating instructions Wilo-DrainLift SANI-M... -
Page 14: Installation
Also adhere to the following points if the lifting unit is installed in a pump chamber: ƒ Toxic or asphyxiating gases may build up during work. Ensure adequate ventilation. Observe protective measures in accordance with work regulations (gas measure- ment, carry a gas detector with you). WILO SE 2020-05... - Page 15 Horizontal and flat installation surface! – Space for an additional clearance area of at least 60 cm (2 ft) provided! – Fixation with dowels possible. – Clean, free of coarse solids – – Frost-free – Well lit Installation and operating instructions Wilo-DrainLift SANI-M...
- Page 16 Pressure pipe installed correctly according to consulting documents and perpen- dicular to the pressure port. ‡ Assembly materials provided: 1x gate valve 1x connecting hose 4x pipe clamps 1. Install the gate valve on the pressure port. WILO SE 2020-05...
- Page 17 Lay the inlet pipe with a slope to the lifting unit so that it can drain automatically. ƒ The minimum connection height is 180 mm (7 in). ƒ All connections must be completely tight! ƒ Install gate valve in the inlet! Installation and operating instructions Wilo-DrainLift SANI-M...
- Page 18 Connection of a ventilation line is a specified requirement. Furthermore, ventilation is essential for correct function of the lifting unit. Observe the following points when connecting the ventilation line: ƒ Guide the ventilation line over the roof. ƒ All connections must be completely tight. WILO SE 2020-05...
-
Page 19: Electrical Connection
6.5.1 Fuse on mains side Circuit breaker The size and switching characteristics of the circuit breakers must conform to the rated current of the connected product. Observe local regulations. Installation and operating instructions Wilo-DrainLift SANI-M... - Page 20 NOTICE! If the inlet is lower than the switching point “Pump ON”, there is backflow into the inlet pipe! NOTICE! For the position of DIP switch 3, refer to the installation and operating in- structions for the switchgear! 6.5.4 Operation with frequency con- Operation on the frequency converter is not permitted. verter WILO SE 2020-05...
-
Page 21: Commissioning
5. Slowly fill the collection reservoir with water via the inspection opening with a hose. NOTICE! Malfunction! Do not hold water jet directly above the float switch! 6. Lifting unit is switched on and off using the level control. Installation and operating instructions Wilo-DrainLift SANI-M... -
Page 22: Follow-Up Time
Motor housing can become hot during operation. It may cause burns. Allow the mo- tor to cool down at ambient temperature after switching it off! ‡ Commissioning has been carried out. ‡ Test run has been completed successfully. ‡ The operation and functioning of the lifting unit are known. WILO SE 2020-05... -
Page 23: Application Limits
If the lifting unit completely fails, pump out the sewage using a diaphragm hand pump. 1. Close the gate valve in the inlet. 2. Close the gate valve in the pressure pipe. 3. Pump sewage into the pressure pipe using the diaphragm hand pump. Installation and operating instructions Wilo-DrainLift SANI-M... -
Page 24: Shut-Down/Dismantling
4. Close the gate valve in the pressure pipe. 5. Switch off the lifting unit. Pull the plug out of the socket. CAUTION! Secure the lifting unit against unau- thorised reactivation! ▶ The lifting unit is now out of operation. WILO SE 2020-05... -
Page 25: Removal
3. Remove connection to inlet. Pull the inlet pipe out of the inlet seal. 4. Remove connection from the pressure pipe. Remove the connecting hose. 5. Remove connection to ventilation connection. Pull ventilation pipe out of HT bushing. Installation and operating instructions Wilo-DrainLift SANI-M... -
Page 26: Clean And Disinfect
Spare parts are ordered via customer service. To avoid return queries and incorrect or- ders, the serial or article number must always be supplied. Subject to change without prior notice! Disposal 12.1 Protective clothing Used protective clothing must be disposed off in accordance with the locally applicable guidelines. WILO SE 2020-05... -
Page 27: Oils And Lubricants
Observe the locally applicable regulations! Please consult your local municipality, the nearest waste disposal site, or the dealer who sold the product to you for information on proper disposal. See www.wilo‑recycling.com for more information about recycling. Installation and operating instructions Wilo-DrainLift SANI-M... - Page 31 WILO Pompa Sistemleri Jakarta Timur, 13950 Sistemas Hidraulicos Lda. San. ve Tic. A.S¸ T +62 21 7247676 4475-330 Maia 34956 İstanbul citrawilo@cbn.net.id T +351 22 2080350 T +90 216 2509400 bombas@wilo.pt wilo@wilo.com.tr Further subsidiaries, representation and sales offices on www.wilo.com Oktober 2018...
- Page 32 WILO SE Nortkirchenstr. 100 44263 Dortmund Germany T +49 (0)231 4102-0 T +49 (0)231 4102-7363 wilo@wilo.com Pioneering for You www.wilo.com...
