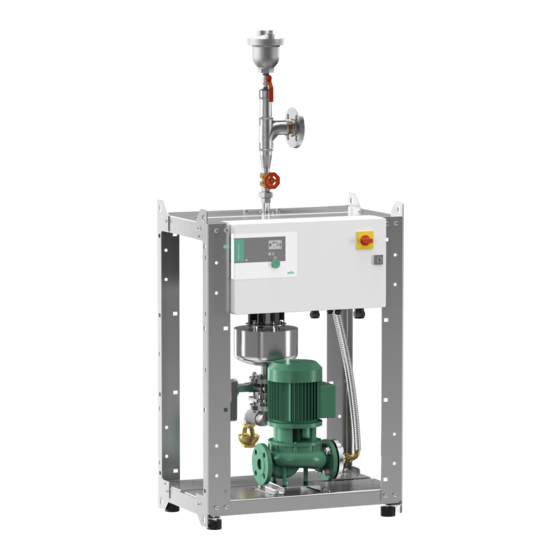

Wilo SiClean Comfort Series Installation And Operating Instructions Manual
Hide thumbs
Also See for SiClean Comfort Series:
- Installation and operating instructions manual (108 pages)
Table of Contents
Related Manuals for Wilo SiClean Comfort Series
Summary of Contents for Wilo SiClean Comfort Series

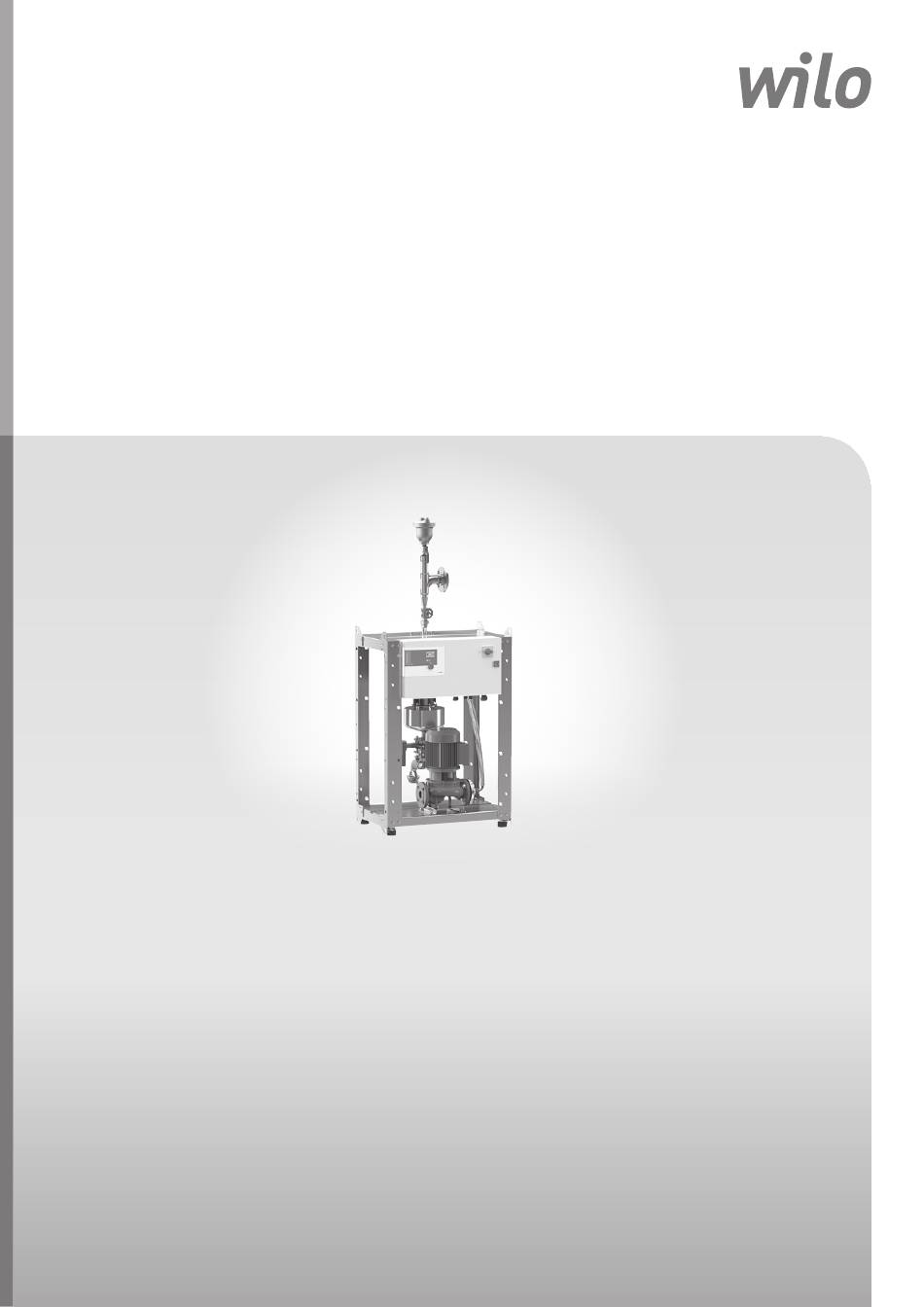

- Page 1 Pioneering for You Wilo-SiClean Comfort de Einbau- und Betriebsanleitung en Installation and operating instructions Notice de montage et de mise en service Inbouw- en bedieningsvoorschriften 4 196 355-Ed.01 / 2015-05-Wilo...
- Page 2 Fig. 1: Fig. 2:...
- Page 3 Fig. 3:...
- Page 4 Fig. 4:...
-
Page 5: Table Of Contents
General preparation and checking ........................46 Commissioning the installation ..........................46 Maintenance ............................46 Faults, causes and remedies .......................46 11.1 Display and acknowledgement of errors ......................47 11.2 Error history .................................47 11.3 Main faults, causes and remedies ........................48 Spare parts ............................49 Disposal ..............................49 WILO SE 05/2015... -
Page 6: General
There is a risk of damage to the product/unit. 'Caution' implies that damage to the product is likely if this information is disregarded. NOTE: Useful information on handling the product. It draws attention to possible problems. Installation and operating instructions Wilo-SiClean Comfort... -
Page 7: Personnel Qualifications
Work to the product/unit must only be carried out when at a standstill. It is mandatory that the procedure described in the installation and oper- ating instructions for shutting down the product/unit be complied with. WILO SE 05/2015... -
Page 8: Unauthorised Modification And Manufacture Of Spare Parts
• The product must not be exposed to temperatures outside the range between -10°C and +50°C. Wilo-SiClean Comfort is supplied on a pallet, it is protected from moisture and dust with a transparent plastic cover. Transport for installation/removal WARNING! Danger of personal injury! purposes Improper transport can lead to personal injury. -
Page 9: Product Information
When ordering spare parts, make sure to state all the information given on the pump and motor rating plates. Scope of delivery • Wilo-SiClean Comfort • Installation and operating instructions: Wilo-SiClean Comfort including SC switchgear description • Installation and operating instructions: Wilo-VeroLine-IPL... Description and function... -
Page 10: Function Of The Siclean Comfort System
A continuous process removes gas at the separator outlet. Iron oxides are converted into magnetite or black sludge and removed through the motorised drain valve. The process is fully automated and can be monitored via the switch- gear. Installation and operating instructions Wilo-SiClean Comfort... -
Page 11: Switchgear
0 °C to +40 °C Electrical safety Pollution degree: II Scope of delivery • Switchgear SC-Clean • Circuit diagram • Installation and operating instructions: Wilo-SiClean Comfort including SC switchgear description • Test protocol acc. EN60204-1 Options Options have to be ordered separately: Option... -
Page 12: Function And Operation
= “raise“). Function of collective run signal (SBM) In menu 5.5.1.0 the function of SBM can be selected between „Ready“ (switchgear is ready to run) and „Run“ (at least one pump is running). Installation and operating instructions Wilo-SiClean Comfort... - Page 13 Fig. 5: Rotary knob The display of information occurs as follows (Fig. 6): Pos. Description Pump and valve state or menu number Value Unit of the value Standard symbols Graphic symbols Fig. 6: Information display WILO SE 05/2015...
- Page 14 Pump status symbol: Pump available but switched Pump status symbol: Pump running Valve open Valve closed Flushing Opening and closing time of flushing valve Service Parameter Information Fault Fault acknowledgement Alarm settings Pump Pump 1 or valve 1 Installation and operating instructions Wilo-SiClean Comfort...
- Page 15 Time settings Control mode (only /day) Drive mode Control mode of the pump respective valve Stand-by Switchgear data Controller type, ID number, software/firmware Operating hours Operating hours pump 1 Starts Starts pump 1/valve 1 Starts valve 2 WILO SE 05/2015...
- Page 16 The menu structure of the switchgear consists of 4 levels. In the example shown in Fig.4, the navigation through menus and the change of parameters can be seen. A description of all menus can be found in the following table: Installation and operating instructions Wilo-SiClean Comfort...
- Page 17 Menu controller parameter – – 1.2.1.0 Menu of set points, adjustment of the – – value for the set point. 1.2.1.1 Adjustment for the number of 1... 24 cleanings per day. Only visible if con- trol mode is “/day”. WILO SE 05/2015...
- Page 18 Opening and closing time of valve 2 1…90…120 90 s (only visible in EXPERT menu) 2.0.0.0 Menu Communication – – 2.1.0.0 Display of currently activated field bus Modbus BACnet 3.0.0.0 Menu pump management – – 3.1.0.0 System management Drive On/Off Installation and operating instructions Wilo-SiClean Comfort...
- Page 19 1 and 2 OPEN 3.2.4.1 AUTO 4.0.0.0 Menu information – – 4.2.0.0 Call up operating hours – – 4.2.1.0 Display total operating hours of the – – system 4.2.2.0 Call up operating hours of the pumps – – WILO SE 05/2015...
- Page 20 Display total switching operations of – – valve 1 or 2 4.3.0.0 Menu system info – – 4.3.1.0 Display controller type 4.3.2.0 Display identification number as – – ticker 4.3.3.0 Software version – – Installation and operating instructions Wilo-SiClean Comfort...
- Page 21 5.1.1.0 Menu Modbus – – 5.1.1.1 Select baud rate 19.2 19,2 38,4 5.1.1.2 Adjustment, slave address 1 … 10 … 247 5.1.1.3 Select parity even even 5.1.1.4 Select number of stop bits 5.1.2.0 Menu BACnet – – WILO SE 05/2015...
- Page 22 5.5.2.0 Common fault message Fall Raise Selection of operating SSM relay: Raise Raise – relay on in case of error Fall – relay off in case of error 6.0.0.0 Menu error messages – – Installation and operating instructions Wilo-SiClean Comfort...
-
Page 23: Installation And Electrical Connection
Hydraulic connection The installation principle of SiClean Comfort, e.g. in a heating system, is shown in Fig. 2: 1 Wilo-SiClean Comfort 2 Pressure-maintaining system, e.g. Wilo-WEH/WEV (not available in all countries) 3 Heat generator 4 System inlet 5 System return •... -
Page 24: Electrical Connection
PE at the earth connector. External On/Off Using the dedicated terminals (see circuit diagram) the switchgear can be stopped by opening the contact (NC). External ON/OFF Contact closed Automatic ON Conatct open Automatic OFF Installation and operating instructions Wilo-SiClean Comfort... -
Page 25: Commissioning
Potential free contacts, max. load 250 V ~ / 1 A. Commissioning We recommend that the initial commissioning of SiClean Comfort is performed by the nearest Wilo customer service agent or ask your central customer service department. General preparation and checking •... -
Page 26: Display And Acknowledgement Of Errors
E80.1 Error pump Motor protec- Check pump tion tripped (see installa- (overcurrent or tion and opera- short circuit in tion supply line) instructions of the pump) and supply line connection Installation and operating instructions Wilo-SiClean Comfort... -
Page 27: Main Faults, Causes And Remedies
See installation and operating instructions of the switchgear. Wires disconnected Check all connections to the termi- nal block of the switchgear. If the fault cannot be remedied, please contact the trade or your near- est Wilo-After-sales Service or agent. WILO SE 05/2015... -
Page 28: Spare Parts
English Spare parts Spare parts must be ordered via a local specialist retailer and/or Wilo Customer Service. To avoid queries and incorrect orders, all data on the rating plate should be submitted with each order. CAUTION! Risk of material damage! Trouble-free pump operation can only be guaranteed when origi- nal spare parts are used. - Page 29 Division Pumps and Systems Person authorized to compile the technical file is: Quality Manager - PBU Systems Personne autorisée à constituer le dossier technique: WILO SALMSON FRANCE SAS 80 Bd de l'Industrie - BP 0527 F-53005 Laval Cedex Dortmund, 19.02.2015 WILO SE Nortkirchenstraße 100...
- Page 30 Kompatibbiltà elettromanjetika - Direttiva 2004/108/KE Elektromagnetna kompatibilnost - smjernica 2004/108/EZ Elektromagnetna kompatibilnost - direktiva 2004/108/EZ b'mod partikolari: primijenjene harmonizirane norme, posebno: primenjeni harmonizovani standardi, a posebno: ara l-pa na ta' qabel vidjeti prethodnu stranicu vidi prethodnu stranu WILO SE Nortkirchenstraße 100 44263 Dortmund Germany...
- Page 31 *DQJVHR %XVDQ Australia Burton Upon Trent 101300 Beijing :,/2 5RPDQLD VUO 9™[Mª T +82 51 950 8000 WILO Australia Pty Limited DE14 2WJ T +86 10 58041888 &RP &KLDMQD T +46 470 727600 ZLOR#ZLORFRNU Murrarrie, Queensland, T +44 1283 523000...
- Page 32 WILO SE Nortkirchenstraße 100 D-44263 Dortmund Germany T +49(0)231 4102-0 F +49(0)231 4102-7363 wilo@wilo.com Pioneering for You www.wilo.com...
