Installation under a worktop
➍
➌
❺
➋
– Your built-in furniture may need to be mod-
ified. If you do not have the manual skills
to do this, you should hire a professional
– Veneers or plastic coverings on the built-
in furniture require heat-resistant adhesive
(100 °C). If the adhesive and surfaces are
not heat-resistant, the covering may warp
and come loose.
– An intermediate shelf is required if a draw-
er is to be installed below the oven.
– The installation recess may not have a rear
panel, at the most it may have an add-on
edge measuring no more than 50 mm.
– The built-in cabinet can be equipped with
either ledges/rails or an intermediate shelf
with ventilation cut-out.
❻
➊
Installation
Installation in an upright cabinet
➌
❻
➎
➋

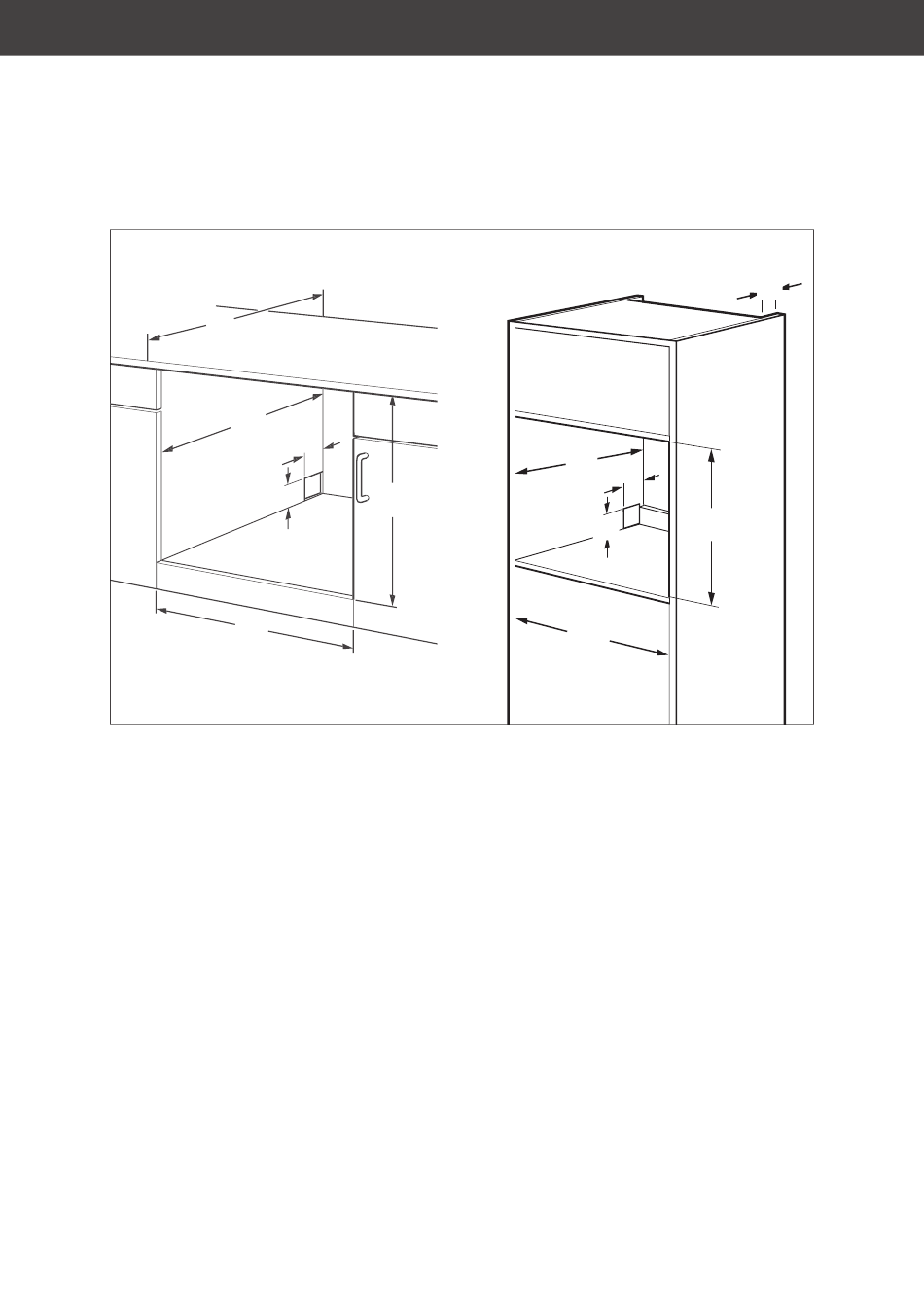

– The installation recess must have the fol-
lowing minimum dimensions
– Installation under a worktop
❶
min. 600 mm
➋
560–568 mm
❸
min. 550 mm
➍
min. 580 mm
❺ max. 50 mm
❻ max. 50 mm
– Installation in an upright cabinet
❶
min. 585 mm, max. 595 mm
➋
560–568 mm
➌ min. 585 mm (incl. ➐)
❺
max. 50 mm
❻ max. 50 mm
➐ min. 35 mm
