CONNECTING THE D-RGB LED STRIP

TESTING THE LOOP

To make sure the installation of EK components was successful, we
recommend you perform a 24-hour leak test.
When your loop is complete and filled with coolant, connect the
pump to a PSU outside of your system. Do not connect power to
any of the other components. Turn on the PSU and let the pump
run continuously.
Inspect all parts of the loop, and in case the coolant leaks, fix the issue
and repeat the testing process. To prevent possible damage, please
ensure that all hardware is dry before the system is powered on.

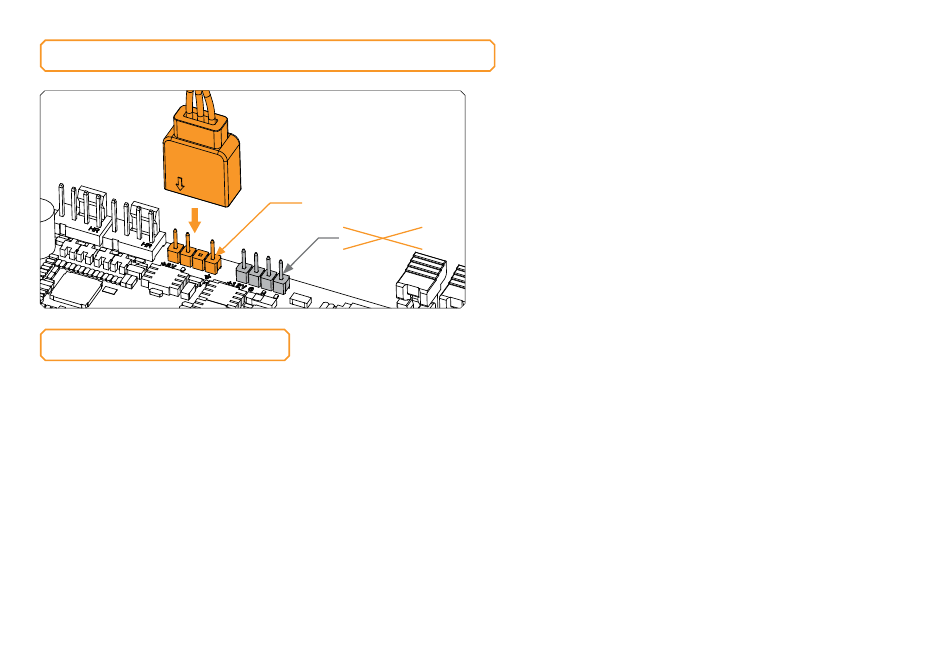

Plug the 3-pin connector of the distribution plate D-RGB LED light to
the D-RGB header on the motherboard. The LEDs will work if the pin
layout on the header is as follows: +5V, Data, Empty, Ground.
D-RGB Header
RGB Header
