EK-Quantum Reflection DK-O5F Left D-RGB Installation Manual page 5

UNC 6-32 x 30mm
SCREWS
STEP 2
UNC 6-32 x 5mm
SCREWS
FAN MOUNTING BRACKET
STEP 3
STEP 2

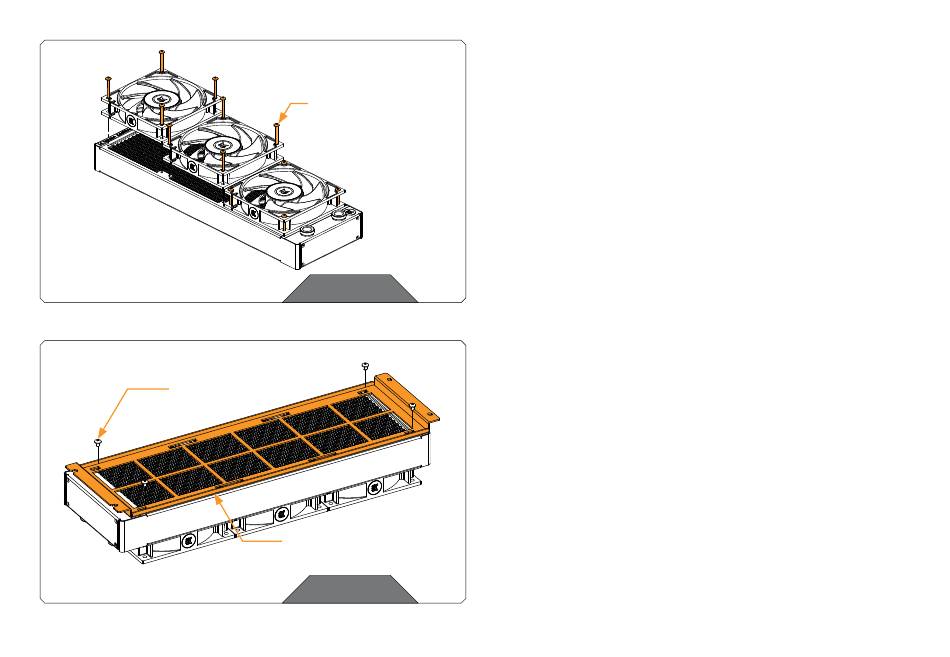

Use four (4) UNC 6-32 x 30mm screws for each fan to secure them to
the radiator. The fans should be placed on the same side as the ports.
STEP 3
Mount the fan bracket onto the other side of the radiator and secure it
with UNC 6-32 x 5mm screws that are supplied with the radiator. Pay
attention that slotted holes of the mounting bracket are underneath
the ports, as shown in the picture.
- 5 -
