EK-Quantum Reflection DK-O5F Left D-RGB Installation Manual page 8

RIGHT
SIDE
M4x35 DIN7991
SCREWS
STOCK SCREWS
LEFT
SIDE
STEP 7
STEP 8
- 8 -
STEP 7

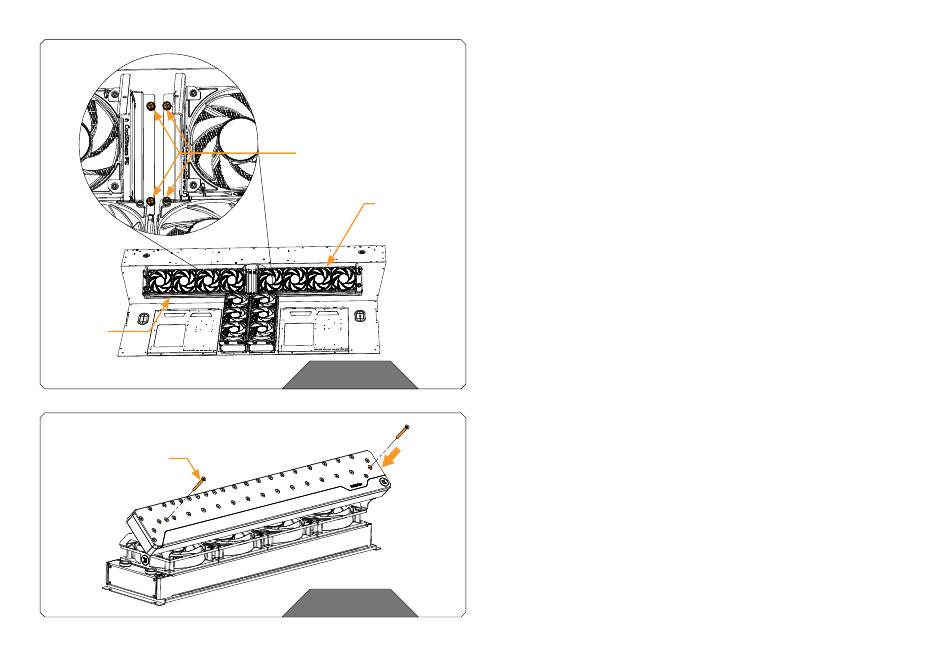

The two (2) locating screws should be installed at the sides of the desk
in order for the radiator to be fitted with ports at the side. Carefully
place the radiator inside and secure it with the two (2) thumb screws
at the center.
STEP 8
Place the distribution plate on top of the mounting brackets and
secure it with the two (2) enclosed M4 X 35 DIN7991 screws. Use the
two (2) open holes, as shown in the image.
