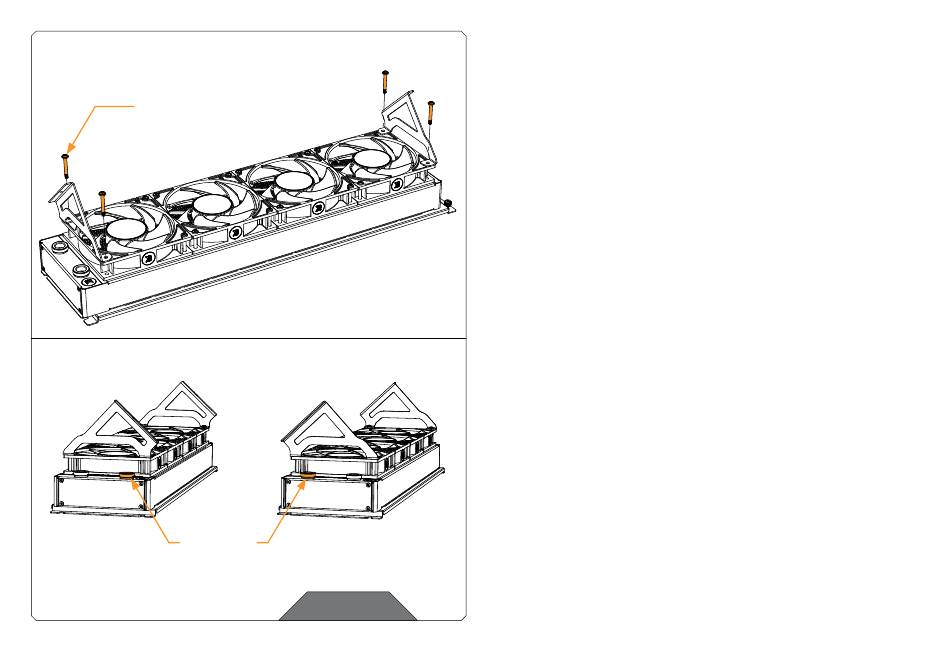

STEP 6
Four (4) 25mm thick fans need to be used on the PE480 radiator to
ensure perfect alignment. Secure the fans and mounting brackets
using the UNC 6-32 x 30mm screws. The mounting brackets are
positioned at the end of each radiator, with the folded element facing
UNC 6-32 x 30mm SCREWS
outwards. The radiators ports should be at the side of the desk, not
the center.
LEFT SIDE
RIGHT SIDE
RADIATOR
PORTS
STEP 6
- 7 -
