EK-Quantum
Vector Strix RTX 3080/3080Ti/3090 Active Backplate
USER GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Vector Strix RTX 3080 and is the answer not in the manual?

Questions and answers

Related Manuals for EK-Quantum Vector Strix RTX 3080

Summary of Contents for EK-Quantum Vector Strix RTX 3080

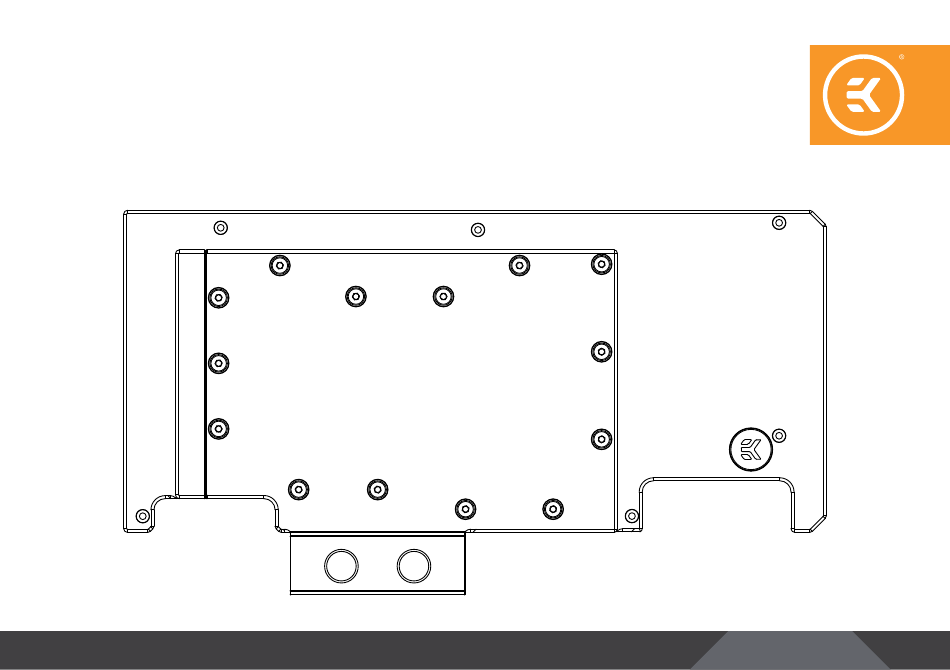

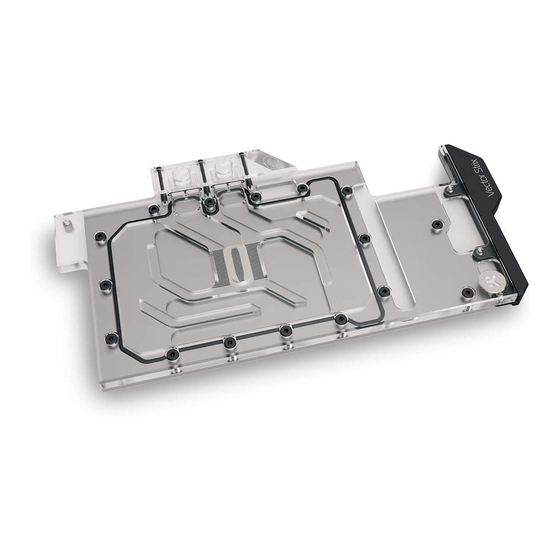

  • Page 1 EK-Quantum Vector Strix RTX 3080/3080Ti/3090 Active Backplate USER GUIDE...
  • Page 2 This product is intended for installation by expert users only. Please Before you start using this product, please follow these basic guidelines: consult with a qualified technician. Improper installation may result in damage to your equipment. EK assumes no liability whatsoever, Carefully read the manual before beginning with the expressed or implied, for the use of this product or its installation.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS BOX CONTENTS ACTIVE BACKPLATE DIMENSIONS REQUIRED TOOLS ACTIVE BACKPLATE SPECIFICATIONS AND MAIN PARTS INSTALLING THE ACTIVE BACKPLATE PREPARING THE GRAPHICS CARD CUTTING AND PLACING THERMAL PADS REMOVING THE TERMINAL METAL PLATE ATTACHING THE ACTIVE BACKPLATE INSTALLING FITTINGS AND TUBING CONNECTING THE D-RGB LED STRIP TESTING THE LOOP SUPPORT AND SERVICE...

  • Page 4: Box Contents

    M2.5x8 AX1 Screw (8 pcs) M2.5x8 AX1 Screw - Nickel (8 pcs) EK-Quantum Vector Strix RTX 3080/3080Ti/3090 Active Backplate Allen Key 2.5 mm (1 pc) Thermal PAD F 1.0 mm - (120x16mm) (3 pcs) Thermal Pad G 1.5 mm - (120x24mm) (1 pc) Thermal PAD F 2.0 mm - (120x16mm) (5 pcs)

  • Page 5: Active Backplate Dimensions

    ACTIVE BACKPLATE DIMENSIONS 165 mm 194 mm 281 mm REQUIRED TOOLS Phillips Head Screwdriver Scissors - 5 -...

  • Page 6: Active Backplate Specifications And Main Parts

    ACTIVE BACKPLATE SPECIFICATIONS AND MAIN PARTS Technical Specifications: Dimensions (L x H x W): 281 x 154 x 33.3 mm D-RGB (Addressable RGB) Cable Length: 500 mm D-RGB LED Count: 9(Plexi Version) D-RGB Connector: Standard 3-Pin (+5V, Data, Blocked, Ground) M4 x 27 DIN7984 SCREW TERMINAL O-RING 15 x 1 mm M4 x 8 DIN7984 SCREW...

  • Page 7: Installing The Active Backplate

    INSTALLING THE ACTIVE BACKPLATE STEP 1 PREPARING THE GRAPHICS CARD First, complete the installation of your EK-Quantum Vector Strix RTX 3080/3080Ti/3090 water block according to its installation manual. In case the water block is already installed, remove the six (6) AX1 screws and their PVC washers, as shown in the image.
  • Page 8 EK-Quantum Vector Strix RTX 3080/3080Ti/3090 Active Backplate comes with its own terminal, meaning the original terminal, along with two (2) 15 x 1 O-rings, on the EK-Quantum Vector Strix M4 x 27 DIN7984 3080/3080Ti/3090 water block has to be removed.

  • Page 9: Cutting And Placing Thermal Pads

    STEP 2 Thermal PAD F 1.0 mm (120 x 16 mm) CUTTING AND PLACING THERMAL PADS Your backplate comes with thermal pads that have to be cut into smaller pieces to cover all the VRM components. EK made sure to 120 mm 1 mm provide you with more than an adequate quantity of thermal pads to...
  • Page 10 STEP 3 3080/3080Ti Version Once cut to size, thermal pads should be placed on the backplate/ PCB, as illustrated below. G1.5 +F1 First, place the thermal pads on to the PCB as illustatrated. F1+F2 F1+F2 F1+F2 Thermal Pad F 1 mm Thermal Pad F 1 mm + Thermal Pad F 2.0 mm F1+F2...
  • Page 11 First, place the thermal pads on to the PCB as illustatrated. 3090 Version G1.5 G1.5 G1.5 Thermal Pad F 1 mm Thermal Pad G 1.5 mm G1.5 Thermal Pad F 2.0 mm After placing the thermal pads on to the PCB, few more needs to be 3090 Version placed on to the Backplate, as illustrated.

  • Page 12: Removing The Terminal Metal Plate

    STEP 4 REMOVING THE TERMINAL METAL PLATE The Metal plate attached on the Terminal is meant as a precaution, TERMINAL METAL PLATE to secure the two O-rings to prevent them from falling out of their sockets during transport and handling. Before the installation of the Active Backplate, this metal plate has to be removed.
  • Page 13 Place the active backplate on the PCB and make sure all holes are aligned. Position an M2.5 x 8 AX1 screw into each of the six (6) mounting holes (as shown in the image) and tighten them evenly with a Phillips head screwdriver. M2.5 x 8 AX1 To avoid using excessive force, you can easily loosen up the three (3) M4 x 27 7984DIN screws pre-installed on the terminal, but be careful that two (2) 15 x...

  • Page 14: Installing Fittings And Tubing

    The pre-mounted terminal is positioned for the optimal flow in the G1/4 EK-Quantum Vector Strix RTX 3080/3080Ti/3090 water block and in the EK-Quantum Vector Strix RTX 3080/3080Ti/3090 Active Backplate. The terminal can be shifted for 180 degrees but by using it so, the inlet and outlet ports are changed.

  • Page 15: Testing The Loop

    TESTING THE LOOP To ensure the installation of EK components was successful, we recommend you perform a 24-hour leak test. When your loop is complete and filled with coolant, connect the pump to a PSU outside your system. Do not connect power to any of the other components.

  • Page 16: Support And Service

    SUPPORT AND SERVICE In case you need assistance, please contact: https://www.ekwb.com/customer-support/ EKWB d.o.o. Pod lipami 18 1218 Komenda Slovenia - EU SOCIAL MEDIA EKWaterBlocks @EKWaterBlocks ekwaterblocks EKWBofficial ekwaterblocks...
