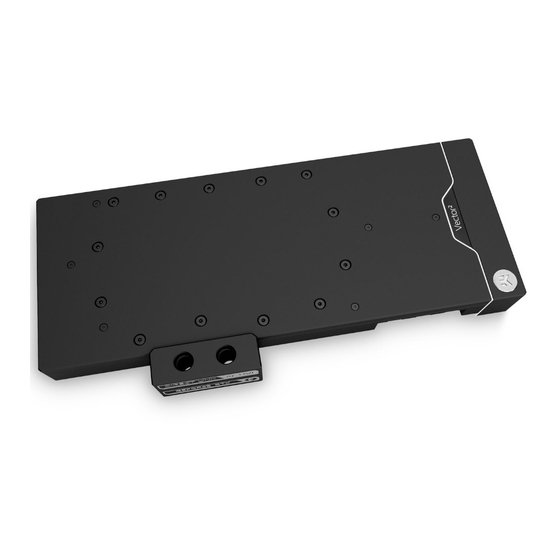

EK-Quantum Vector2 Trio RTX 3070 Ti D-RGB Quick Start Manual
Gpu water block
Hide thumbs
Also See for Vector2 Trio RTX 3070 Ti D-RGB:
- User manual (23 pages) ,
- Manual (21 pages) ,
- User manual (16 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for EK-Quantum Vector2 Trio RTX 3070 Ti D-RGB
Summary of Contents for EK-Quantum Vector2 Trio RTX 3070 Ti D-RGB
- Page 1 EK-Quantum Vector² Trio RTX 3070 Ti D-RGB GPU WATER BLOCK USER GUIDE...
- Page 2 Please note the installation of the product is intended to be undertaken by an adequately trained and experienced person. You are installing the product at your own risk. If you are not properly trained or experienced or feel unsure about the installation procedure, please refrain from installing the product yourself and contact our tech support for assistance.
-
Page 3: Table Of Contents
TABLE OF CONTENTS BOX CONTENTS WATER BLOCK DIMENSIONS TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS NICKEL PLEXI PREPARING THE GRAPHICS CARD REMOVING THE STOCK COOLER PREPARING THE WATER BLOCK FOR INSTALLATION CUTTING AND PLACING THERMAL PADS APPLYING THERMAL COMPOUND ATTACHING THE WATER BLOCK PREPARING THE BACKPLATE ATTACHING THE BACKPLATE INSERTING THE GRAPHICS CARD INTO THE CHASSIS... -
Page 4: Box Contents
BOX CONTENTS EAN: 104910 M2.5x4 AX1 Screw (13 pcs) M2.5x8 AX1 Screw (1 pc) EK-Quantum Vector Trio RTX 3070 Ti D-RGB Polyamid Washer M2.5 0.5mm (13 pcs) Standoff Ø4.5/2.5 (1 pc) EK-Loop Multi Allen Key (1 pc) Allen Key 2 mm (1 pc) -
Page 5: Water Block Dimensions
WATER BLOCK DIMENSIONS 301 mm 205 mm 177 mm 27 mm - 5 -... -
Page 6: Technical Specifications And Water Block Parts
TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS NICKEL PLEXI - Dimensions: (LxHxW): 301 x 155 x 27 mm - D-RGB cable length: 50 cm - D-RGB connector 3-pin 5V digital LED header (Pinout: +5V | Data | Blocked | Ground) Position Description Quantity 104376... -
Page 7: Preparing The Graphics Card
Do not forget to unplug all the LED and fan connectors. Pay attention to the following steps in order to install the EK-Quantum Vector2 Trio RTX 3070 Ti water block onto the graphics card. PREPARING THE WATER BLOCK FOR INSTALLATION... -
Page 8: Cutting And Placing Thermal Pads
CUTTING AND PLACING THERMAL PADS Your EK-Quantum Vector TRIO RTX 3070 Ti D-RGB block comes Thermal Pad F – 1.0 mm (120 x 16 mm) with Thermal Pads that have to be cut into smaller pieces to cover all the VRM components. EK made sure to provide you with more than an adequate quantity of Thermal Pads to complete this Step. -
Page 9: Applying Thermal Compound
APPLYING THERMAL COMPOUND STEP 1 Apply the enclosed EK-TIM Ectotherm thermal grease (thermal compound) on the GPU heat spreader – IHS – as shown in the image. The layer of the thermal compound must be thin and even over the entire surface of the IHS. The excessive or uneven application of thermal grease may lead to poor performance! For this step, you will need:... - Page 10 STEP 2 Use six (6) M2.5 x 4 AX1 Screws and PVC washers to tighten the M2.5 x 4 AX1 SCREW PCB on the water block. Tighten the screws evenly using the M2.5 PVC WASHER Phillips head screwdriver. EK recommends you start tightening the screws around the GPU core first, and then continuing outward to prevent damage to the GPU.
-
Page 11: Preparing The Backplate
PREPARING THE BACKPLATE STEP 1 Thermal Pad F – 1.0 mm (120 x 16 mm) After attaching the water block, a few more thermal pads need to be cut into smaller pieces to cover all the necessary components. EK made sure to provide you with more than an adequate quantity of 1 mm 120 mm thermal pads to complete this step. -
Page 12: Attaching The Backplate
ATTACHING THE BACKPLATE STEP 1 Place the backplate with six (6) M2.5 x 8 AX1 Screws and Standoffs BACKPLATE onto the PCB. Make sure all the holes are aligned. For this step, you will need: Phillips Head Screwdriver STEP 1 INSERTING THE GRAPHICS CARD INTO THE CHASSIS Carefully lift your graphics card with the installed water block and insert it into your PC’s motherboard PCI Express expansion slot. -
Page 13: Fittings And Tubing
FITTINGS AND TUBING STEP 1 Screw-in two (2) G1/4 threaded male fittings. Attach the liquid cooling tubes and connect the water block to the cooling loop. Do not forget to plug the remaining two openings using the enclosed EK-Plug G1/4 or its equivalent. EK- PLUG G1/4 EK recommends using EK fittings with all EK water blocks. -
Page 14: Connecting The D-Rgb Led Strip
CONNECTING THE D-RGB LED STRIP STEP 1 Plug the 3-pin connector of the distribution plate D-RGB LED light to the D-RGB HEADER on the motherboard. The LED will work if the pin layout on the header is as follows: +5V, Digital, Empty, Ground. -
Page 15: Warranty
WARRANTY Our products are warranted against defects of materials and quality for a period of 24 months, starting with the date of delivery to the end-user. During this period, products will be repaired or have parts replaced at our discretion, provided that 1) the product is returned to the agent from whom it was purchased;... -
Page 16: Support And Service
SUPPORT AND SERVICE In case you need assistance or wish to order spare parts or a new mounting mechanism, please contact: https://www.ekwb.com/customer-support/ For spare parts orders, refer to the page with “TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS” where you can find the EAN number of each part you might need.
