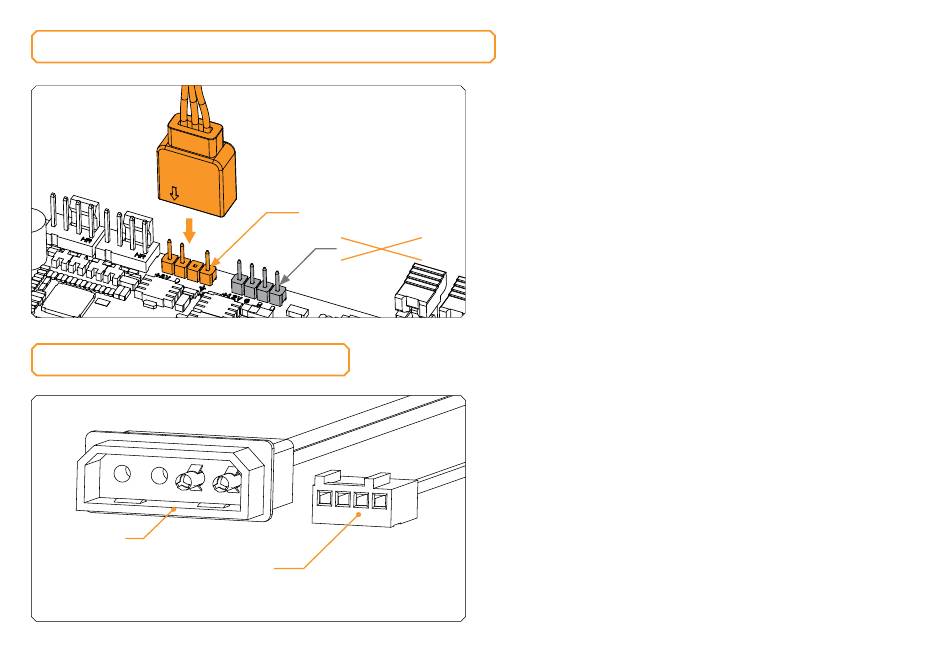

CONNECTING THE D-RGB LED STRIP
CONNECTING THE PUMP
4-pin molex
connector
4-pin PWM fan
connector
D-RGB Header
RGB Header
- 11 -
Plug the 3-pin connector of the distribution plate D-RGB LED light
to the D-RGB HEADER on the motherboard. The LED will work if the
pin layout on the header is as follows: +5V, Digital, Empty, Ground.
CONNECTING THE PUMP – MOLEX
CONNECTOR
The EK-D5 PWM pump has two connectors.
1. MOLEX Connector: It must be connected directly to your PSU at
all times as it is used to power the pump.
2. 4-pin PWM fan: It can be connected to your motherboard's
CPU_ Fan or designated water pump header. It can also be
connected to a controller. This cable is used to control and report
the rotational speed of the pump. If it's not connected, the pump
will run at maximum speed (100% PWM).
