EK-Quantum Reflection DK-O5F Left D-RGB Installation Manual page 6

360mm RADIATORS
WITH FANS
STOCK SCREWS
STEP 4
UNC 6-32 x 5mm
SCREWS
STEP 5

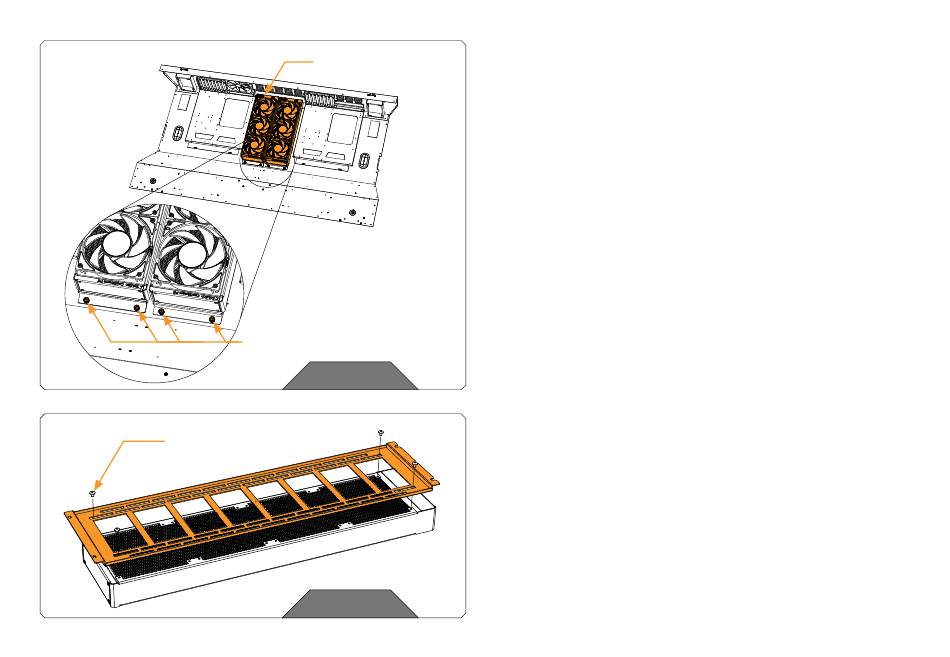

STEP 4
The two (2) locating screws should be installed at the rear end of
the desk, allowing the radiator to be fitted with the ports at the rear.
Carefully place the radiator inside and secure it with the two (2) thumb
screws at the front.
STEP 5
Install the 480mm mounting bracket to the back of the PE480
radiator and secure it with UNC 6-32 x 5mm screws. Pay attention
that slotted holes of the mounting bracket are underneath the ports,
as shown in the picture.
- 6 -
