• How to make modular cable
The recommended type of cable is a 2-pair twisted cable. The following is an easy method of
making the cable using parallel wires.

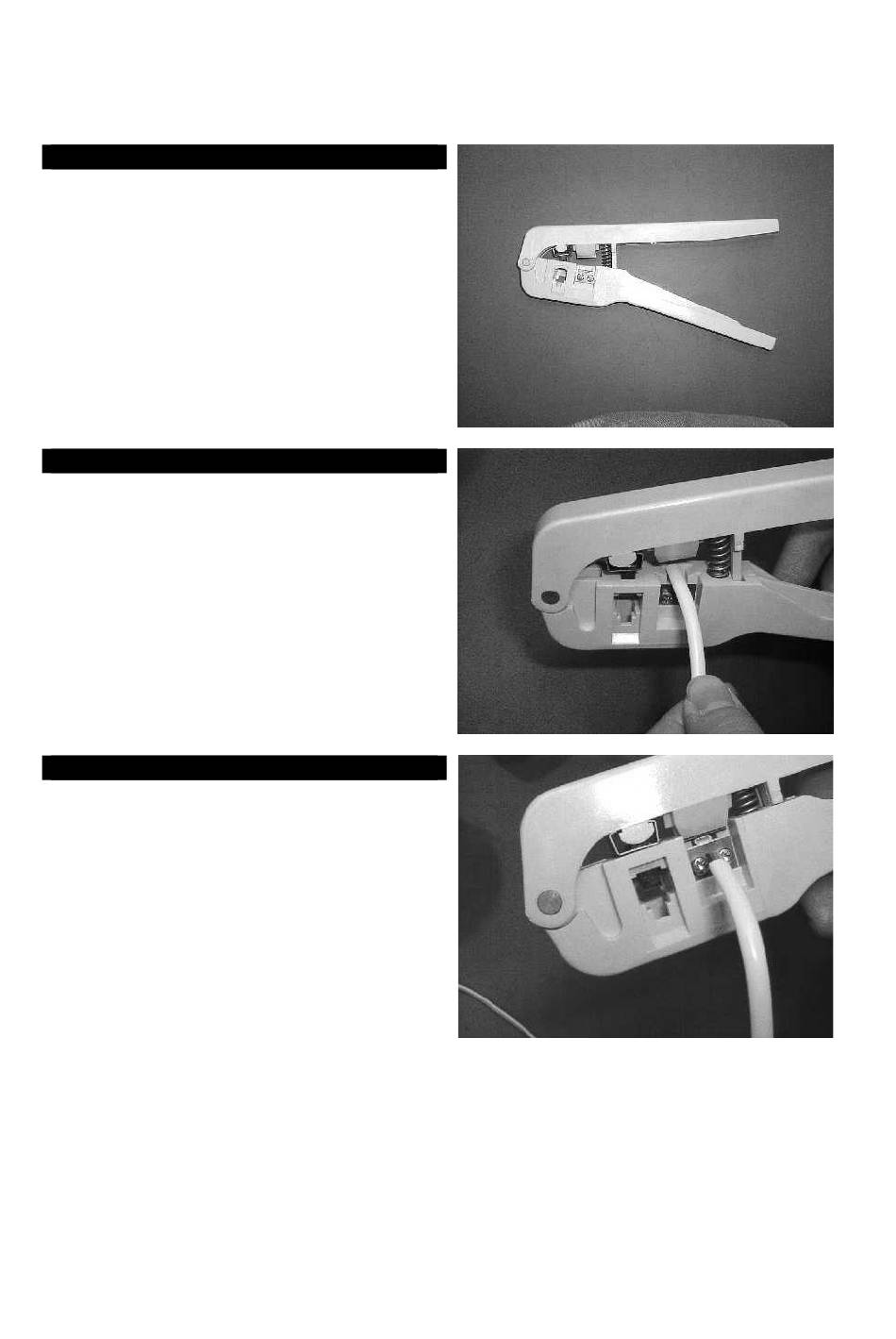

How to make modular cable (Example) Parallel wire
CAB-①
Use a tool (for 6-pole, 4-core or 6-pole, 6-core
modular connector) that is commercially available
from connector makers.
Prepare parallel wires for 6-pole, 4-core or 6-pole,
6-core modular connector.
CAB-②
First, verify that the cut surface of the wire is
perpendicular to the cable.
If the cut surface is oblique, the wire will not reach
the pressure-connected
connector is inserted, resulting in poor contact.
Most tools have a cable covering stripper.
Just applying the cable to the covering stripper of
the jig sets the length of the covering stripper.
CAB-③
Grip the handles in this condition and fit the cutter
teeth with the covering.
Pull out the electric wire in this condition, with the
handles gripped.
electrode when the
