Layout and mode of operation
→
2.1
Layout of the freeze-dryer
→
2.1.1
Functional and operating elements
1
Ice condenser
chamber
2
LSCplus user
interface (see
chapter 6.5.1 -
"User interface")
3
Mains power switch
4
Pipe connection of the
vacuum sensor
5
Pipe connection of the
vacuum pump (behind
the cover plate)
6
Ice condenser
Version 03/2018, Rev. 1.5 of 09/03/2020 • sb-dc
Translation of the original operating manual

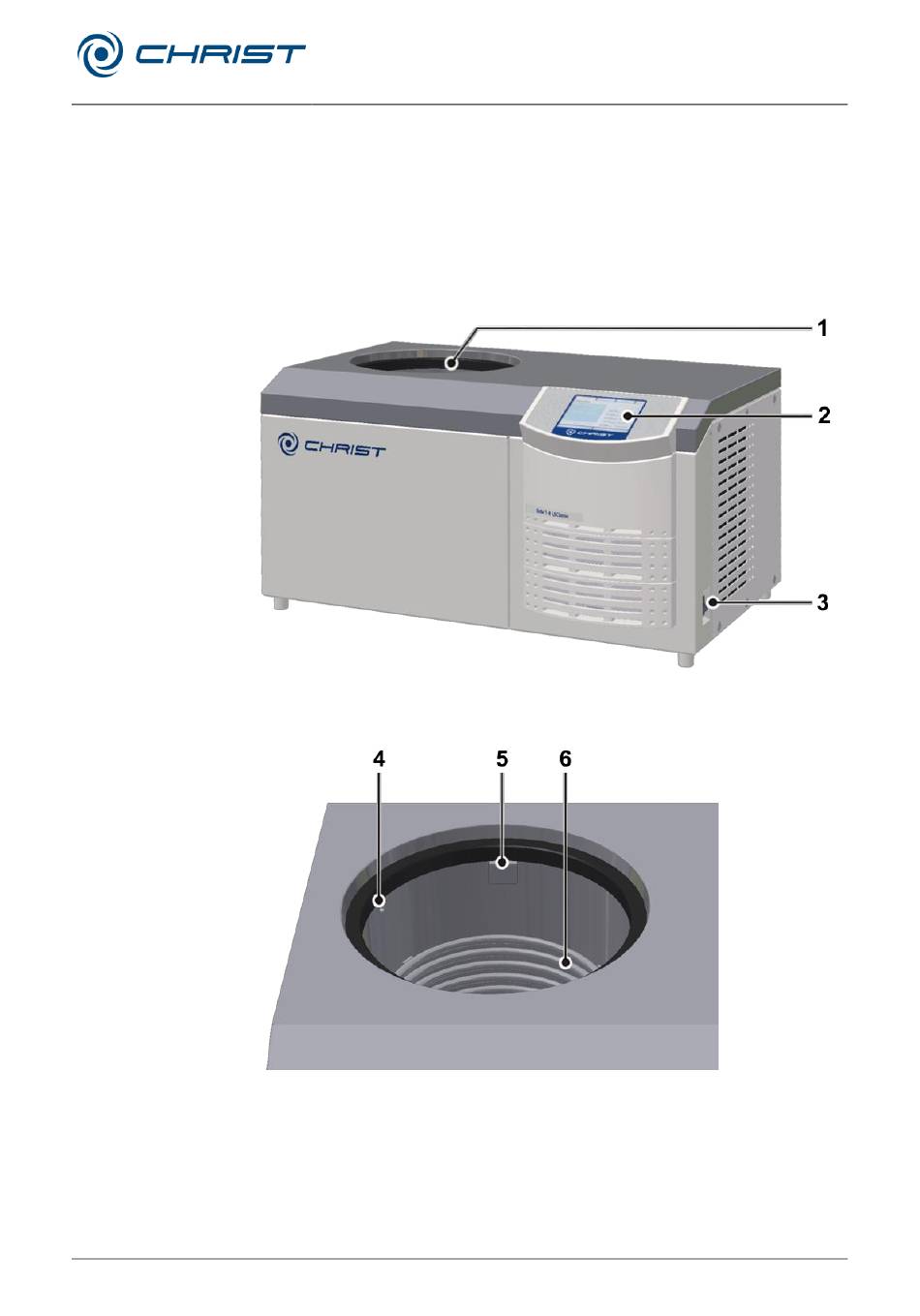

Fig. 1: Total view of the freeze-dryer
Fig. 2: Ice condenser chamber
Freeze-dryer Beta 1-8 LSCbasic
Freeze-dryer Beta 2-8 LSCbasic
2 Layout and mode of operation
