Switch the unit off by actuating the mains power switch.
•
Take the vacuum sensor out of its original packaging and fasten it to the
connector with a bow-shaped connecting piece, two clamping rings
(DIN16KF) and two centring rings (included in the scope of supply).
•
Plug the connector to the connection socket and hand-tighten the
screws on the connector.
It is absolutely essential to comply with the manufacturer's instructions in
the separate operating manual of the vacuum sensor!
Thyracont VCP63 (Pirani)

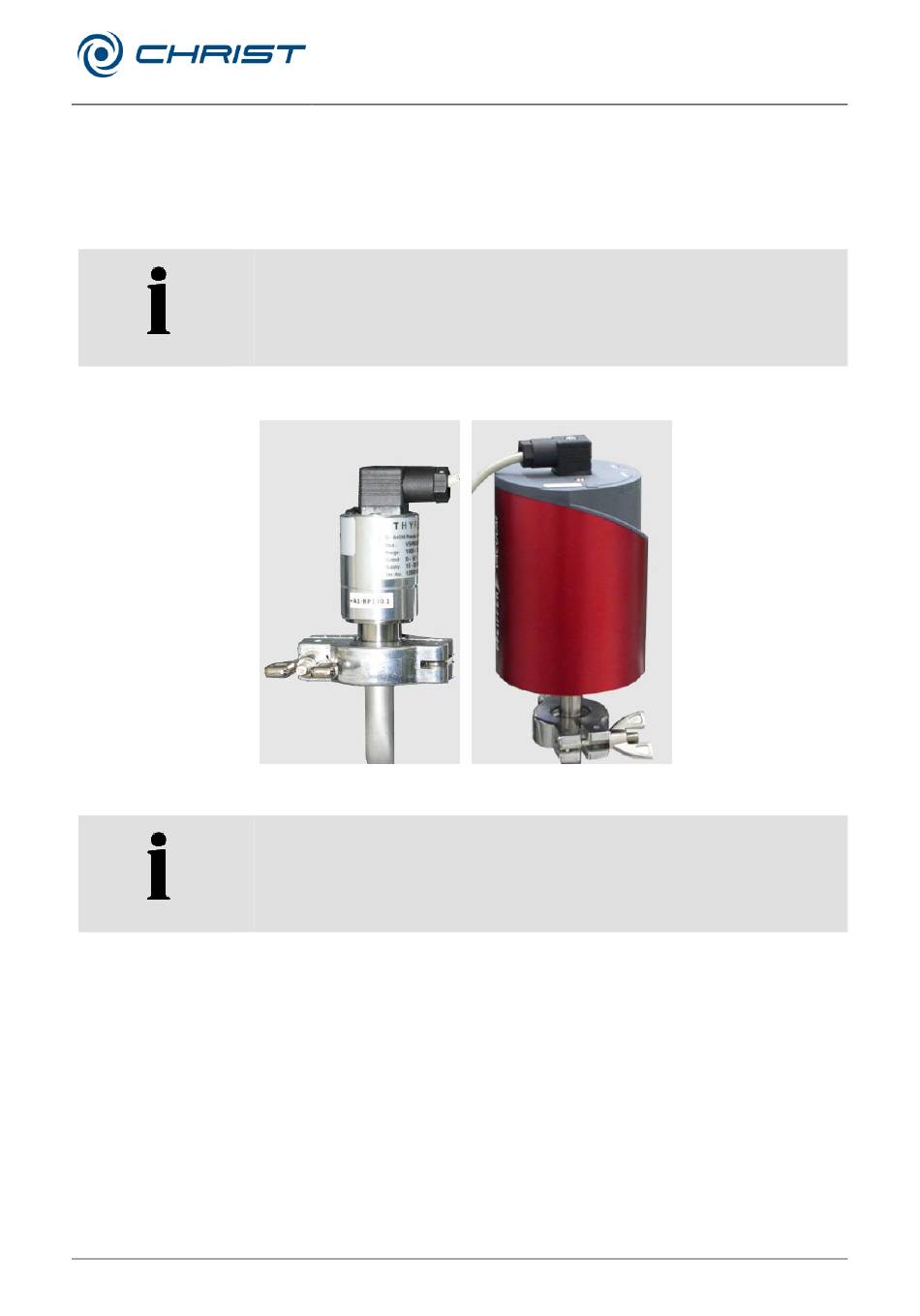

Fig. 12: Vacuum sensors of different manufacturers
The vacuum sensor comes supplied in a calibrated state.
After the freeze-dryer has been switched on, the vacuum sensor needs
several minutes until it is ready for operation.
Freeze-dryer Beta 1-8 LSCbasic
Freeze-dryer Beta 2-8 LSCbasic
5 Set-up and connection
Pfeiffer CMR 363 (capacitive)
