Brief operating instructions

1 Ice condenser
chamberFehler!
Textmarke nicht
definiert.
2 LSCplus user
interface
3 Mains power switch
4 Vacuum sensor
5 Pipe connection of the
vacuum pump (behind
the cover plate)
6 Ice condenser
86 / 107
Functional and operating elements:

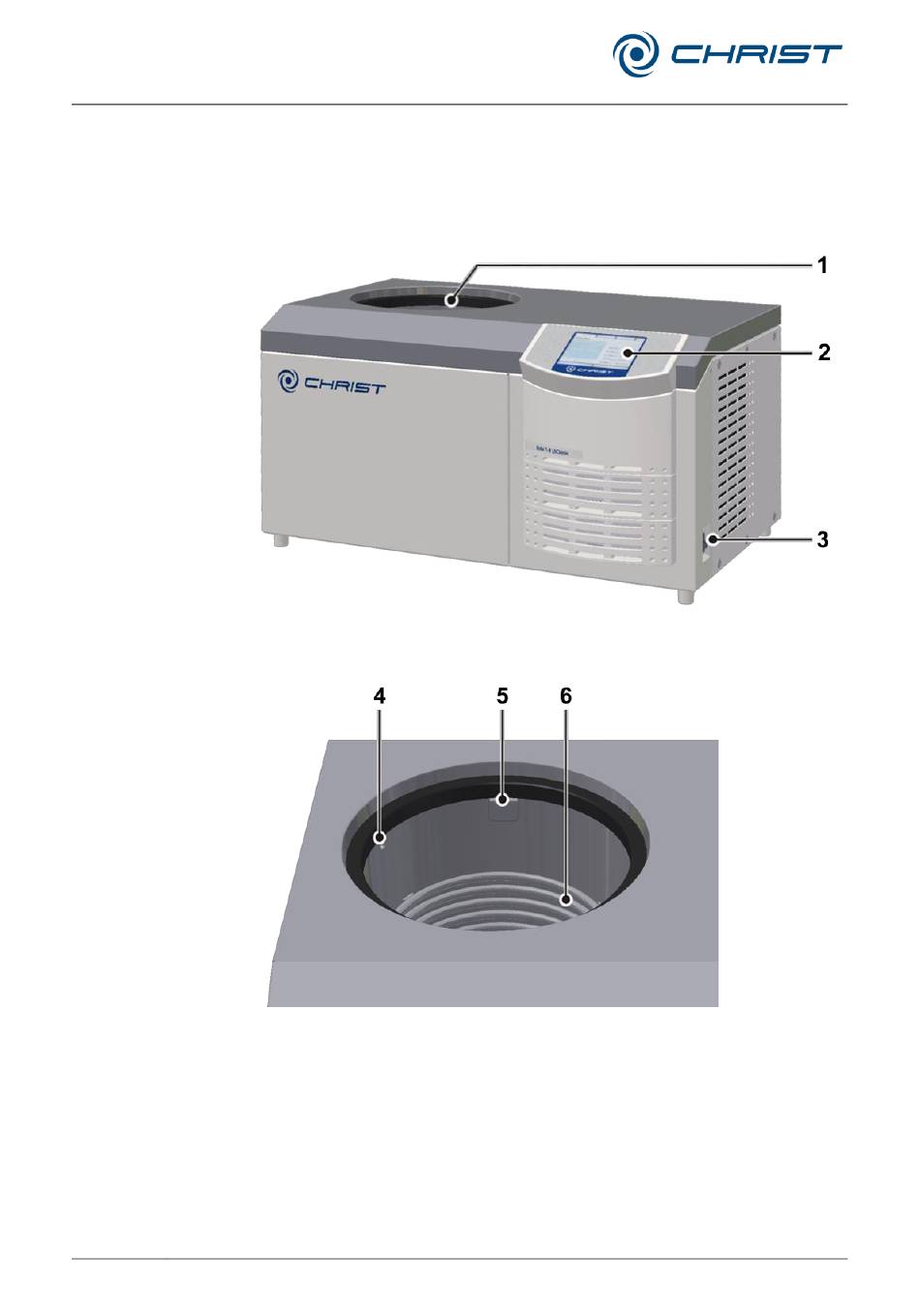

Fig. 57: Total view of the freeze-dryer
Fig. 58: Ice condenser chamber
Version 03/2018, Rev. 1.5 of 09/03/2020 • sb-dc
Translation of the original operating manual
