Freeze-dryer Alpha 3-4 LSCbasic

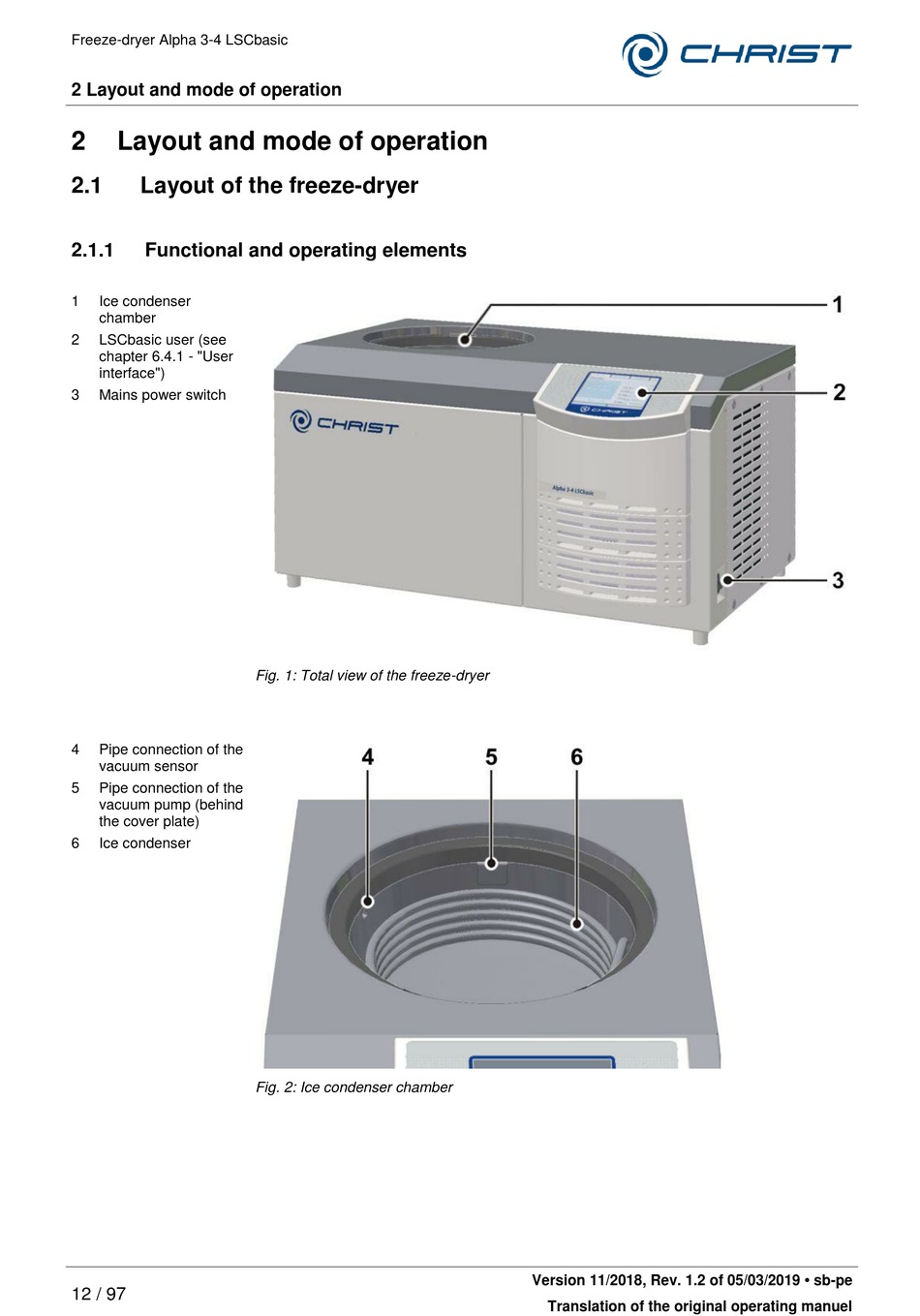

2 Layout and mode of operation


2 Layout and mode of operation

2.1

Layout of the freeze-dryer


2.1.1

Functional and operating elements

1 Ice condenser
chamber
2 LSCbasic user (see
chapter 6.4.1 - "User
interface")
3 Mains power switch
4 Pipe connection of the
vacuum sensor
5 Pipe connection of the
vacuum pump (behind
the cover plate)
6 Ice condenser
12 / 97
Fig. 1: Total view of the freeze-dryer
Fig. 2: Ice condenser chamber
Version 11/2018, Rev. 1.2 of 05/03/2019 • sb-pe
Translation of the original operating manuel
