How to Order

2.3

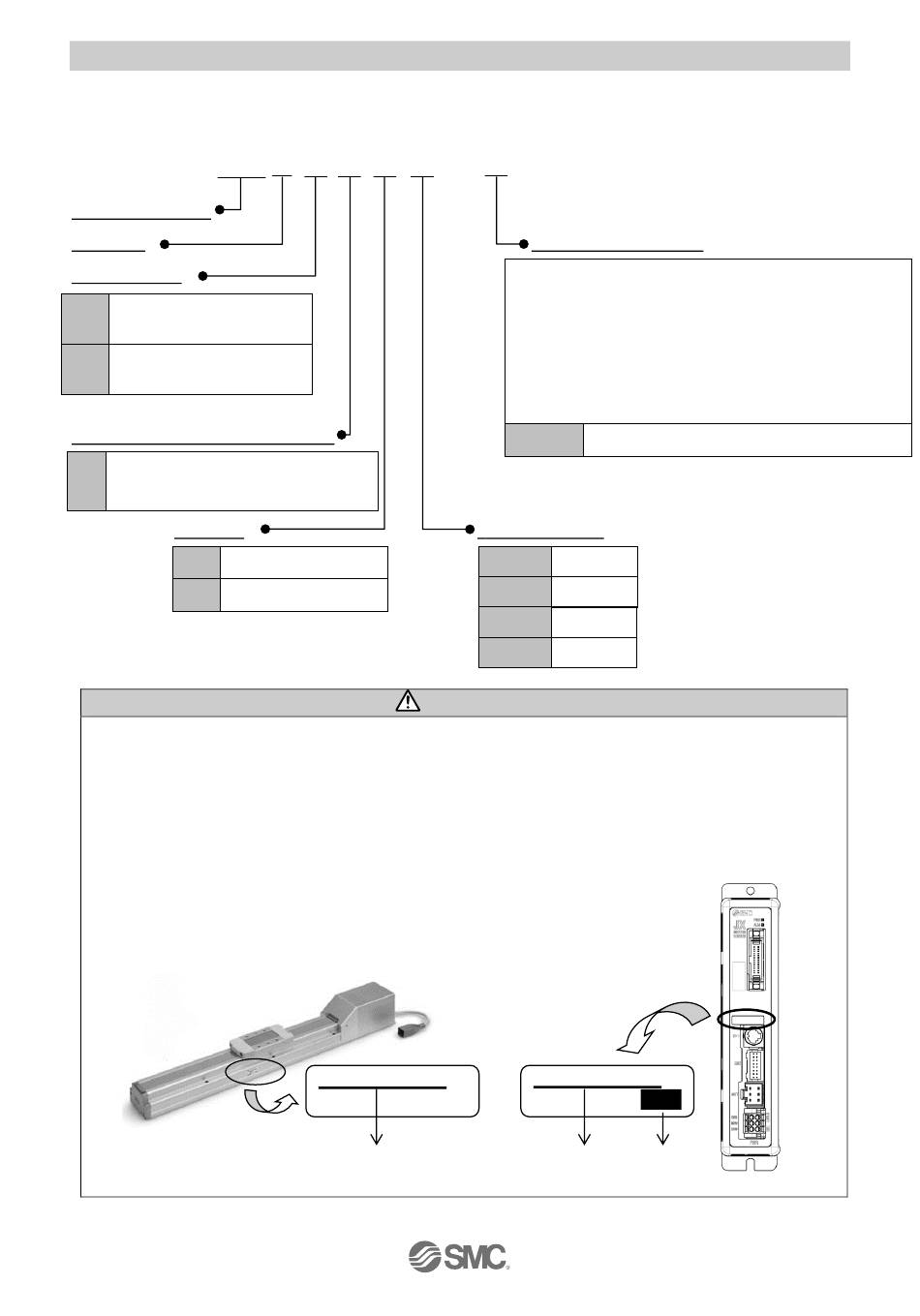

The part number construction for this product is as follows:
ＪＸＣ □ Ｈ □□ － □
Electric equipment
Controller
Controller type
Parallel I/O input type
5
(64-point, NPN)
Parallel I/O input type
6
(64-point PNP)
U
Number of shaft type of power supply
1 axis, power supply 24 VDC,
H
High performance type
Mounting
Screw mounting
7
DIN rail mounting
8
The controller and the electric actuator are factory set Confirm the combination of the controller
and the electric actuator is correct.
Connect the designated electric actuator to the high performance controller.
<Check the following before use.>
(1) Check the electric actuator label for the model number. Check that this matches the controller.
(2) Check Parallel I/O configuration matches (NPN or PNP)
Electric actuator
I/O cable length
Caution
LEFS25FB-100
(1)
- 8 –
Electric actuator model
Stroke example: For LEFS25FB-100B-R3CM1T,
specify LEFS25FB-100.
(Enter from the electric actuator part number "LE"
to "stroke/ rotating angle")
Blank controller
BC
Note 1) Specified software (LEC-BCW) is required.
None
Nil
1
1.5m
3
3m
5
5m
Controller
LEFS25FB-100
NPN
(1) (2)
*1)
No.JXC※-OMY0002
