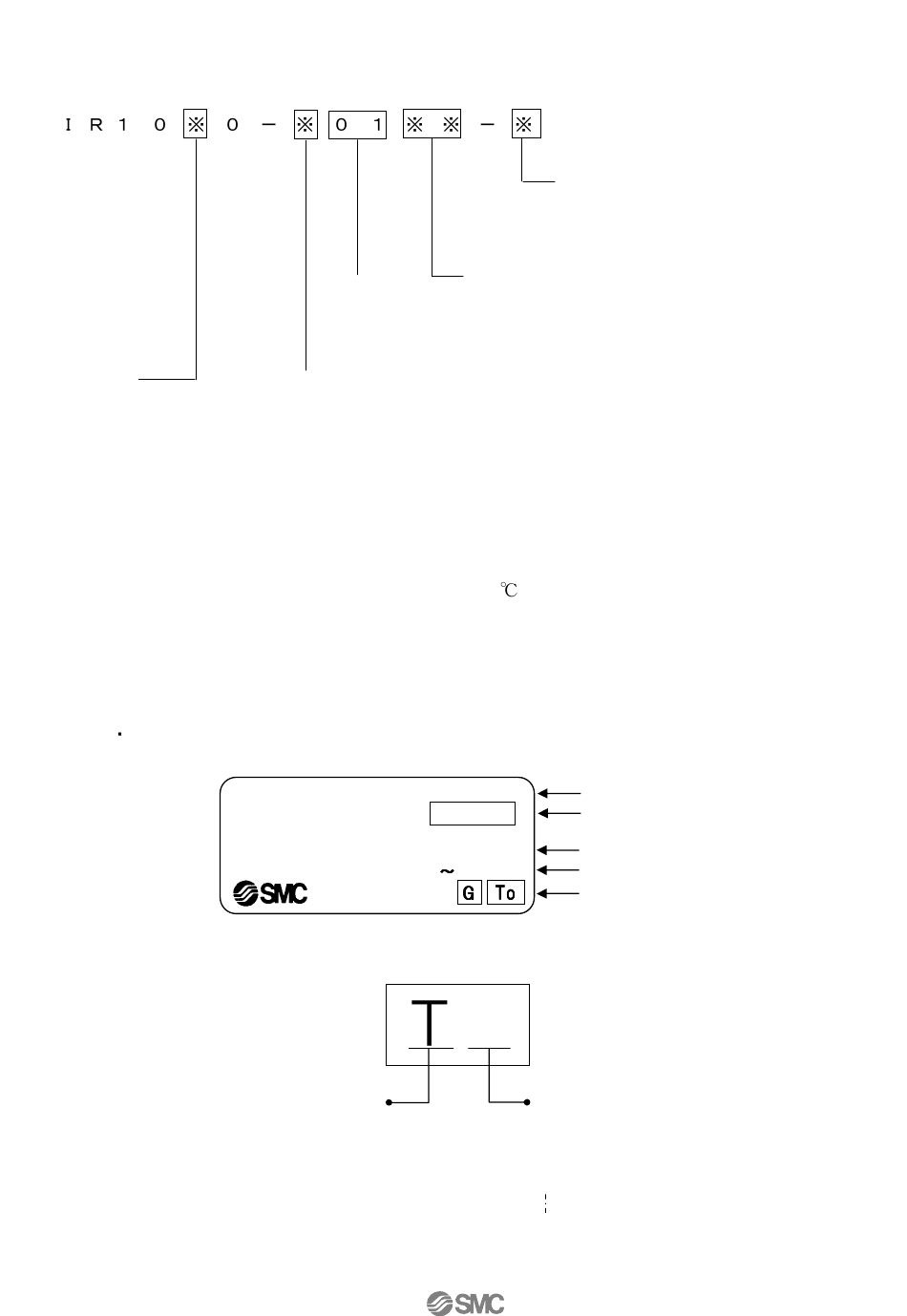

3. How to order

Set pressure
0: 0.005~0.2MPa
1: 0.01~0.4MPa
2: 0.01~0.8MPa
(Note 1) In the standard mounting position, the product name plate is attached to the front and the
bracket is mounted to the back when viewed with the SUP side on the left and OUT side on
the right.
(Note 2) Accuracy: s3%F.S.(full span)
Accuracy guarantee temperature range : 23±5
(Note 3) The pressure gauge is not attached and becomes bundled shipment.
(Note 4) One type only.

4. Marking on product

Product name plate
Port size
Note4)
01: 1/8
Thread type
NIL:Rc
N:NPT
F:G
,5    %* ,5 ,5 ,5 %* %* %*
/#:57224'55 /#:57224'55 /#:57224'55 /#:57224'55   /2C
176276 24'55  176276 24'55
176276 24'55 176276 24'55
0$'( ,1 -$3$1 0$'( ,1 -$3$1 0$'( ,1 -$3$1 0$'( ,1 -$3$1
Production lot no.
Year
T : 2015
U : 2016
V : 2017
W: 2018
X : 2019
Suffix
R:Bracket, Name plate,
Mounting on the opposite side
Accessories
NIL: None
B: Bracket (P36201023)
G: Pressure gauge
Thread type when Rc and G. Thread type when NPT.
IR1000 : G33-2-01
IR1010 : G33-4-01
IR1020 : G33-10-01
Product number

Product code

Max. supply pressure
/2C /2C /2C
/2C /2C
/2C /2C
Set pressure range
Production lot no.
Q
Month
o: January
P: February
Q: March
R: April
Z: December
-7-
Note2) Note3)
G33-P2-N01-X30
G33-P4-N01-X30
G33-P10-N01-X30
Note1)
