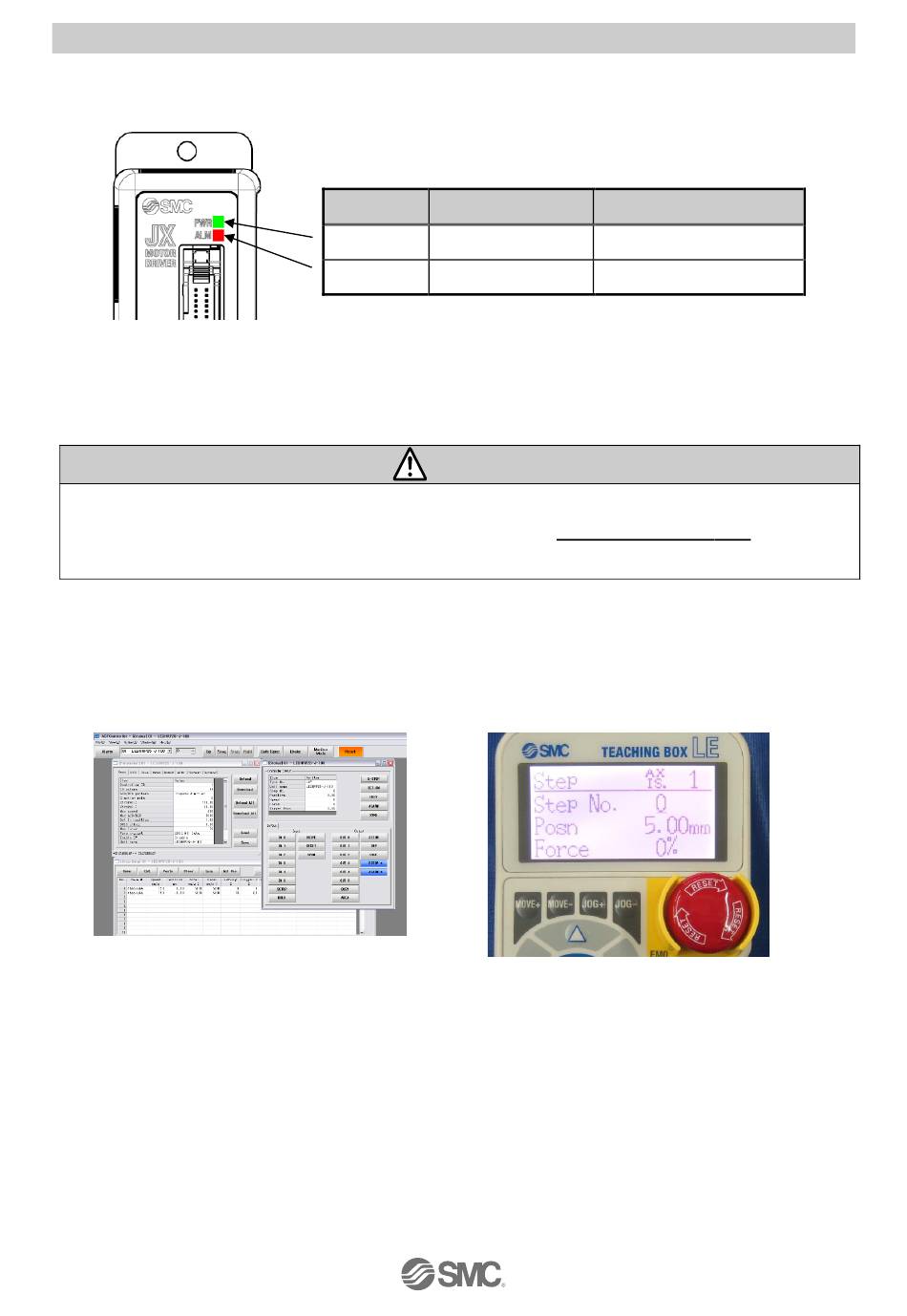

(4) Power ON alarm (error)
Ensure the stop is not activated and then supply 24 VDC power.
Controller
If the LED [PWR] lights in green, the controller is in the normal condition.
However, if the LED [ALM] lights in red, the controller is in the alarm (error) condition.
When an alarm is generated, connect the controller configuration software or teaching box to the SI: serial
I/O connector. Then, remove the cause of the error referring to the 11. Alarm Detection. P.54
Please refer to the manuals of the controller setting software or the teaching box for details of the alarms.
(5) Operation pattern setting
Set up the step data and parameters using the controller set up software or the teaching box.
●Controller set up software
Please refer to the manuals of the controller setting software or the teaching box for how to setup the
operation pattern.
(6) Trial run
Please refer to the manuals of the controller setting software or the teaching box manual for how to perform
a trial run.
Function
LED status
PW R
Green LED is ON.
ALM
OFF
Caution
●Teaching box
- 15 –
Status
Normal
No alarm is generated.
U
No.JXC※-OMY0002
