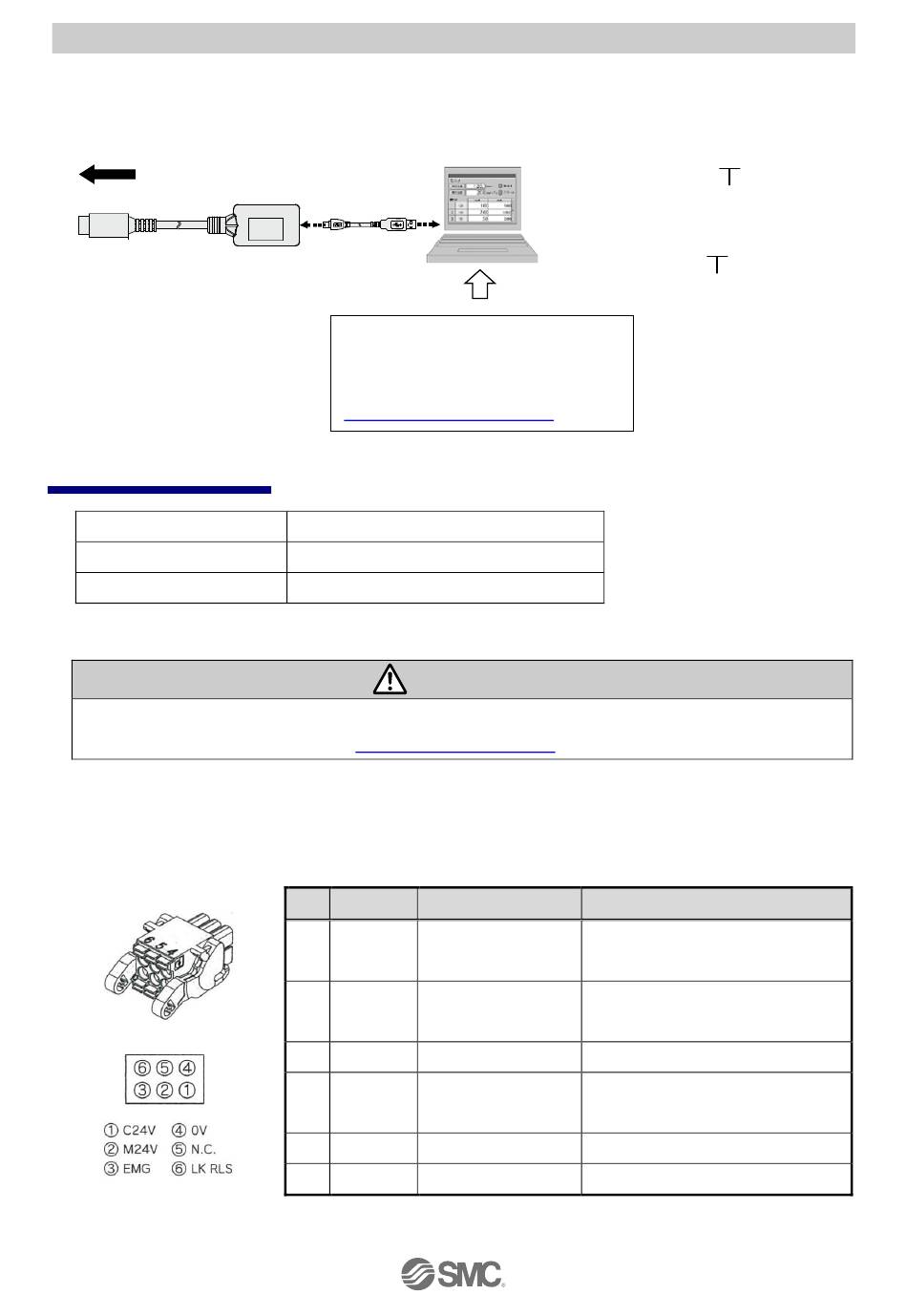

（6） Communication cable for controller setting
To controller
Communication cable
Operating environment
OS
Communication interface
Display
WindowsⓇ7, WindowsⓇ8.1, and WindowsⓇ10 are registered trademarks of United States Microsoft Corporation.
The latest version of the controller setting software must be used.
Please download from SMC website.
（7） Power supply plug
JXC-CPW
USB cable
• Controller Configuration Software
• USB driver
Please download from SMC website.
https://www.smcworld.com/
Window®7,Windows®8.1,Windows®10
USB1.1 or USB2.0 port
1024×768 or more
Caution
https://www.smcworld.com/

Power Supply Plug

No. Terminal
Control power supply
1 C24V
(+)
2 M24V Motor power (+)
3 EMG Stop (+)
4 0V Common power (-)
5 - NC
6 LK RLS Unlocking (+)
- 12 –
PC
JXC - W2A - C
LEC - W2 - U
Function
Positive control power to be supplied
to the controller.
Positive control power to be
supplied to the motor.
The positive power for Stop signal.
The negative common power for
M24V, C24V, EMG and LK RLS.
N/A
Positive power for unlocking.
Communication cable
USB cable
Details
