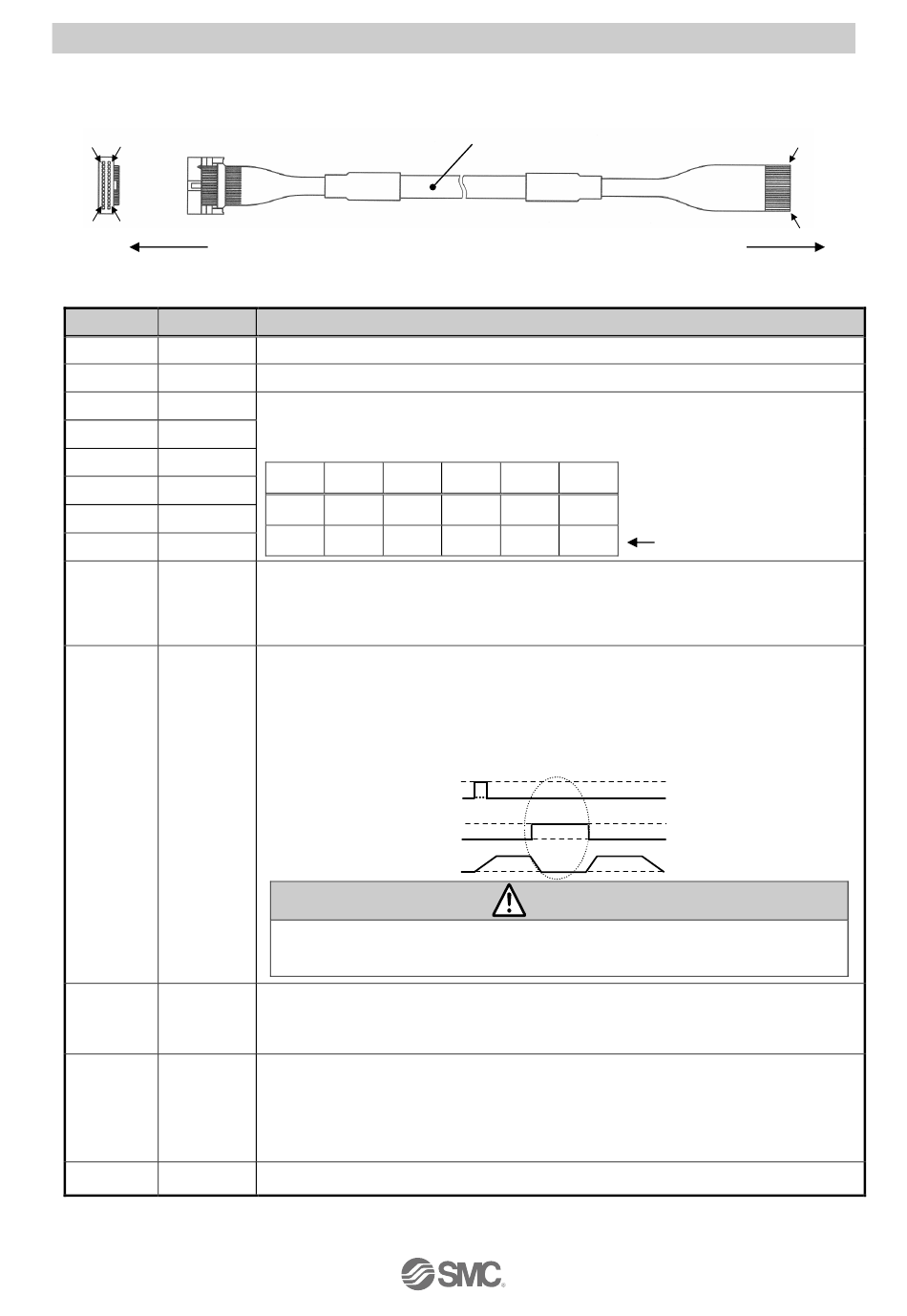

6.3 The parallel I/O signal is detailed

B1 A1
B13 A13
To the controller parallel IO connector
-入力側-
No. Function
A1 COM+
A2 COM-
A3 IN0
A4 IN1
A5 IN2
A6 IN3
A7 IN4
A8 IN5
A9 SETUP
A10 HOLD
A11 DRIVE
A12 RESET
A13 SVON
The terminal for the 24V of the 24 VDC I/O signal power.
The terminal for the 0V of the 24 VDC I/O signal power.
Bit no. to specify the step data
(Specify the number by combining On / Off of the terminals.)
Example: (Bit no. to specify the step data no.3.)
IN5 IN4 IN3
OFF OFF OFF
0 0 0
When SVRE (B11) is ON, the SETUP operation (return to origin operation) will
be performed. During the SETUP operation, BUSY (B7) will be turned ON and
after completion of the SETUP operation, SETON (B9) and INP (B10) will be
turned ON.
If HOLD input is ON during operation, the speed decreases at maximum
deceleration speed of the basic parameter until the electric actuator stops. The
remaining stroke will be on hold as long as HOLD is ON and when HOLD is
turned OFF, the electric actuator restart to travel the remaining stroke.
● When DRIVE or SETUP is ON:
DRIVE
ON
or
SETUP
OFF
ON
HOLD
OFF
Speed
As long as HOLD is ON, the DRIVE input will be disabled.
The output signals are rendered invalid whilst hold is in operation.
When DRIVE is turned ON, the system scans the input IN0 to IN5 and starts the
operation of the electric actuator. Then, when this terminal is turned OFF, the
number of the active step data will be output via the terminals OUT0 to OUT5.
The terminal to reset the alarm and the operation. After RESET, the speed
decreases at maximum deceleration speed of the basic parameter until the
electric actuator stops. INP and OUT0 to OUT5 will be turned OFF (however, if
the electric actuator is stopped within the in-position range, the INP will be
turned ON).
The SVON signals turns the servomotor ON/OFF.
- 29 –
I/Ocable
The end to be connected to a PLC, etc.
Description
IN2 IN1 IN0
OFF ON ON
0 1 1
On hold
Restart
Caution
A1
･ ・
・
A13
B1
･ ・
・
B13
Binary code
No.JXC※-OMY0002
