２.６

Power ON alarm (error)

Check that there is no problem with each wiring referring to 2.5 Wiring and connection of electric
actuator and supply 24 VDC power supply between C24V - 0V (power supply input for control) and
between M24V - 0V (power supply input for power line) of the power supply cable.

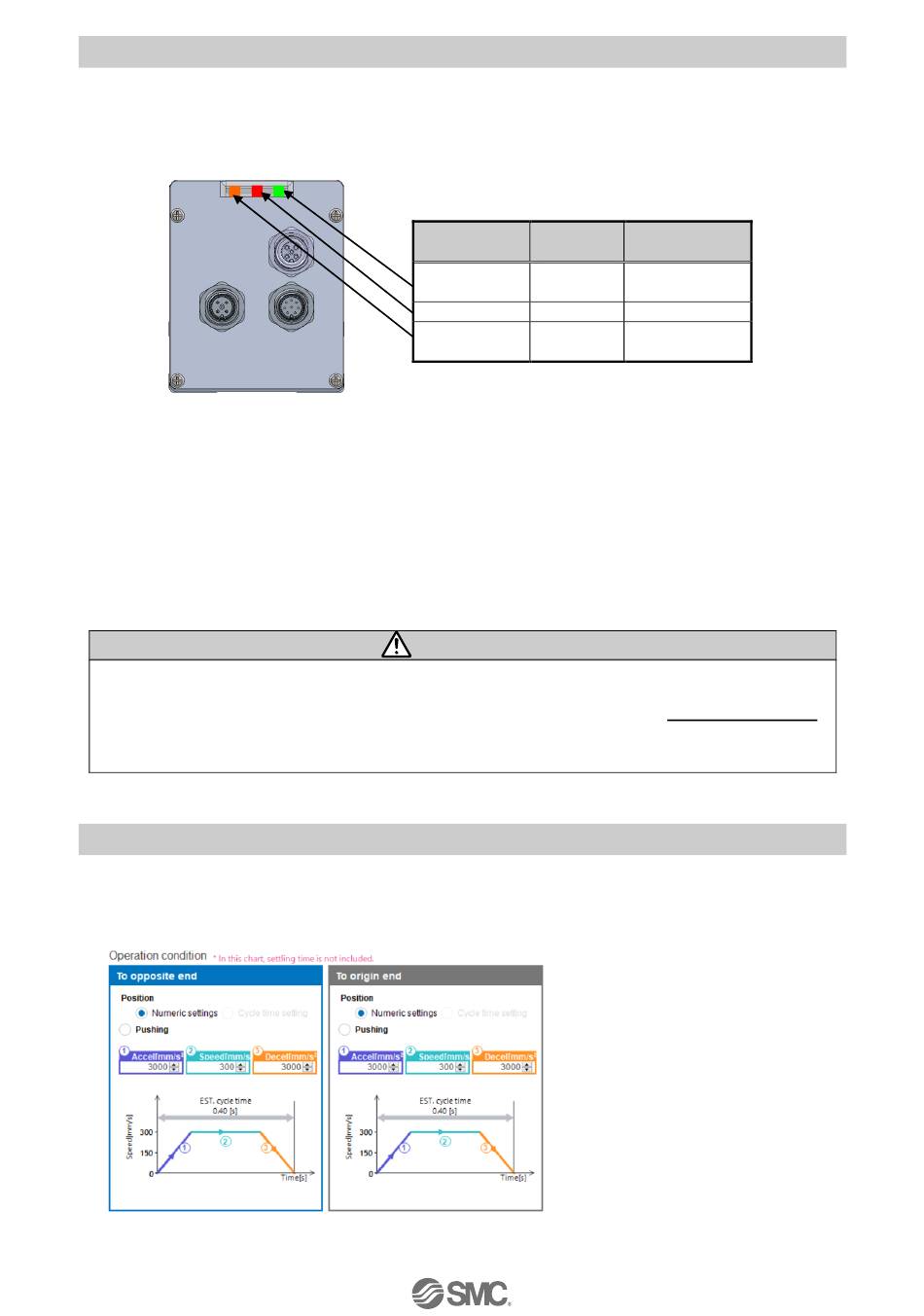

Electric actuator
If the LED [PWR] on the electric actuator turns green, it is in normal condition.
If the LED [ALM] on the electric actuator turns red, the alarm is generated.
*If the LED [PWR] on the electric actuator is turned off, the voltage between M24V - 0V is low or 0
VDC.
*If the LED [OVL] on the electric actuator turns orange, the electric actuator operation may be in an
overloaded condition.
When an alarm is generated, connect the setup software to the setup communication connector of
the electric actuator, check the alarm details, and solve the cause referring to 5. Alarm Detection.
Refer to the operation manual of the setup software for the alarm checking method.
２.７

Setup of the operation parameters

Set the operating data and parameters with the setting software.
●Setting Software
Refer to the operation manual of the setting software for the setup method.
LED LED
status
PWR
ON
(Green)
ALM (Red) OFF
OVL(Orange) OFF
Caution
- 40 -
Status
Normal
No alarms
No Overload
warning
