3. If you want the exposure settings to adjust automatically, in the Mode list, tap Full Auto.
Skip the remaining steps.
4. In the Mode list, tap Manual.
5. To adjust the Iris position, do one of the following:
• Tap and hold the OPEN button to open the iris (reduce f/stop), or the CLOSE button to close it (increase
f/stop).
• Tap and drag the Iris slider left (CLOSE) to open the iris (reduce f/stop), or right (OPEN) to close the iris
(increase f/stop).
6. To adjust the Shutter speed, do one of the following:
• Tap and hold the SLOW button to reduce the shutter speed, or the FAST button to increase it.
• Tap and drag the Shutter slider left (SLOW) to reduce the shutter speed, or right (FAST) to increase it.
7. To adjust the Gain value, do one of the following:
• Tap and hold the DOWN button to decrease gain, or the UP button to increase it.
• Tap and drag the Gain slider left (DOWN) to decrease gain, or right (UP) to increase it.
8. If you want some or all of the exposure settings (iris, shutter, gain) to be applied when shots are recalled, select
the corresponding Recall check box(es).
Note: Manual exposure settings are always saved with shots. The Recall check boxes only control whether the
settings are applied when shots are recalled. You can select or clear these check boxes at any time.

Using the On-Screen Menu (Remote Control)

The PIVOTCam Control Panel includes controls to operate PIVOTCam on-screen menus.
The on-screen menu enables you to configure a variety of camera settings.
Note: Alternatively, you can access on-screen menus using the remote control that came with the camera. For more
information about linking a remote control to a given camera, and using the remote control to configure cameras,
see the PIVOTCam User Manual (5000DR-300-xx).
IMPORTANT: When configuring settings, do not change the BAUDRATE or ADDRESS (chain address). Doing
so causes the PIVOTCam Control Panel to lose connectivity with the camera. If you accidentally change one of
these settings, use the remote control device that came with the camera to reset the values.
PIVOTCam Control Panel User Guide (1.2)

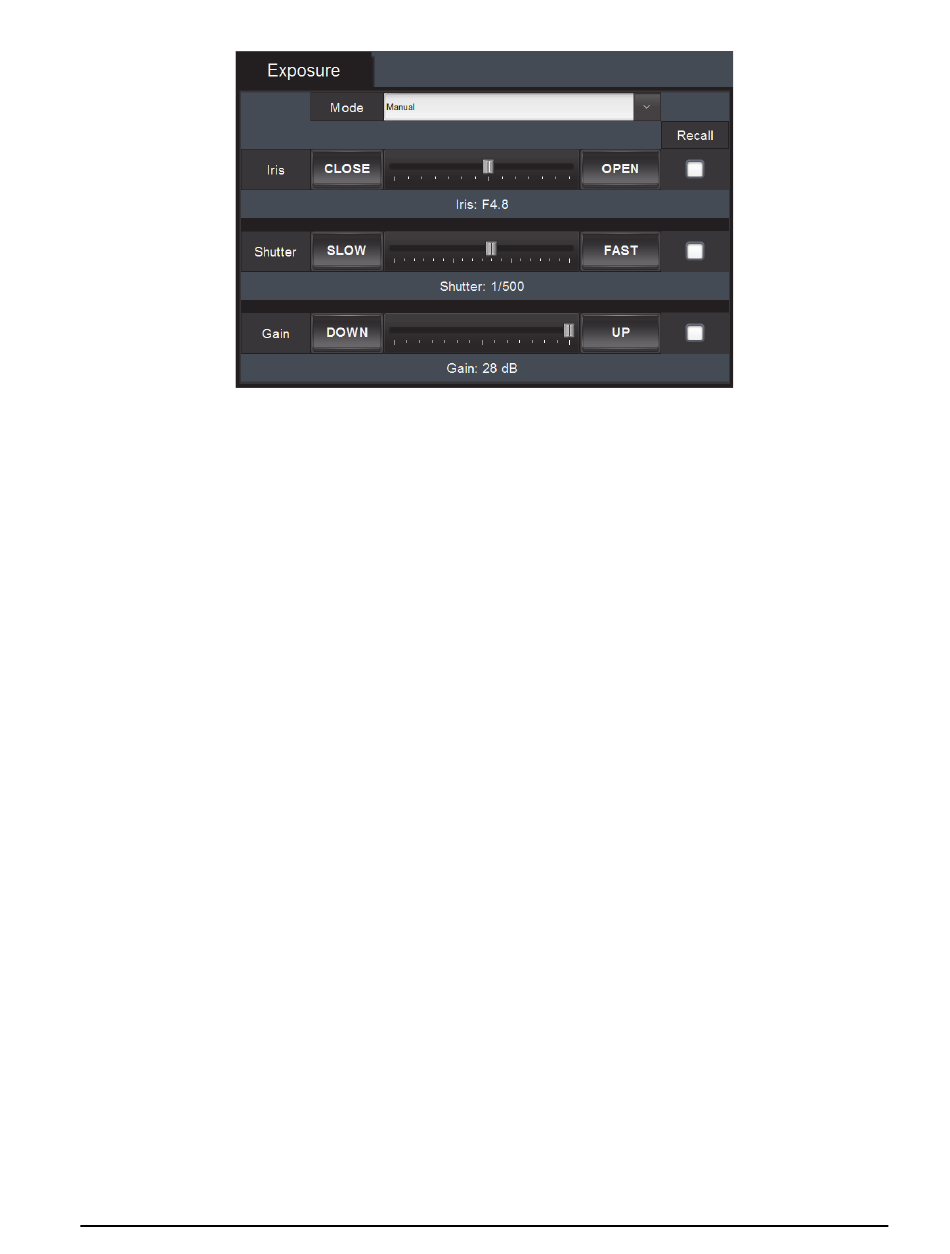

Figure 4.7 - Exposure Controls (manual mode)
Using the PIVOTCam Control Panel • 4–9
