Focus Controls

The Focus controls (Figure 3.23) enable you to focus the lens of the current camera manually, or turn on auto
focus. For more information, see "Focusing" on page 4–7.

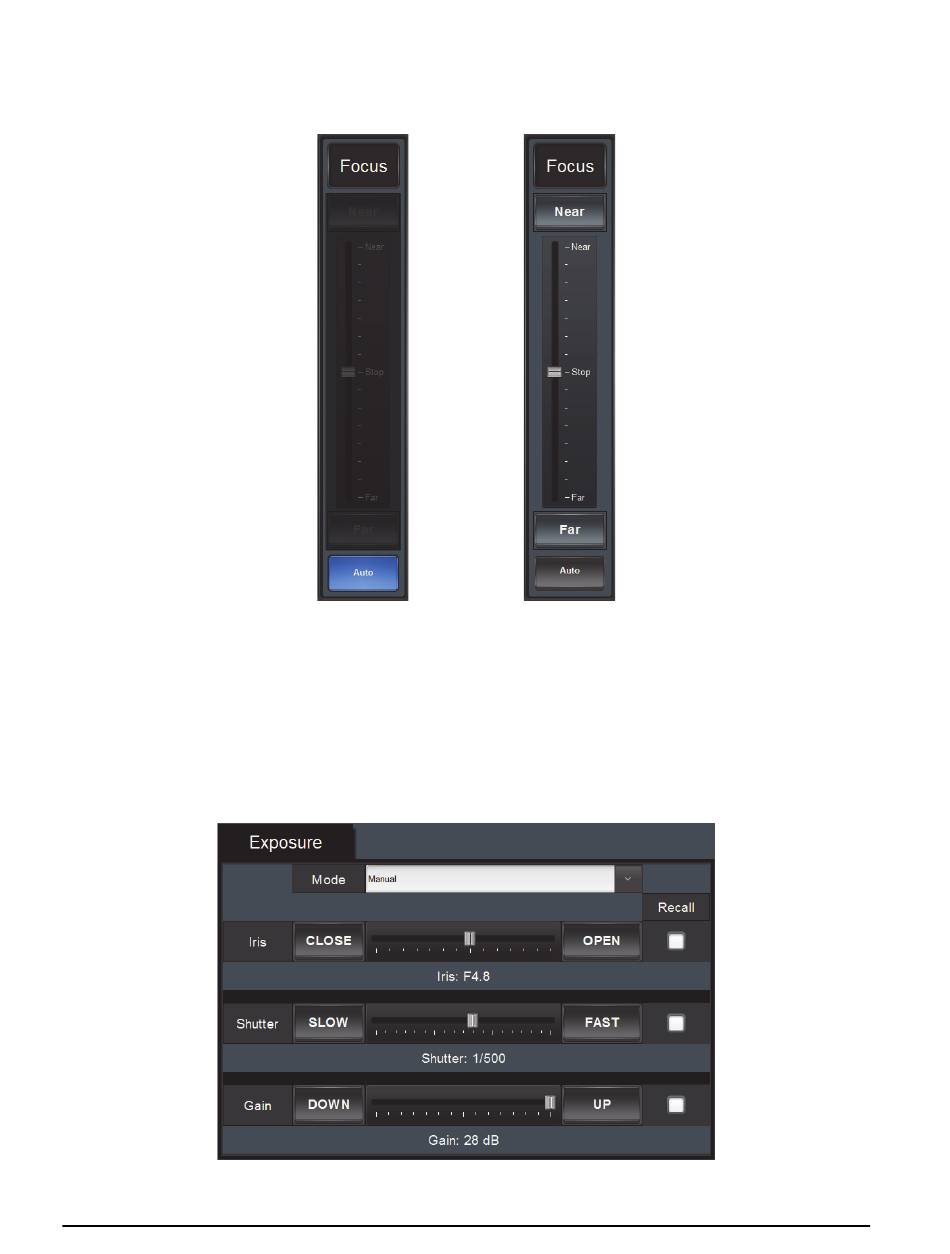

Figure 3.23 - Focus Controls - Auto Focus (left), and Manual Focus (right)

Exposure Area

The Exposure area enables you to manually adjust exposure settings (iris, shutter, and gain), or set them to Full
Auto.
If you set iris, shutter, and gain values manually, those values are saved in shots. You can specify whether recalling
shots applies the saved exposure settings.
For more information, see "Adjusting Exposure Settings (Iris, Shutter, Gain)" on page 4–8.
Figure 3.24 - Exposure Area (manual mode)
