Using the PIVOTCam Control
Panel
The PIVOTCam Control Panel is a DashBoard panel that enables you to configure and control PIVOTCam robotic
cameras. You can control cameras manually, store and recall shots, and configure camera settings.
This section describes how to use the PIVOTCam Control Panel. It contains the following topics:
• "Adding Cameras and Editing Camera Settings" on page 4-1
• "Monitoring Camera Status" on page 4-3
• "Selecting the Store Mode" on page 4-4
• "Deleting Cameras" on page 4-4
• "Saving and Loading Data Files" on page 4-4
• "Controlling Cameras" on page 4-5
• "Storing, Recalling, Renaming, and Deleting Shots" on page 4-11
• "Operating the System During a Show" on page 4-18

Adding Cameras and Editing Camera Settings

This section describes how to add cameras to the control panel, and how to edit camera configuration settings.
Tip: After you finish adding cameras and editing settings, you can save the configuration data. For more
information, see "Saving and Loading Data Files" on page 4-4.
To add a camera or edit camera configuration settings:
1. Tap the Config Cameras button (Figure 4.1).

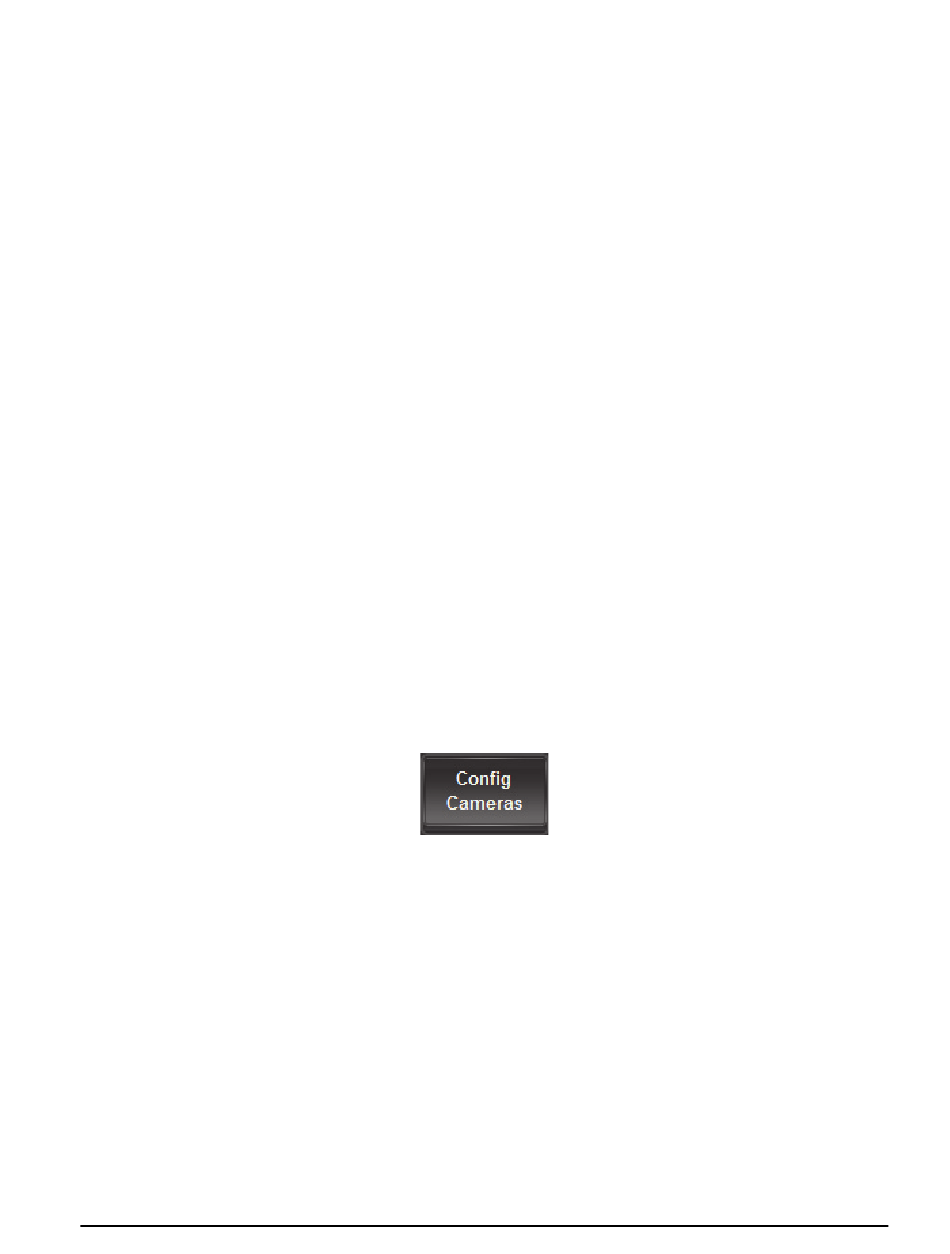

Figure 4.1 - Config Cameras Button
The camera configuration interface appears, as shown in Figure 4.2.
PIVOTCam Control Panel User Guide (1.2)

Using the PIVOTCam Control Panel • 4-1
