Open Menu Button (on-screen menu control)

The Open Menu button (Figure 3.25) opens the Menu Control interface (Figure 3.26), which enables you to
operate the current camera's on-screen menu.
The Menu Control interface includes the following controls:
• Up arrow button — Navigates up the list of settings in the current level of the menu.
• Down arrow button — Navigates down the list of settings in the current level of the menu.
• Right arrow button — Navigates from the upper level of the menu (left column) to the lower level (right
column). Within the right column, tapping the right arrow button cycles through values for the current setting.
• Left arrow button — Cycles through values for the current setting. The left arrow button does not navigate
between levels of the menu.
• Back button — Returns to a higher level of the hierarchy.
• OK button — Applies the currently-selected value. Applies to FORMAT values, and SAVE selection.
• Close Menu button — Closes the on-screen menu and the Menu Control interface.
Tip: After one minute of inactivity, the on-screen menu closes automatically. You must close and re-open the Menu
Control interface to continue using the on-screen menu.
Tip: The joystick is not operational while the Menu Control interface is open.
PIVOTCam Control Panel User Guide (1.2)

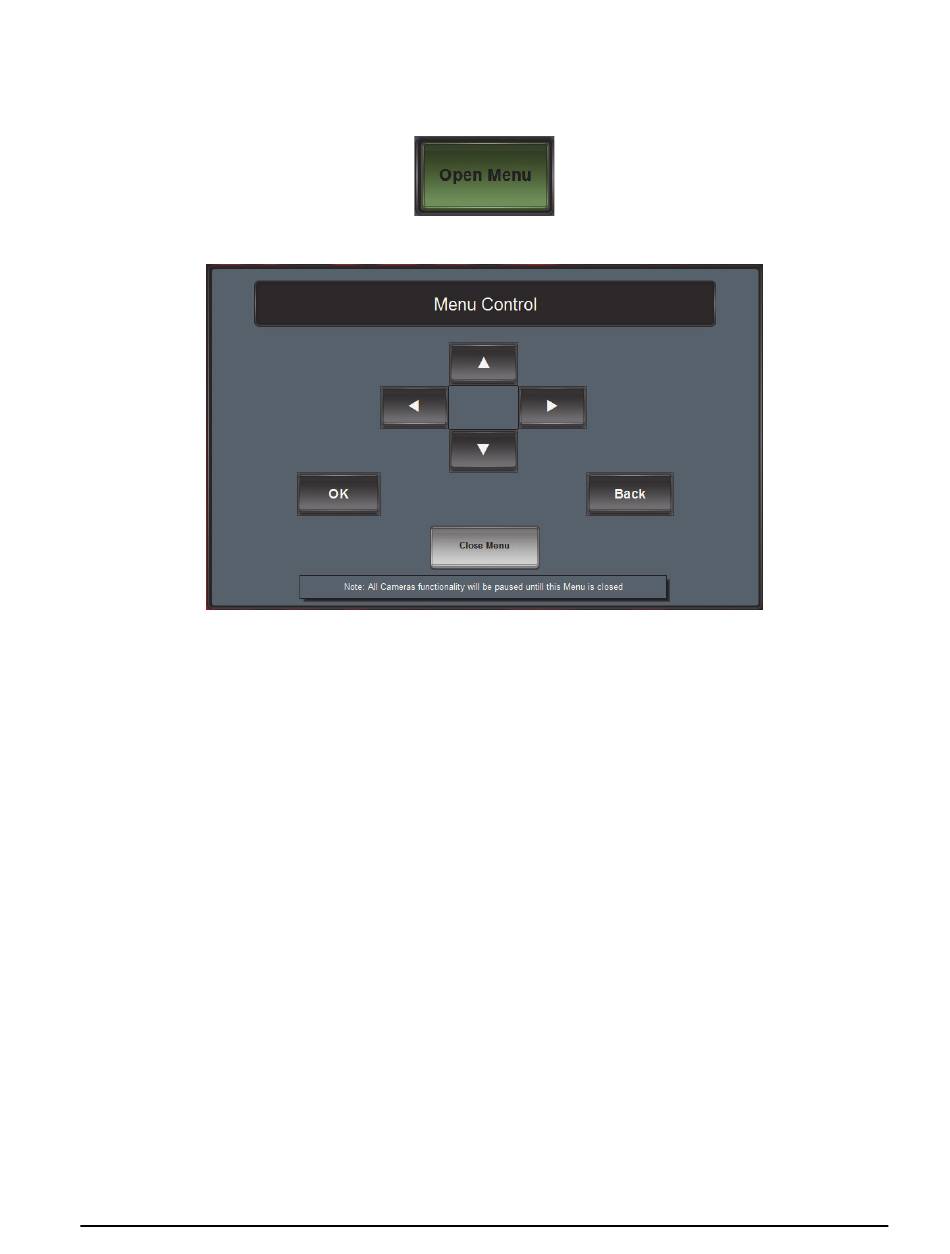

Figure 3.25 - Open Menu Button
Figure 3.26 - Menu Control Interface
