User Interface Overview

This section describes the PIVOTCam Control Panel user interface.
The PIVOTCam Control Panel is a DashBoard panel that enables you to configure and control PIVOTCam robotic
cameras. You can control cameras manually, store and recall shots, and configure camera settings.
The main parts of the PIVOTCam Control Panel are as follows:
• "Camera Selection Bar" on page 3–1
• "Camera Configuration Interface" on page 3–1
• "Store/Recall Shots Tab" on page 3–6
• "Camera Controls Tab" on page 3–10
• "Color Controls Tab" on page 3–14

Camera Selection Bar

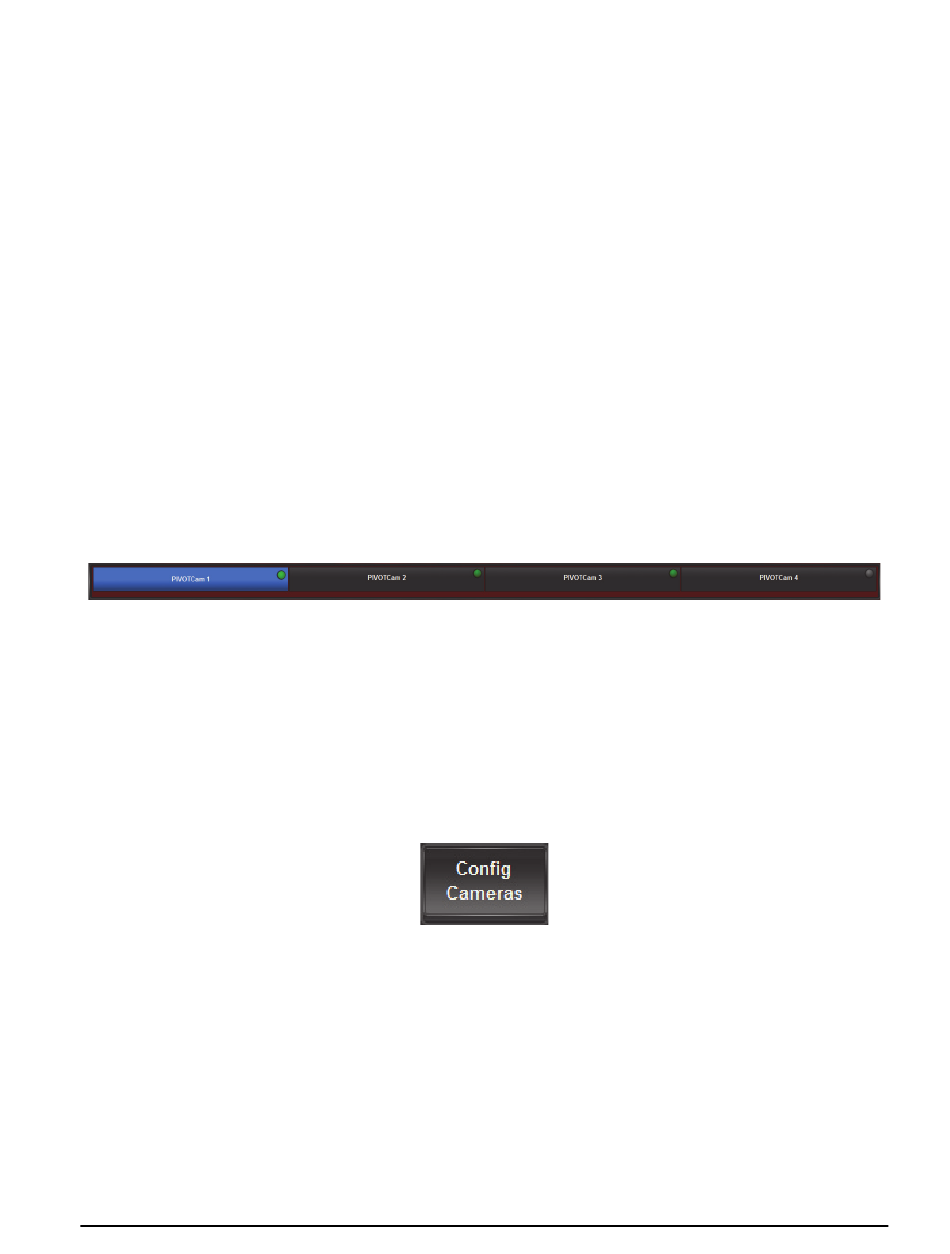

The camera selection bar (Figure 3.1) consists of a row of camera buttons, each representing a PIVOTCam camera.
Tap a camera button to select a camera. The blue camera button represents the currently-selected camera. All
actions performed on the Store/Recall Shots tab, the Camera Controls tab, and the Color Controls tab affect the
selected camera.
Figure 3.1 - Camera Selection Bar
Each camera button has a status indicator dot. A green dot indicates that the control panel can communicate with
the camera. A grey dot indicates that the control panel cannot communicate with the camera.

Camera Configuration Interface

The camera configuration interface enables you to add cameras to the control panel, and to edit camera
configuration settings.
To access the camera configuration interface, tap the Config Cameras button (Figure 3.2).
Figure 3.2 - Config Cameras Button
The camera configuration interface appears, as shown in Figure 3.3.
