Operating Instructions
PP

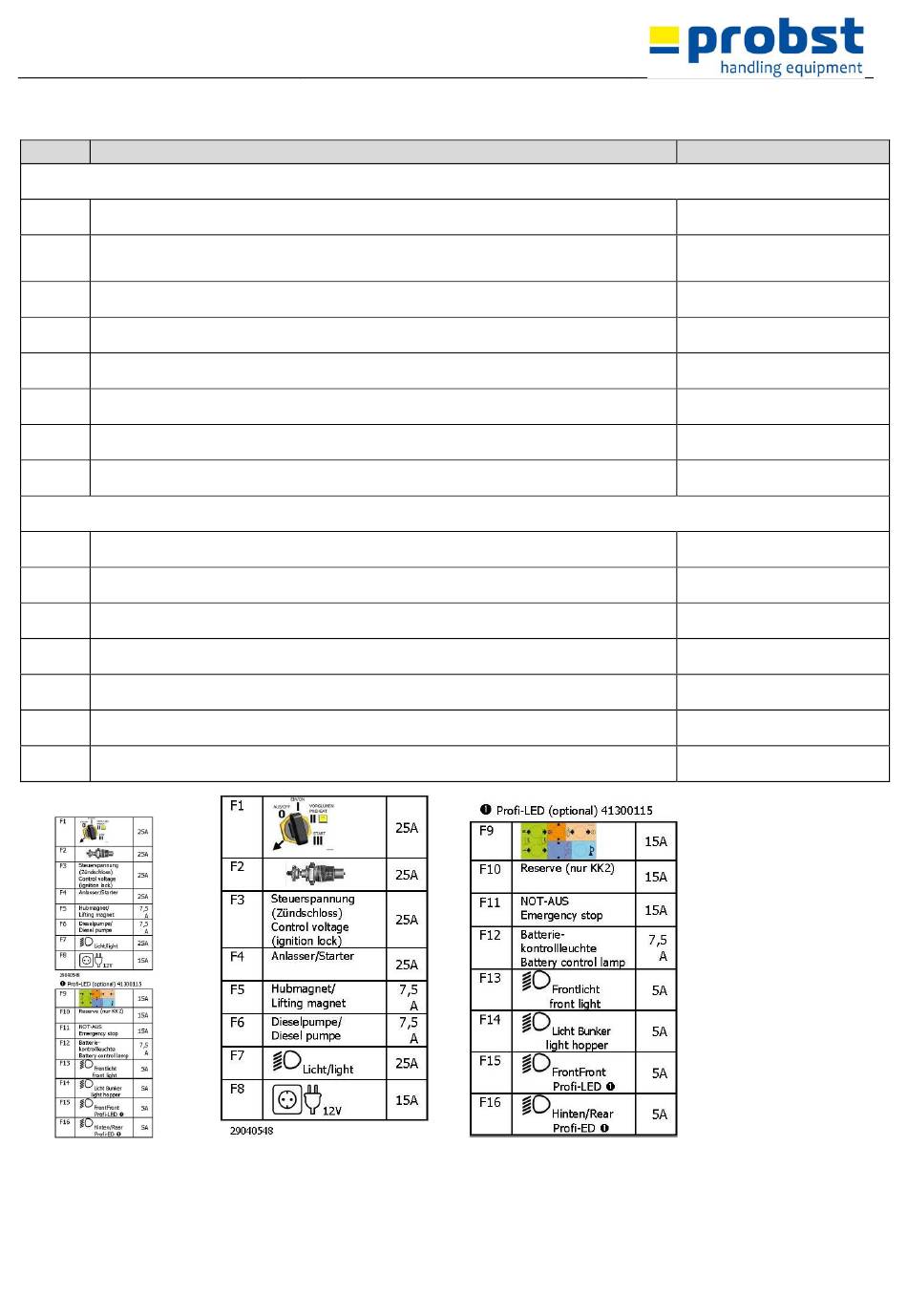

Fuse assignment diagram
No.
Top terminal box
F1 Control voltage (ignition switch)
F2 Glow plugs
F3 Control voltage (downstream of ignition switch)
F4 Starter motor
F5 Lifting magnet
F6 Diesel pump
F7 Lights
F8 12 volt power socket
Bottom terminal box
F9 Manual control unit
F10 Spare fuse (only in the bottom terminal box)
F11 EMERGENCY STOP
F12 Battery control light
F13 Front light
F14 Light hopper
F15 Profi LED (optional)
67 / 73
Maintenance and care
Consumer
V4
Fuse rating
25 A
25 A
25 A
25 A
7.5 A
7.5 A
15 A
15 A
15 A
15 A
15 A
7.5 A
5 A
5 A
15 A
