Fitting/removing the smoothing and spreading board

The smoothing and spreading board can be attached on the left and right side of the machine.
46 / 73
Operating the machine
V4

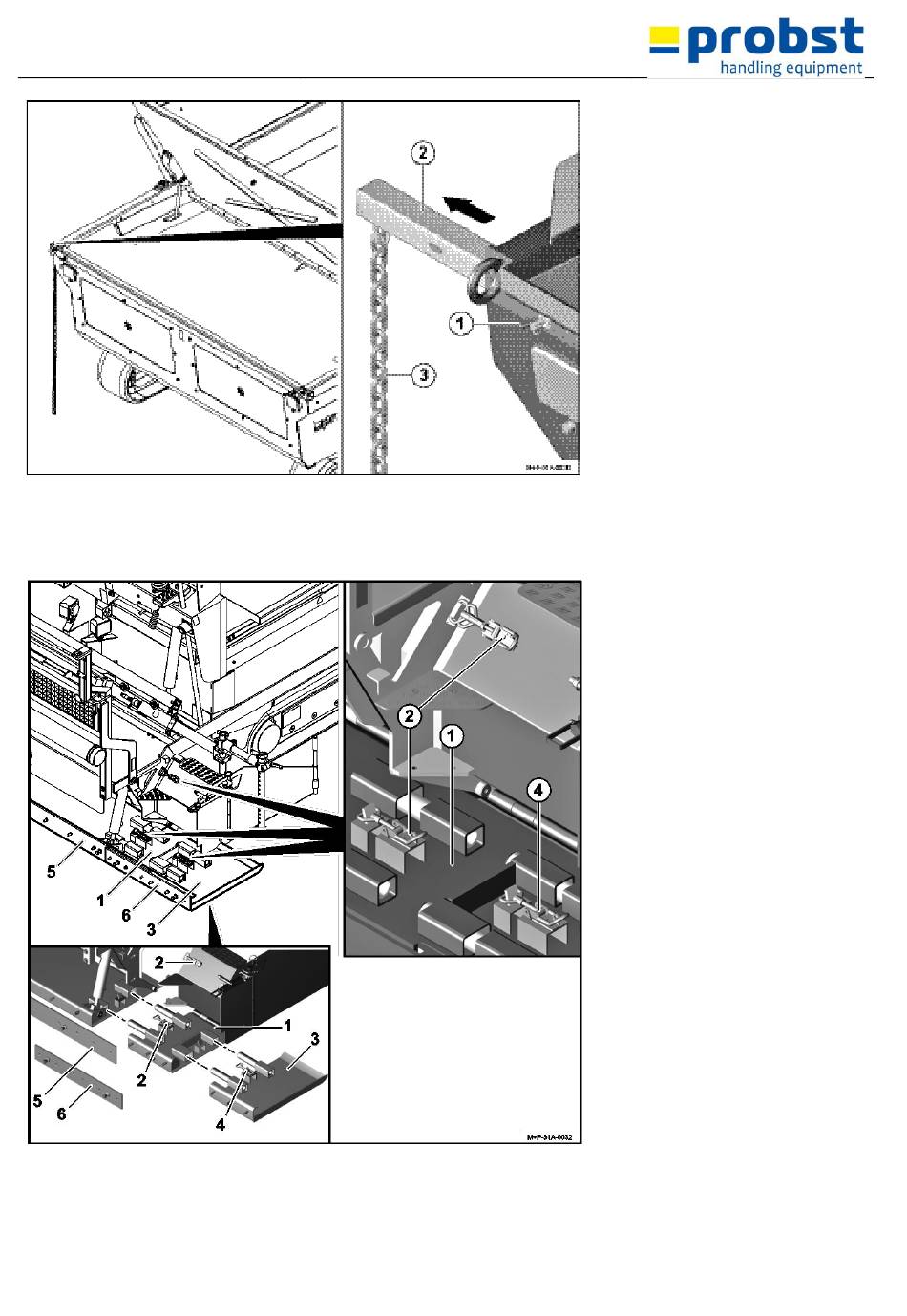

1. Undo the wing screw (1).
2. Pull out the chain guide (2) to the
required length.
3. Let the chain (3) drop.
4. Tighten the wing screw (1).
Fitting the boards
1. Put the spreading board (1) into
position and lock the fasteners (2).
2. Put the smoothing board (3) into
position and lock the fasteners (4).
3. Fasten the rubber wipers (5) and
(6) with the nuts.
Removing the boards
4. Remove the nuts.
5. Tighten the screws by a few turns.
This will push the rubber wipers (5)
and (6) outward.
6. Remove the rubber wipers (5) and
(6).
7. Open the fasteners (4) and remove
the smoothing board (3).
8. Open the fasteners (2) and remove
the spreading board (1).
