RTK5 Smart GNSS System User Manual

2.4 Web management system

iRTK5 has a built-in WEB Management System for real-time controlling and free configuration of the
receiver. The device Wi-Fi name is the S/N, you can connect it with the controller or phone (without a
password), and then input the IP address 192.168.20.1, in the browser, to log into the WEB
management system.

2.4.1 Main menu

After logging into the WEB management system, you can click Start to enter the main menu interface.
The main menu contains the drop-down menu with each option.

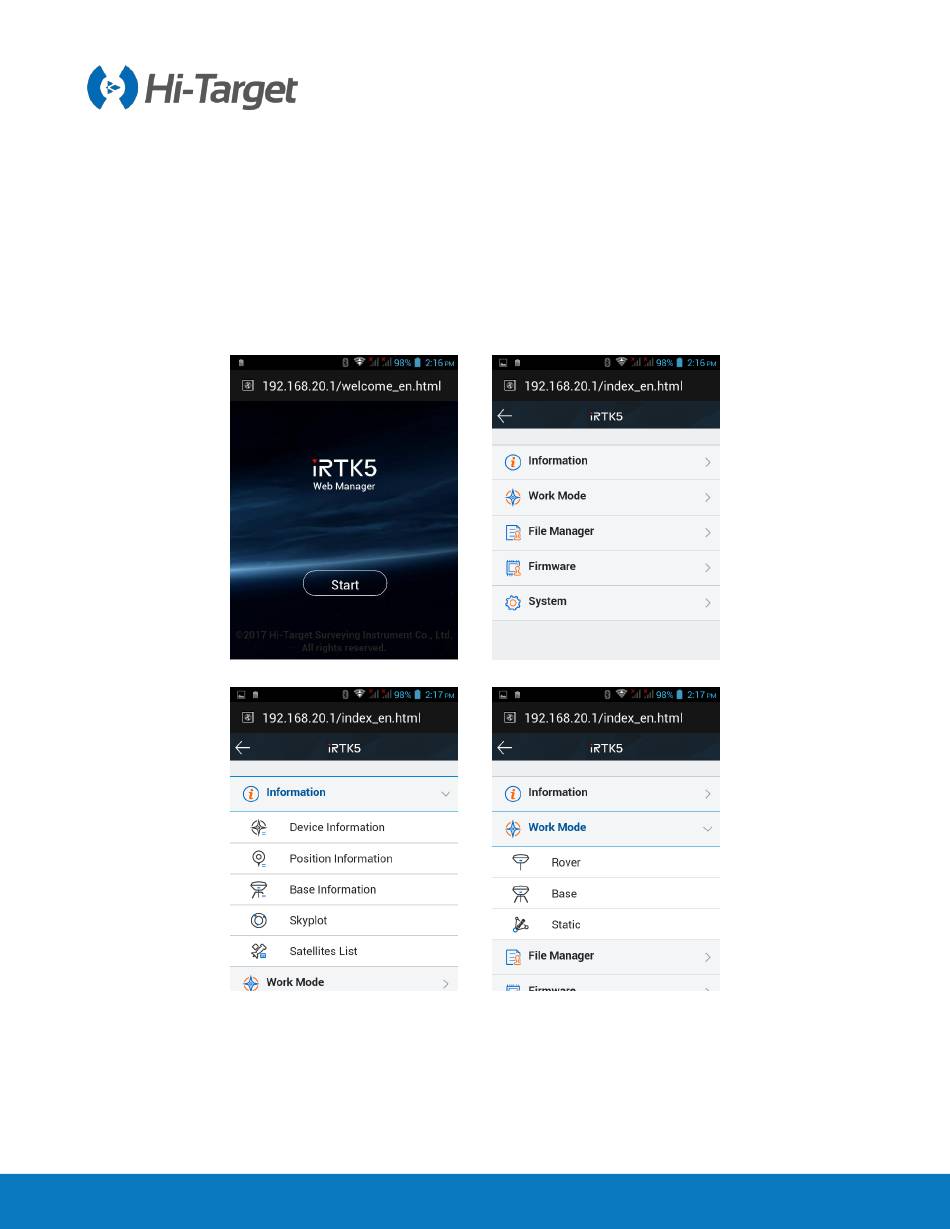

Figure 2-4-1 Welcome page Figure 2-4-2 Main menu
Figure 2-4-3 Information Figure 2-4-4 Work mode
