2.2.2 LED

When the screen display is on:
The power LED, data LED and satellite LED will be off.
When the screen display is off:
The power LED, data LED and satellite LED will work according to the current receiver's status.
Item
Long-term lighting
Power LED
Data LED
Long-term lighting
Satellite LED

2.3 Touch screen display

The receiver has a 1.3-inch 240*240 high-resolution touch screen to support touch operation. Double-
click the power button to turn off the LCD display, and double-click the power button again, or click the
screen, to resume the LCD display.

2.3.1 Status interface

The receiver will display the current working status when it's powered on. The status interface consists
of icons and text.
i

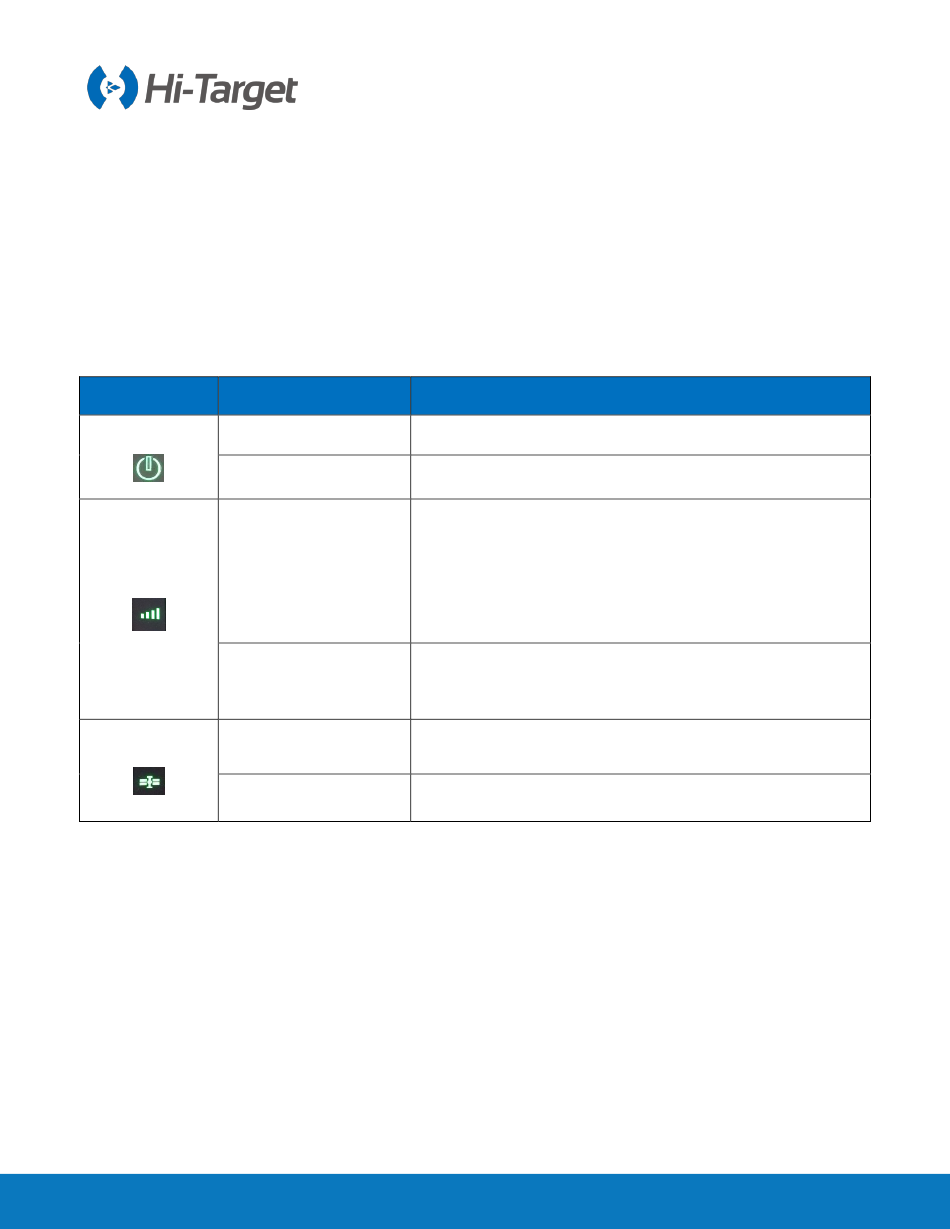

Table 2-2-2 LED function description
Status
Power sufficient
Flash Battery low
1. RTK mode: flash at the differential data interval.
2. Static mode
Flash
Sampling interval >1S: flash at the sampling interval;
Sampling interval ≤1S: flash once per second.
1. RTK mode: no differential data.
Off
2. Static mode: sampling has not started.
Satellite tracked
Flash Satellite not tracked
RTK5 Smart GNSS System User Manual
Description
