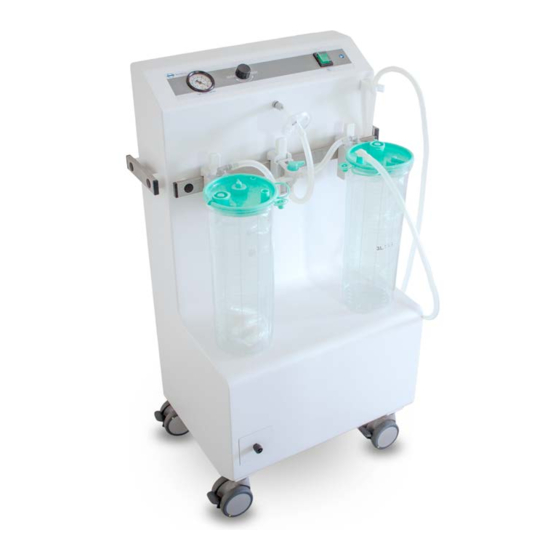

Atmos Record 55 Operating Instructions Manual
With standard rail
Hide thumbs
Also See for Record 55:
- Operating instructions manual (55 pages) ,
- Operating instructions manual (52 pages) ,
- Operating instructions manual (32 pages)
Subscribe to Our Youtube Channel
Related Manuals for Atmos Record 55
Summary of Contents for Atmos Record 55

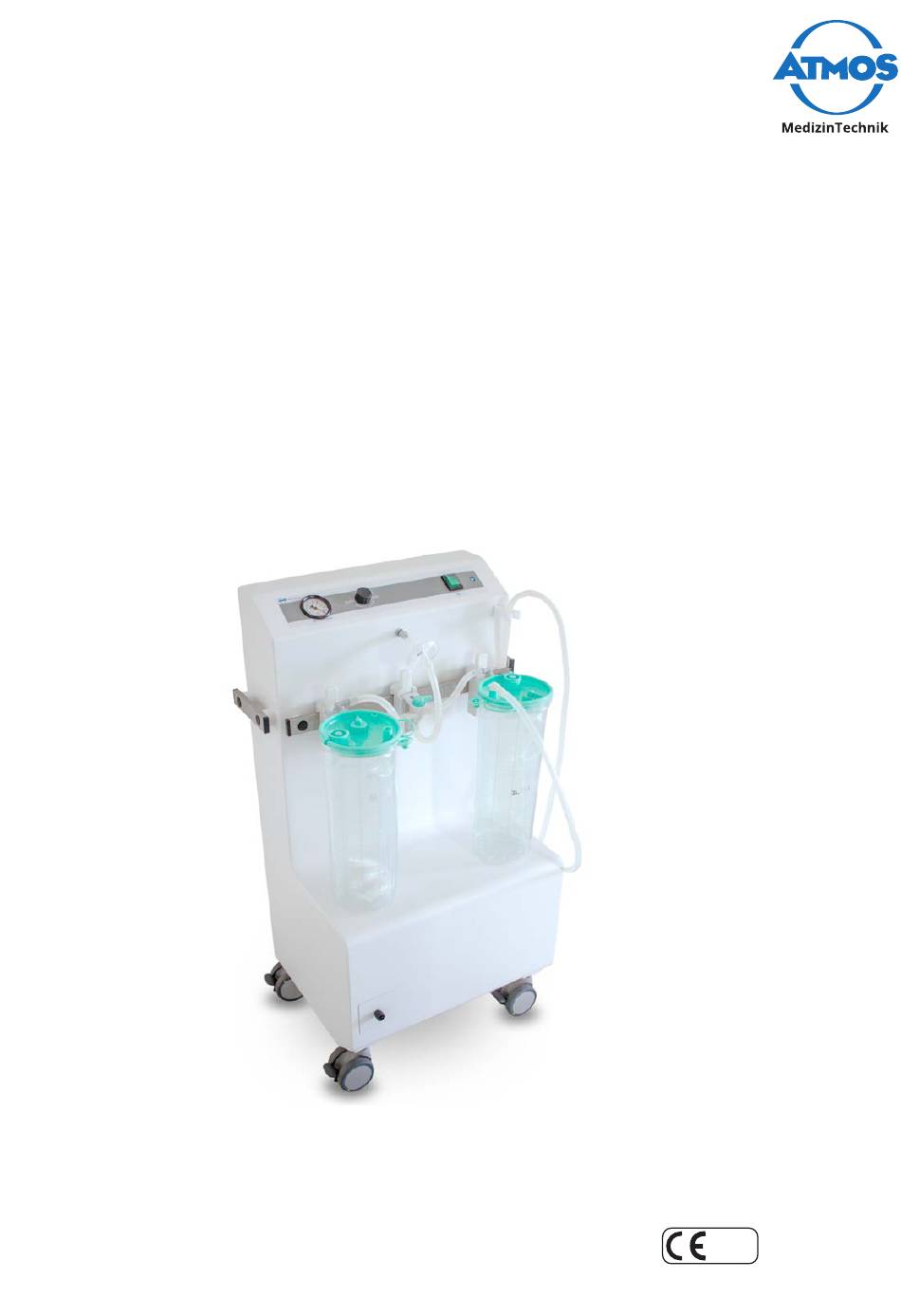

- Page 1 Operating Instructions ATMOS Record 55 with standard rail English GA1GB.210200.0 0124 2019-07 Index 24...
-
Page 2: Table Of Contents
Table of contents Introduction.......................4 Notes on operating instructions ................4 Explanation of pictures and symbols ..............5 Intended use .......................6 Function ........................7 Intended users ......................7 Scope of delivery ......................8 Transport and storage ....................8 Notices for your safety ..................9 General safety instructions ..................9 Danger for users, patients and third parties ............9 Avoid damage to the device................... - Page 3 Consumables ....................28 Disposal ......................29 Technical data ....................30 Notices on EMC ....................31 Further information, accessories, consumables and spare parts are available from: ATMOS MedizinTechnik GmbH & Co. KG Ludwig-Kegel-Straße 16 79853 Lenzkirch Germany Phone +49 7653 689-0 +49 7653 689-190 (Switchboard) +49 7653 689-393 (Service) E-Mail: info@atmosmed.de...
-
Page 4: Introduction
The quality management system at ATMOS has been certified according to international standard EN ISO 13485. These operating instructions are valid for the following devices: ATMOS Record 55 with standard rail 230 V REF 443.0700.0 ATMOS Record 55 with standard rail 100 V REF 443.0700.1 ATMOS Record 55 with standard rail 115 V REF 443.0700.2... -
Page 5: Explanation Of Pictures And Symbols
1.2 Explanation of pictures and symbols In the operating instructions DANGER Warning of a danger that will result in immediate fatal or serious injury. Observe the necessary measures. WARNING Warning of a danger that can cause fatal or serious injury. Observe the necessary measures. -
Page 6: Intended Use
Eurasian conformity Serial number Order number European Article Number Protection against the ingress of damaging moisture (dripping water) IPX1 Application part type BF Professional disposal For single use only (symbol located on consumables) Not sterile STERILE Autoclavable AUTOCLAVE Connection suction hose/patient (Serres® canister system) PATIENT Potential equalization Protection class II... -
Page 7: Function
1.4 Function The ATMOS Record 55 is a mains-operated surgical suction device, the core of which is a high-performance, maintenance-free diaphragm pump. It generates vacuum in the hose and rinsing canister system which assists in drawing off and collecting the secretions. -
Page 8: Scope Of Delivery
Only transport the device in a shipping carton, which is padded and offers sufficient protection. If damage occurs during transport: 1. Document and report the transport damage. 2. Send the device to ATMOS, see Chapter “6.3 Sending in the device” on page 24. Ambient conditions for transport and storage: • Temperature: -30...+50°C • Relative humidity: 5...90% without condensation... -
Page 9: Notices For Your Safety
“1.3 Intended use” on page 6. • Never operate the device in potentially explosive areas or areas which are oxygenated. • Only use original accessories and original spare parts from ATMOS. WARNING Risk of severe injury to your patient. Avoid misuse. •... - Page 10 • Prior to first use, the transport protection on the bottom of the device must be removed. • ATMOS always recommends having an alternative suction device ready to hand thus suction is available even in the event of device failure. WARNING Risk of infection due to pathogens on the product! Risk of deadly diseases being transmitted.
-
Page 11: Avoid Damage To The Device
Only use proper power cables and extension cables. • Never touch the device interface and the patient at the same time! • Only use original accessories and original spare parts from ATMOS. • Pay attention to the period tests in chapter 6.0 „Maintenance and service“. •... -
Page 12: Setting Up And Starting Up
3 Setting up and starting up 3.1 Device overview Front view Vacuum gauge Vacuum regulator On/Off switch Bacterial filter and connection piece Hose holder Connection for foot switch or foot controller (optional) Rear view ... -
Page 13: Operation
4 Operation 4.1 Initial start-up Observe the safety instructions prior to initial start-up! Remove the transport protection on the bottom of the device by loosening the two red marked Allen screws. The transport protection screws must be inserted again before a return transport of the device. -
Page 14: Connecting The Suction Hose
4.6 Connecting the suction hose • Attach the suction hose to the angled connection. 4.7 Serres®, Medi-Vac® secretion canister system, other canister systems Observe the operating instructions by the manufacturer of the corresponding canister system. Do not operate the device without a bacterial filter. 4.8 Secretion canister system •... -
Page 15: Using An Overflow Canister
4.10 Using an overflow canister If the bacterial filter becomes blocked too frequently, ATMOS recommends integrating an additional overflow canister (REF 444.0646.0) between the secretion canister and the bacterial filter. This absorbs moisture and foam bubbles occurring. An additional DDS bacterial filter can be used in the overflow canister. Replace the bacterial filter (REF 340.0054.0) with a new filter if it is discoloured, contaminated or oversucked. When the filter is used regularly, a filter change is recommended after 14 days at the latest. 4.11 Using a smoke evacuation filter According to the intended use, the device is used to suction liquids and pieces of tissue. -
Page 16: Checking The Bacterial Filter
4.13 Checking the bacterial filter ATTENTION The bacterial filter is a disposable product and cannot be autoclaved or disinfected. • Set the vacuum regulator to "max". • As soon as the vacuum gauge shows a vacuum value > -0.3 bar, while the suction hose is open, the filter must be replaced. • To do this, remove the suction connections on the bacterial filter and insert the new bacterial filter. Pay attention to the correct flow direction. • Dispose of the used bacterial filter immediately. Always have some spare filters ready to hand! 4.14 Exchanging the secretion canister 1. -
Page 17: Options
4.16 Options Foot switch REF 443.0755.0 Pneumatically explosion-proof switch for switching the device on and off. 1. Connect the foot switch. 2. Set the main switch in the control panel to foot switch operation (OFF). 3. When you press the foot switch the device is switched on. -
Page 18: Reprocessing
5 Reprocessing 5.1 Safety instructions for reprocessing 5.1.1 General safety instructions We recommend you to always document all maintenance work and part replacements in writing. It is the responsibility of the user to ensure that the demands for cleaning and disinfection are adhered to. -
Page 19: Preparing/Completing Reprocessing
Unsuitable cleaning agents and disinfectants. Risk of damage to the product. • Do not use any process chemicals which contain the following ingredients on plastic parts • Chloramide or phenol derivatives • Do not use any process chemicals which contain the following ingredients on stainless steel •... -
Page 20: Select Process Chemicals
5.3.2 Select process chemicals Always observe the manufacturer’s specifications for the process chemicals. Cleaning agent (manufacturer) Active ingredients in 100 g Type Disinfection Green & Clean SK <1 g of dialkyldimethylammonium chloride, <1 g of Foam (Metasys) alkyldimethylethylbenzylammonium chloride, <1 g of Ready for use alkyldimethylbenzylammonium chloride Dismozon® plus 95.8 g of magnesium peroxyphthalate hexahydrate Granulate (Bode Chemie) -
Page 21: Reprocessing The Accessories
5.4 Reprocessing the accessories 5.4.1 Overview Accessories Secretion canister system • Secretion canister • Canister lid • Twin hose nozzle • DDS-Bacterial filter Hoses • Suction hose • Vacuum hose • Vacuum hose Replace the DDS bacterial filter if it is discolored, soiled or oversucked, see Chapter 4.3. If there are visible defects/damage, accessories must be replaced. 5.4.2 Select process chemicals Always observe the manufacturer’s specifications for the process chemicals. - Page 22 Pretreatment at the site of use • Empty the rinsing canister • Flushing: 60 s • Clean the accessories under cold, running water. • Rinsing: 60 s • Thoroughly rinse the cavities and lumens of the accessories with running water. There is no more residue visible.
-
Page 23: Hoses
5.4.4 Hoses Pretreatment at the site of use • Clean the accessories under cold, running water. • Thoroughly rinse the cavities of the accessories with running water. There is no more residue visible. Collect and transport • Label any damaged accessories. •... -
Page 24: Maintenance And Service
ATMOS recommends: Work should be carried out by an authorised ATMOS service partner. This ensures that repairs and tests are carried out professionally, original spare parts are used and warranty claims are maintained. -
Page 25: Troubleshooting
7 Troubleshooting 7.1 Troubleshooting The product has been subjected to a thorough quality control in the factory. However if a fault should occur, you may be able to resolve it yourself. Error symptom Possible cause Remedy • Device does not •... -
Page 26: Accessories
8 Accessories Accessories Foot switch 443.0755.0 Foot controller ATMOS Record 55 443.0770.0 Potential equalization cable 008.0596.0 Secretion canister 1.5 l (PC) 444.0100.0 Secretion canister 3 l (PC) 444.0099.0 Secretion glass, with graduation, 1.5 l 444.0032.0 Secretion glass, with graduation, 3 l 444.0033.0... - Page 27 Accessories Storage tray, stainless steel 443.0790.0 Tray, diameter 20 cm HM57524538 Storage basket, dimensions 170 x 130 x 85 mm HM57508012 Catheter holder for trolley, dimensions 150 x 100 x 480 mm HM57508002 Catheter holder, dimensions 90 x 90 x 350 mm HM57505157 Catheter quiver HM57525150...
-
Page 28: Consumables
9 Consumables Spare part Bacterial filter for ATMOS DDS secretion canister, pack of 10 pcs. 340.0054.0 Hydrophobic bacterial and viral filter, Ø 11 mm 443.0738.0 Hydrophobic bacterial and viral filter, Ø 8 mm 444.0628.0 Smoke evacuation filter HM57524928 Suction hose, PVC, disposable, Ø 8 mm, L = 2,10 m, 50 pcs. 006.0059.0 Suction hose, silicone, Ø 6 mm, L = 1.30 m, 1 pcs. 000.0013.0 Suction hose, silicone, Ø 6 mm, L = 2 m, 1 pcs. -
Page 29: Disposal
The product does not contain any hazardous materials. 1. Clean and disinfect the device. 2. In Germany: Send the product back to ATMOS or your specialist dealer. They will dispose of the device professionally. 3. In other countries: Dispose of the product professionally and according to the country-specific laws and regulations. -
Page 30: Technical Data
11 Technical data Unit suction capacity 55 ± 3 l/min Max. vacuum -98 kPa (-980 mbar or -735 mmHg) Vacuum display -1...0 bar ± 25 mbar Vacuum regulator Mechanical regulation valve Suction hose Ø 6 mm, 2 m long Ø 10 mm, 2 m long Nominal voltage 230 V~, 50/60 Hz Nominal current... -
Page 31: Notices On Emc
RF shielded room of a magnetic resonance imaging system. The customer or user of the ATMOS Record 55 must ensure that it is used in such an environment. Guidance and manufacturer's declaration - key features ... - Page 32 ATMOS MedizinTechnik GmbH & Co. KG Ludwig-Kegel-Straße 16 79853 Lenzkirch/Germany Phone: +49 7653 689-0 atmos@atmosmed.de www.atmosmed.com...
