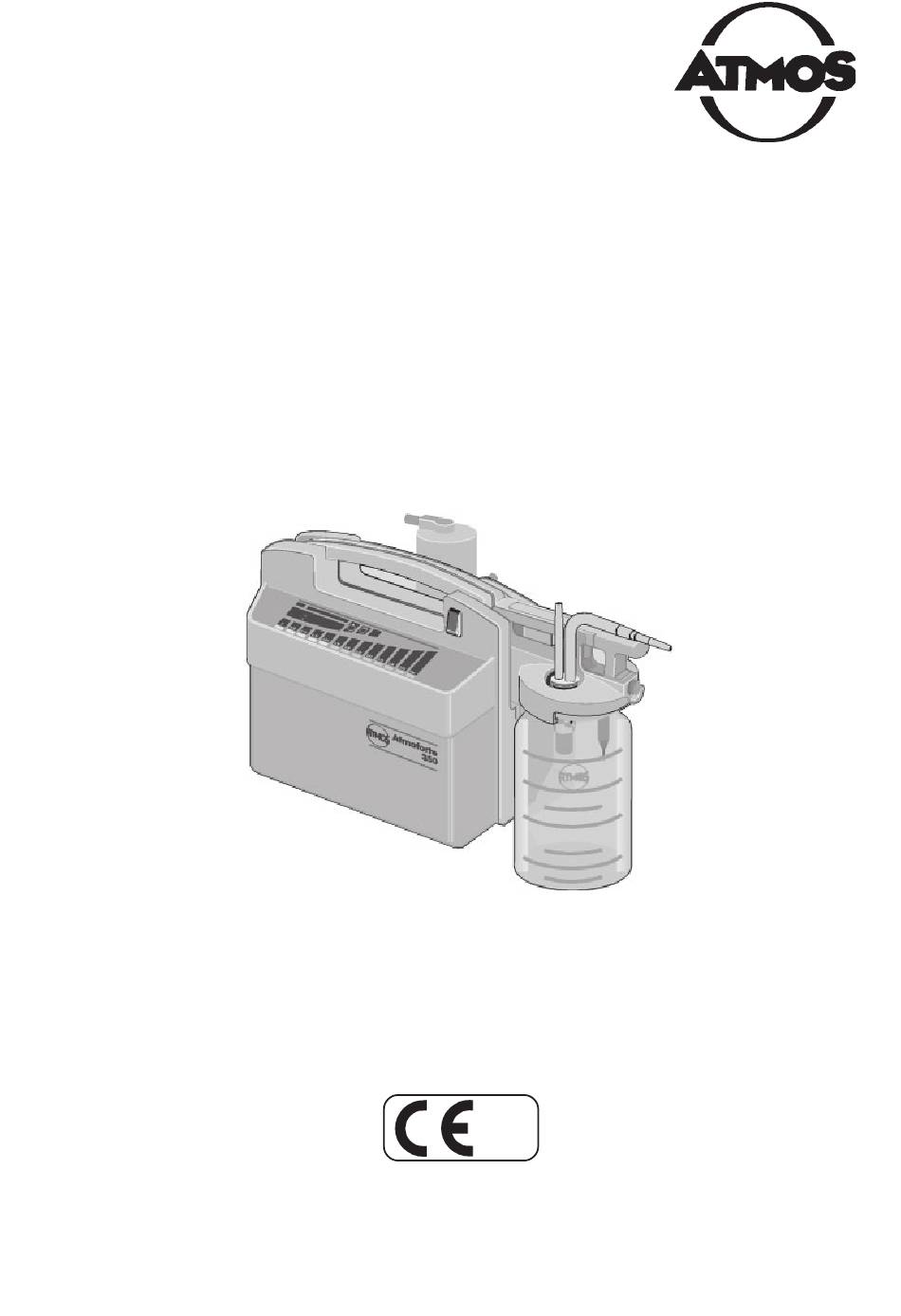

- Page 1 MedizinTechnik Atmoforte 350 Record 500 Operating instructions 0124 444.0350.B DF.01...
- Page 2 CE-0124 in accordance with the Council – if assembly, readjustment, modification, extension, Directive 93/42/EEC about medical devices and fulfills or repair is carried out by ATMOS or by persons the essential requirements of Annex I of this directive. authorized by ATMOS –...
-
Page 3: Table Of Contents
Contents Page Application and Functional Description 1.1 Intended Use ................4 1.2 Function ................... 5 1.3 Safety information ..............6 Operating Controls and Indicators ........7 - 8 First-Time Operation ............. 9 - 12 Operation ................14 - 19 4.1 General points to note during Operation ....... 14 4.2 Suction Mode (Standard Mode) ........ -
Page 4: Application And Functional Description
1. Application and Functional Description Intended Use The Atmoforte 350/Record 500 is a compact suction unit for medical application. It is especially intended for aspiration and collection of secretions, body fluids and tissue. Its main fields of application are: –... -
Page 5: Function
Function The Atmoforte 350/Record 500 is a line-power operated Secretions must not be allowed to enter the pump. suction unit, centering around a silent, maintenance-free If this happens in spite of fill-level monitoring and diaphragm pump which produces a vacuum inside the overflow protection (fluid trap), the Atmoforte 350/ collection jar for aspiration and collection of the secretions. -
Page 6: Safety Information
1.3 For your Safety • • Dispose of the packaging material, observing the Install the Atmoforte 350/Record 500 only on vibration- applicable waste-control regulations. free surfaces. • • The design of the Atmoforte 350/Record 500 fulfills The suction tube must never come into direct contact the requirements of IEC 601/EN 60601 and of with the application site. -
Page 7: Operating Controls And Indicators
2. Operating Controls and Indicators Fig. 2. Atmoforte 350/Record 500 Fixation and contact element for collection jar Connection piece for suction pump Fluid trap with filter Fixation for collection jar Connection piece for tube connecting the fluid trap Connection piece for suction tube... - Page 8 Fig. 3. Atmoforte 350/Record 500 (rear view) Power input Fuses Potential equalization pin Pedal regulator port Explanation of Symbols as Used on the Unit Automatic standby on/off Caution: Refer to operating instructions "Clogged filter"/Max. fill level exceeded" Instrument fuse Malfunction indicator...
-
Page 9: First-Time Operation
– how to handle the lid system of the collection jar – how to close and insert the collection jar – how and where to connect the tubes – how to connect the Atmoforte 350/Record 500 to the power line Before putting the device into operation for the first time, do not fail to read section 1.3 "For your... - Page 10 Suspending the collection jar 3 or 5-liter jars are suspended on the trolley as per Fig. 7. When placed on the trolley, the Atmoforte 350/ Record 500 must be firmly secured to the trolley storage tray by means of the two screws (underside of the tray) to ensure good contact for monitoring of the fill level.
- Page 11 • Insert the double socket nipple in the lid (Fig. 8). It is important that you hear it lock into place. Fig. 8. Inserting the double socket nipple • Use the short piece of tubing to connect the pump connection piece to the nipple of the filter and, the long tube to connect the vertical connection piece...
- Page 12 • Slide the suction tube onto the horizontal connection piece to the double socket nipple. Fig. 10. Connecting the suction tube Connect the 10-mm suction tube directly to the connection piece . For the thin 6-mm tube you will have to add the tube adapter Fig.
- Page 13 (Fig. 12). * If you have purchased the optional pedal regulator, connect it to port The Atmoforte 350/Record 500 is now ready for operation. Fig. 12. Atmoforte 350/Record 500 Rear view. Power input Potential equalization pin Pedal regulator port Fig.
-
Page 14: Operation
– the collection jar incl. lid and double socket nipple – the connection tube to the fluid trap as well as the – how to operate the Atmoforte 350/Record 500 as fluid trap and the bacterial filter. a suction unit (normal range, low vacuum range) and how to replace and empty the collection jar –... -
Page 15: Suction Mode (Standard Mode)
Push one of keys , Fig. 16, to select the desired target vacuum (the vacuum is given in bar). The Atmoforte 350/Record 500 starts up and begins to build up the vacuum. As the vacuum increases, the indicators corresponding to the vacuum attained light up one after the other. - Page 16 Exchanging the Collection Jar • Interrupt the procedure and switch off the pump. • Remove the double socket nipple from the jar (Fig. 18). If a second collection jar has been installed, insert the double socket nipple there. • The jar is easy to remove if you tilt it a little away from the device and then lift it off (Fig.
-
Page 17: Suction Mode (Low Vacauum Range)
Suction Mode (Low Vacuum Range) For applications requiring a low vacuum, you can choose The Atmoforte 350/Record 500 starts up and begins to build up the vacuum. As the vacuum increases, the between two operating modes. indicators corresponding to the vacuum attained light up one after the other. - Page 18 • Connect the aspiration set to the suction tube. Operation • Turn on the Atmoforte 350/Record 500: the indicator in the power switch must light up! • Press the ”0”key (Fig. 20) to enable selection of the fine-control suciton mode ("drainage"displays).
-
Page 19: Vacuum Extraction
Automatic vacuum build-up In the automatic mode, the Atmoforte 350 / Record 500 builds up the vacuum at an even pace, so that the target vacuum is reached in approx. 2 minutes. An audio signal indicates that the selected vacuum has been attained. -
Page 20: Cleaning And Maintenance
5. Cleaning and Maintenance Cleaning and Sterilizing the Tubes and the Collection All parts of the suction system which come into contact with the secretions must be cleaned and sterilized after each application and before being used again on a new patient. - Page 21 Cleaning and Disinfecting the Device Surface • Always disconnect the device from the power line, • After sterilization, place the filter on a sterile cloth and before cleaning and disinfecting the surface. let it dry to some hours. • Wipe the surface clean with a cloth moistened with a •...
- Page 22 Recommended desinfectants for instruments Produt Ingredients (in 100 g) Manufacturer GIGASEPT FF succinic acid dialdehyde Schülke & Mayr, Norderstedt (conc.) dimethoxy-tetrahydrofurane anticorrosive components non-ionogenic tensides and perfumes PRONTOCID formaldehyde 4,5 g Braun, Melsungen (conc.) glutaric dialdehyde 3,5 g glyoxal 2,5 g quaternary ammonium compounds 7,0 g Sekusept PLUS...
-
Page 23: Troubleshooting
– collection jar full – empty collection jar monitoring is lit) – contacts short-circuited – remove metal connections of Atmoforte 350/Record 500 switches off the contact element (also check rails on trolley) Alarm during suction application – collection jar full –... - Page 24 Atmoforte 350/Record 500 whether the Atmoforte 350/ Record 500 is correctly screwed onto the trolley Alarm during suction application, – excessive foam, foam bubbles –...
-
Page 25: Spare Parts And Accessories
Spare parts and Accessories 7.1 Spare Parts Designation Art.-No. Fluid trap (glass) 000.0504.0 Fluid trap (assembled) 444.0080.0 Silicone tube 443.0046.0 Double socket nipple 444.0012.0 Tube adapter 444.0013.0 Suction tube 6 mm, 1,25 m 000.0013.0 Suction tube 6 mm, length to order 006.0009.0 Suction tube 10mm, 1,25 m 000.0243.0... - Page 26 Designation Art.No. Double socket nipple (assembled) 444.0012.0 O-ring 6 mm Ø (min. 5/order) 055.0069.0 Tube adapter 444.0013.0 O-ring 23 mm Ø (min. 5/order) 055.0073.0 O-ring 14 mm Ø (min. 5/order) 055.0072.0 Contact spring washer 444.0079.0 Spare Parts (not shown) Fuse 230 V, slow blow, 1 A/H 008.0471.0 Fuse 115 V, slow blow, T 1 A/H 088.0080.0...
-
Page 27: Accessories And Supplies
7.2 Accessories and Supplies Disposable Suction Systems Collection Jars Collection jar, with scale 1.5 l 444.0032.0 Receptal container set I, 444.0022.0 ® comprising 2 collection containers Collection jar, with scale 3 l 444.0033.0 KG 1600 C, 2 Receptal collection bags ®... -
Page 28: Technical Specifications
Technical Specifications Air flow rate 36 ± 2 l/min Dimensions H 300 x W 350* x D 200 mm Atmoforte 350 45 ± 2 l/min (w/o.trolley) Record 500 Max. vacuum Weight w/o. trolley 10.5 kg* Atmoforte 350 approx. 80 kPa max.
