Summary of Contents for Atmos S 61 CORIAN integral

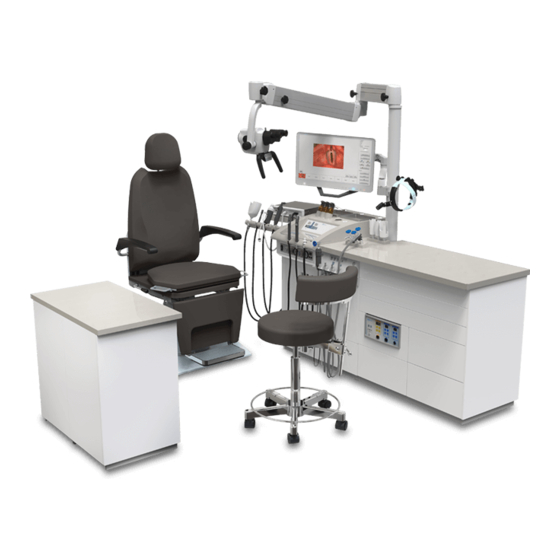

- Page 1 Operating Instructions ATMOS S 61 CORIAN® instruments ATMOS S 61 CORIAN® integral English GA1GB.110107.0 2022-12 Index 02...
-
Page 2: Table Of Contents
Setting up and starting up ................12 Device overview ....................... 12 Preparing the device ....................12 Operation ......................13 Ambient conditions during operation ..............13 4.2 Switching on the device (ATMOS S 61 CORIAN® integral) ........13 4.3 Switching off the device (ATMOS S 61 CORIAN® integral) ........13 Using the drawers ....................13 4.5 Using the drawer for devices (optional) ............... 14 4.6... - Page 3 Maintenance and service ................25 Periodic tests ......................25 Function check ......................25 Sending in the device ....................26 Troubleshooting ....................27 Accessories ......................28 Disposal ......................29 Technical data ....................30 Notes on EMC ....................33...
-
Page 4: Introduction
This document may only be reprinted, either in part or in whole, with written permission from ATMOS. These operating instructions must always be kept to hand near the device. -
Page 5: Explanation Of Pictures And Symbols
1.2 Explanation of pictures and symbols In the operating instructions DANGER Warning of a danger that will result in immediate fatal or serious injury. Observe the necessary measures. WARNING Warning of a danger that can cause fatal or serious injury. Observe the necessary measures. -
Page 6: Intended Use
Product name: ATMOS S 61 CORIAN® instruments ATMOS S 61 CORIAN® instruments XXL Main functions: • Instrument storage and deposit. • For expansion of the ATMOS S 61 Servant ENT workstation. Intended purpose: Standard ENT examination and / or therapy Intended Users / User Doctors and medical specialists... - Page 7 Not sterile status: Single use product / Not a single use product. Reprocessing according to reprocessing: instructions for use. Name: ATMOS S 61 CORIAN® integral Main functions: • Electric power supply for visualization, illumination and illumination accessories • Instrument storage and deposit Intended purpose: Standard ENT examination and / or therapy Intended users / User...
-
Page 8: Function
Reprocessed endoscopes can be stored for short periods of time. 1.5 Scope of delivery ATMOS S 61 CORIAN® instruments ATMOS S 61 Operating instruc- Servo-Drive® Operating instructions CORIAN® tions Servo-Drive® instruments ATMOS S 61 CORIAN® instruments XXL ATMOS S 61 Operating instruc- Servo-Drive® Operating instructions CORIAN® tions Servo-Drive® instruments XXL ATMOS S 61 CORIAN® integral ATMOS S 61... -
Page 9: Transport And Storage
Only transport the device in a shipping carton that is padded and offers sufficient protection. If damage occurs during transport: 1. Document and report the transport damage. 2. Send the device to ATMOS; see chapter “7.3 Sending in the device” on page 26. Environmental conditions for transport and storage: • Temperature: -10...+50 °C • Air humidity without condensation: 30...95 % without condensation •... -
Page 10: Notes For Your Safety
2 Notes for your safety Please read and pay attention to the safety instructions prior to using the product. 2.1 General safety instructions Report all serious incidents that have occurred in connection with this device to the manufacturer and your national competent authority. Only use accessories and options that are specifically suited for combination with the product and that meet the performance and safety requirements. -
Page 11: Avoiding Damage To The Device
Observe the specifications regarding periodic tests in chapter “7.1 Periodic tests” on page 25. • Do not modify the device without the manufacturer’s permission. • Only use original accessories and original spare parts from ATMOS. • Assembly, new settings, modifications, extensions, and repairs may only be carried out by persons who are authorized by ATMOS. 2.3 Avoiding damage to the device Storage and operation in an unsuitable environment. -
Page 12: Setting Up And Starting Up
Light source output (optional) Drawer USB connections (optional) Endoscope holder (optional) Storage space for ATMOS devices (optional) Drawer for devices (optional) ATMOS LED Light Cube CORIAN® control panel (optional) Select light source Brightness display Brightness control Stroboscopy mode 3.2 Preparing the device 1. Arrange for an authorized ATMOS service partner to connect the device. 2. Perform a function check; see chapter “7.2 Function check” on page 25. -
Page 13: Operation
» The ATMOS S 61 CORIAN® integral is now switched on. 2. If necessary, switch on the devices stored in the ATMOS S 61 CORIAN® integral. Observe the corresponding operating instructions. 4.3 Switching off the device (ATMOS S 61 CORIAN®... -
Page 14: Using The Drawer For Devices (Optional)
4.5 Using the drawer for devices (optional) Inserting a device 1. Press against the drawer for devices » The drawer for devices will open. 2. Insert the device 3. Close the drawer for devices Removing a device 1. Press against the drawer for devices »... -
Page 15: Using Light Sources (Optional)
4.8 Using light sources (optional) 4.8.1 Connecting the fiber optic light cable 1. Insert the fiber optic light cable into the LED Light Cube adapter until it clicks gently into place. 4.8.2 Removing the fiber optic light cable 1. Pull the fiber optic light cable out of the LED Light Cube adapter 4.8.3 Changing the adapter 1. Pull the fiber optic light cable out of the LED Light Cube adapter 2. -
Page 16: Stroboscopy Capability Of The Light Source (Optional)
The brightness setting for stroboscopy mode is made via the ATMOS Strobo 21 LED. Observe the operating instructions for the ATMOS Strobo 21 LED. The display of the brightness also applies here, as described in point 3 of chapter 4.8.5 “Adjusting brightness.”... -
Page 17: Storing Endoscopes (Optional)
Flexible endoscopes If your product comes with heated endoscope quivers, these will be heated for as long as the ATMOS S 61 Servant ENT workstation remains switched on. After approx. 15 minutes, the endoscopes will reach a temperature of approx. -
Page 18: Cleaning And Disinfection
Risk of diseases being transmitted. • Wear disposable gloves during all cleaning and disinfection measures. • If the CORIAN® surface is scratched or contaminated with difficult-to-remove soiling, please contact ATMOS. • Clean and disinfect the product according to the operating instructions. 5.1 Reprocessing the product 5.1.1 Reprocessing the endoscope quivers Reprocess endoscope quivers daily. -
Page 19: Reprocessing The Instrument Trays
Metal sheet, coated Drawer, inside Rear side Other ATMOS LED Light Cube CORIAN® 1. Switch off the device. 2. Remove all the accessories. 3. Clean all the surfaces with a damp, clean, lint-free cloth and a cleaning agent. 4. Disinfect the surfaces with a clean, lint-free cloth and a suitable surface disinfectant;... -
Page 20: Recommended Disinfectants
5.2 Recommended disinfectants NOTICE Unsuitable disinfectants. Risk of damage to the surface, corrosion damage, and stress cracks. • Only use disinfectants recommended by ATMOS. • Do not use process chemicals that contain any of the following ingredients on CORIAN® surfaces: • Strong acids (e.g., concentrated sulphuric acid) •... -
Page 21: Instrument Disinfectants
Disinfectant Ingredients In 100 g Manufacturer terralin® protect Benzyl-C12-16 alkyldimethyl-, chloride 22 g Schülke (Application & Mayr, 2-phenoxyethanol 17 g concentrate) Norderstedt Aminoalkylglycine 0.9 g Non-ionic surfactants, perfumes Other surfaces Disinfectant Ingredients In 100 g Manufacturer Green & Clean SK Di alkyl dimethyl ammonium chloride <... - Page 22 Disinfectant Ingredients In 100 g Manufacturer Sekusept® aktiv Sodiumpercarbonate, non-ionic surfactants, Ecolab, (Application phosphonates Düsseldorf concentrate) gigasept® instru AF Cocospropylendiaminguanidindiacetate 14 g Schülke (Application & Mayr, Phenoxypropanols 35 g concentrate) Norderstedt Benzalkonium chloride 2.5 g Non-ionic surfactants, pH-value regulators, corrosion inhibitors gigasept® FF (new) Succindialdehyde 11.9 g Schülke (Application...
-
Page 23: Hygiene Plan
6 Hygiene plan Cleaning and disinfection plan ATMOS S 61 CORIAN ® What When Qualified and trained staff who are familiar Notes with reprocessing (please fill in the re- Parts to be reprocessed Cleaning Disinfection Sterilization sponsible person -> use a water-based... - Page 24 Protect (Schülke & Mayr) ® • neodisher FA (Dr. Weigert) ® ATMOS MedizinTechnik cannot be held liable for • Surface disinfectant FD 312 (Dürr Dental) • neodisher MediClean forte (Dr. Weigert) ® any damage to materials caused by using wrong •...
-
Page 25: Maintenance And Service
Maintenance, repairs, and periodic tests may not be carried out while the product is being used on the patient. 7.1 Periodic tests ATMOS S 61 CORIAN® instruments / ATMOS S 61 CORIAN® instruments XXL None ATMOS S 61 CORIAN® integral Observe the specifications for the individual components. -
Page 26: Sending In The Device
This form is enclosed with each delivery and can be found at www.atmosmed.com. 5. The device must be well padded and packed in suitable packaging. 6. Place the QD 434 “Delivery complaint/return shipment” form and the corresponding decontamination certificate in an envelope. 7. Affix the envelope to the outside of the package. 8. Send the product in to ATMOS or your dealer. 26 Maintenance and service... -
Page 27: Troubleshooting
Possible cause Remedy No light Device is not switched 1. Switch on the device. Defective power cable. 1. Observe the operating instruc- tions for the ATMOS S 61 Servant Defective fuse. ENT workstation. Insufficient light. LED Light Cube adapter 1. Check whether the fiber optic not attached correctly. -
Page 28: Accessories
9 Accessories Accessories Stand (ATMOS S 61 Servant) 534.0119.0 Slanted microscope column 534.0170.0 Monitor arm ATMOS S 61 ENT professional 534.3020.0 Monitor holder (shelf adapter / ATMOS S 61 system) 534.3095.0 Shelf for storage device 538.2120.0 Shelf, small (metal) 541.1600.0 Shelf, broad (metal) 541.2700.0 Instrument tray, small (melamine) 000.0746.0 Instrument tray, small (aluminium) 508.0058.0 Fixation adapter plastic quiver 508.0782.0 Instrument disposal bowl 506.7751.0... -
Page 29: Disposal
10 Disposal Packaging 1. Please recycle the packaging. Product Do not dispose of the product together with household waste. The product does not contain any hazardous materials. 1. Clean and disinfect the device. 2. Dispose of the product professionally and in accordance with country-specific laws and regulations. The housing is fully recyclable. Nevertheless, always take care to observe country- specific laws and regulations. -
Page 30: Technical Data
11 Technical data ATMOS S 61 CORIAN® instruments / ATMOS S 61 CORIAN® instruments XXL Environmental conditions: Transport/Storage • Temperature range: -10...+50°C • Air humidity without 30...95 % condensation: • Air pressure: 500...1060 hPa Environmental conditions: Operation • Temperature: +10...+35°C • Air humidity without 30...95 %... - Page 31 Earth leakage current max. 0,5 mA Housing leakage current max. 0,1 mA Patient leakage current max. 0,1 mA Protection class against electric shock (acc. to EN 60601-1) Contamination level Overvoltage category ATMOS S 61 CORIAN® integral Mains voltage 230 V~ ± 10 %; 50/60 Hz special voltage: 100-127 V~ ± 10 %; 50/60 Hz Current consumption: max. 1,1 A (230 V~) max. 2.2 A (100 V~) Power consumption: max. 580 W Other power sources:...
- Page 32 Overvoltage category Dimensions (H x W x D): 82 x 115 x 60 cm Weight: max. 230 kg Periodical tests: Repeat test of the electrical safety every 12/ 24 months. Recommended: inspection according to manufacturer’s specifications. Protection class against electric shock (acc to EN 60601-1) Degree of protection against np applied parts electric shock Degree of protection against IP X0 Ingress CE mark Ident-No. (REF) Integral 532.0800.0 * Important: Note on MPBetreibV only for devices that are listed there accordingly! Connection values of the isolating transformer Mains voltage...
-
Page 33: Notes On Emc
HF-shielded room of a magnetic resonance imaging system. The customer or user of the ATMOS S 61 CORIAN® integral must ensure that it is used in a prescribed environment. Guidance and manufacturer’s declaration – key features ... - Page 34 ATMOS MedizinTechnik GmbH & Co. KG Ludwig-Kegel-Str. 16 79853 Lenzkirch/Germany Phone: +49 7653 689-0 info@atmosmed.com www.atmosmed.com...
