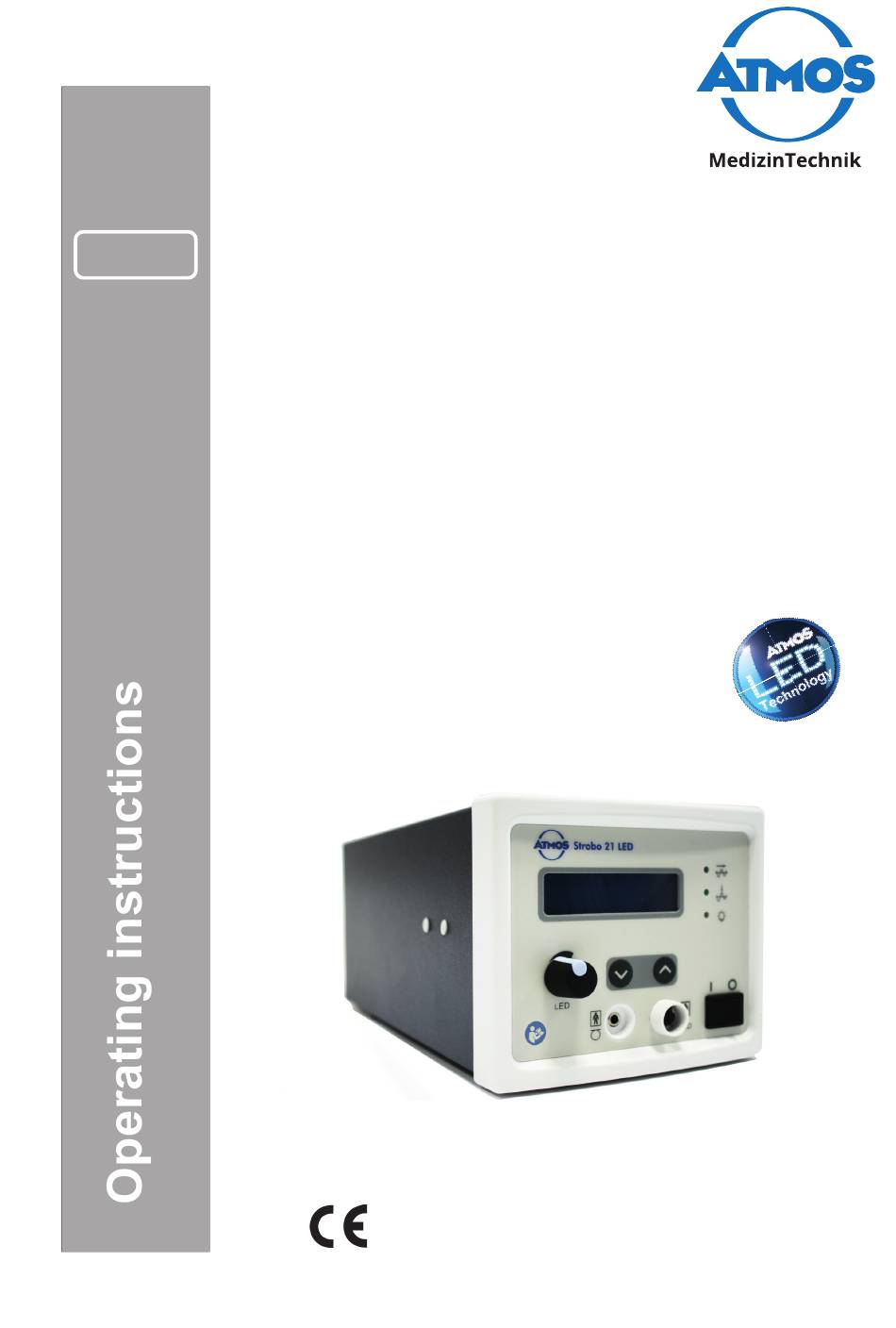

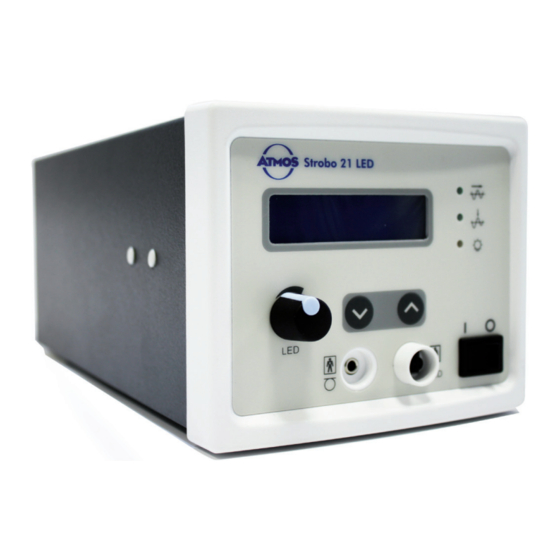

- Page 1 English ATMOS Strobo 21 LED GA1GB.150211.0 2021-05 Index: 32...
-
Page 3: Table Of Contents
Setting up and starting up .........7 Scope of supply ........... 7 Connections ............7 Mounting the holder for light source......7 Starting up.............8 3.4.1 Connection diagram ATMOS Cam 31 DV DATA and ATMOS Strobo 21 LED .........9 Operation ............10 4.1 Switching on and off ..........10 Functions of display ..........10 4.2.1... -
Page 4: Introduction
1.1 Notes on operating instructions In the following all device versions, as well as all modules and table-top devices are named ATMOS Strobo 21 LED! These operating instructions contain important notes on how to operate the ATMOS Strobo 21 LED safely, correctly, and eff ectively. Their reading helps to avoid risks and also to reduce repair costs and... -
Page 5: Function
1.0 Introduction Patient selection criteria: None Indications: General examination of the larynx, voice problems Medical contra-indications: None Other contra-indications: None Warnings: None The product is: Active Sterility / specifi c microbial Non sterile status: Single use product / No single-use product. Reprocessing according to instructions for use. reprocessing: 1.3 Function The device is intended to record and analyze the frequency and sound pressure level of a voice. It can trigger a light source... -
Page 6: For Your Safety
cation EN 60601-1-1. When additional • ATMOS neither guarantees for fault-free op- equipment is connected to the signal input or • The ATMOS Strobo 21 LED may only be eration nor for personal injuries and damage signal output section on the device, the per-... -
Page 7: Setting Up And Starting Up
Connection holder for light handle ATMOS LS 21 LED with switching function Optional connection for the MediaStroboscope Audio output (Line-out) Connection for foot controller DATA Interface No function Connection for potential equalisation Nut for mains supply 3.3 Mounting the holder for light handle (not applicable for ATMOS Roadster) -
Page 8: Starting Up
3.0 Setting up and starting up 3.4 Starting up Please pay attention, just to switch on the devices after they have been completely wired. ATMOS Strobo ATMOS Cam 31 DV Data 21 LED 3. Generation (Not applicable for ATMOS Cam 21 / 31, 2. -
Page 9: Atmos Strobo 21 Led
3.0 Setting up and starting up 3.4.1 Connection diagram ATMOS Cam 31 DV Data, 3. Generation and ATMOS Strobo 21 LED ATMOS Cam 31 DV Data Foot con- Handle support troller LED light source ATMOS Strobo ATMOS Cam 31 DV Data... -
Page 10: Operation
4.0 Operation 4.1 Switching on and off Prior to each use, a function check has to be performed. See chapter 6.0 “Service and Maintenance”. Switching on Switching off After switching on the device it takes a few seconds until it is ready for operation. 4.2 Functions of display 4.2.1 Indication during examination 4.2.2 Indication after examination Frequency (pitch) Ø-value mean frequency and Ø-volume after phonation Volume (Sound pressure level) Change of contrast ...or... -
Page 11: Adjustment Of Display
4.0 Operation 4.2.3 Setting menu Access „Setting Menu“ Select menu The display indi- Select submenu cates „Startup” release key and keep pressed Confirm, „Set“, „Continue“ Adjustable submenus (see next page) SPL Unit: Setting dB or dBA Slow Motion: 0.5: 1 oscillation / 2 sec ... - Page 12 4.0 Operation Adjustment of menu Confi rm / Back Changing the to the relative submenu submenu Display indicates„Please switch off and on again“ Exit the menu, back to indication for examination...
-
Page 13: Examination
Operating mode of brightness control: In case the picture becomes more blurred when the brightness is increased: The ATMOS Strobo 21 LED fl ashes with 2 Watt. For generating a brighter image, the illumination has to be longer. This entails that the vocal cord oscillates fractionally at this moment. The tiny movement reclined during the exposure time is perceived blurred. -
Page 14: Handling The Foot Controller
The device can be operated with other ATMOS light sources or other ATMOS devices with integrated light sources e.g. with an ATMOS Scope. During the operation with other devices the light handle ATMOS LS 21 LED can remain in the light source... -
Page 15: Cleaning And Care
5.0 Cleaning and care 5.1 General information on cleaning and disinfection The composition of plastic, varnish and colours as well as cleansers and disinfectants change continuously. Therefore, prior to fi rst use always test the cleaning agent on the underside of the device! Prior to cleaning • If required, wipe the device with a cloth moistened with a cleaning solu- tion and disinfect the application parts which come into contact with the patient. -
Page 16: Maintenance And Service
This form is enclosed with each delivery and can be found at www.atmosmed.de. • The device must be well padded and packed in suitable packaging. • Place form QD 434 “Delivery complaint / return shipment” and the respective decontamination certifi cate in an enve- lope. • Affi x the envelope to the outside of the package. • Send the product to ATMOS or your dealer. -
Page 17: Troubleshooting
7.0 Troubleshooting Description Possible causes of error Measures No indication from the device Power plug is fitted badly Check fitting of the power plug at the mains power and at the device No mains voltage available Check the main fuse Defective fuse Check fuses Indication is illegible Insufficient contrast Adjust contrast by pressing the ‚up‘ and ‚down‘ button (see chapter 4.1.1). Blurred image For technical reasons the vocal Reduce the brightness of the LED light source. -
Page 18: Technical Data
118 mm x 139 mm x 280 mm Weight 5 kg Repeat test of electrical safety every 24 months. Periodic tests Recommended: inspection according to manufacturer's specifications. Protection class (EN 60601-1) Degree of protection Type of protection IPX1 CE marking 507.4700.0 ATMOS Strobo 21 LED 531.2050.0 ATMOS Strobo 21 LED (S 61 Servant Vision) -
Page 19: Disposal
9.0 Disposal • The materials of the housing can be recycled completely. • The ATMOS Strobo 21 LED does not contain any hazardous goods. • The component parts of the ATMOS Strobo 21 LED must be disposed of correctly and the materials are to be separated carefully. -
Page 20: Notes On Emc
HF-shielded room of a magnetic resonance imaging system. The customer or user of the ATMOS Strobo 21 LED must ensure that the device is used in a prescribed environment. Guidance and manufacturer’s declaration – key features ... -
Page 21: Notes
11.0 Notes... - Page 22 11.0 Notes...
- Page 23 11.0 Notes...
- Page 24 ATMOS MedizinTechnik GmbH & Co. KG Ludwig-Kegel-Str. 16 79853 Lenzkirch / Germany Phone: +49 7653 689-0 info@atmosmed.com www.atmosmed.com...
