- Page 1 Operating Instructions ATMOS Record 55 English GA1GB.210202.0 0124 2020_06 Index 26...
- Page 2 Table of contents Introduction.......................4 Notes on operating instructions ................4 Explanation of pictures and symbols ..............5 Intended use .......................7 Function ........................7 Intended users ......................8 Scope of delivery ......................8 Transport and storage ....................9 Notes for your safety..................10 General safety instructions ..................10 Danger for users, patients, and third parties ............
- Page 3 Disposal ......................28 Technical data ....................29 Notes on EMC ....................30 Notes ........................31 Further information, accessories, consumables, and spare parts are available from: ATMOS MedizinTechnik GmbH & Co. KG Ludwig-Kegel-Straße 16 79853 Lenzkirch Germany Phone +49 7653 689-0 +49 7653 689-190 (Switchboard) +49 7653 689-393 (Service) E-mail: info@atmosmed.de...
- Page 4 REF 444.0910.1 ATMOS Record 55 DDS 115 V REF 444.0910.2 ATMOS Record 55 DDS 127 V REF 444.0910.3 ATMOS Record 55 DDS (2 x 3 l secretion REF 444.0930.0 canister) ATMOS Record 55 DDS (2 x 5 l secretion REF 444.0940.0...
- Page 5 1.2 Explanation of pictures and symbols In the operating instructions DANGER Warning of a danger that will result in immediate fatal or serious injury. Observe the necessary measures. WARNING Warning of a danger that can cause fatal or serious injury. Observe the necessary measures.
- Page 6 GOST Certificate (Russia) Eurasian conformity Serial number Order number European Article Number IPX1 Protection against the ingress of damaging moisture (dripping water) Applied part type BF Professional disposal For single use only (symbol located on consumables) Not sterile STERILE Autoclavable AUTOCLAVE PATIENT Connection for suction hose/patient Potential equalisation Protection class II...

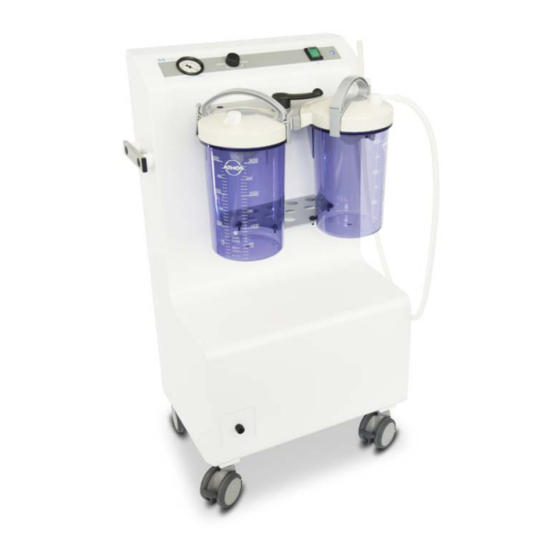

- Page 7 1.4 Function The ATMOS Record 55 DDS is a mains-operated surgical suction device, the core of which is a high-performance, maintenance-free diaphragm pump. It generates vacuum in the hose and rinsing canister system which assists in drawing off and collecting the Introduction...
- Page 8 Several secretion canisters of different sizes are available for secretion collection. The reusable secretion canister can be mounted to the ATMOS Record 55 via the Direct Docking System. The user can connect the suction hose directly. A hydrophobic bacterial filter located in the lid of the canister prevents bacteria and liquids from entering the pump. This filter protects the device against oversuction. The intake located in the hose connection prevents foaming in the secretion canister and therefore ensures a longer filter life.
- Page 9 Only transport the device in a shipping carton that is padded and offers sufficient protection. If damage occurs during transport: 1. Document and report damages in transit. 2. Send the device to ATMOS; see chapter 24‘6.3 Sending in the device’ on page 24. Ambient conditions for transport and storage: • Temperature: −30...+50 °C • Relative humidity: 5...90% without condensation...
- Page 10 ‘1.3 Intended use’. • Never operate the product in potentially explosive areas or areas that are oxygenat- • Only use original accessories and original spare parts from ATMOS. WARNING Your patient can be severely injured. Avoid misuse.
- Page 11 • Remove the transport protection on the bottom of the device prior to first use. • ATMOS recommends always having another suction device ready at hand. That way you can also perform suctioning if a device should fail. WARNING Risk of infection due to pathogens on the product! Deadly diseases may be transmitted.
- Page 12 Only use proper power cables and extension cords. • Never touch the device's interfaces and the patient at the same time! • Only use original accessories and original spare parts from ATMOS. • Pay attention to the periodic tests in chapter ‘6 Maintenance and service’. •...
- Page 13 3 Setting up and starting up 3.1 Device overview Front view Vacuum gauge Vacuum regulator On/off switch DDS canister handle DDS canister lid DDS secretion canister Connection for the foot controller or foot switch (optional) Rear view ...
- Page 14 4 Operation 4.1 Initial start-up Observe the safety instructions prior to initial start-up! Remove the transport protection on the bottom of the device by loosening the two Allen screws marked in red. The transport protection screws must be inserted again before returning the device. ...
- Page 15 3. To open the DDS canister lid, hold it on the reinforcement bars of the mounting fixture and then pull the DDS canister lid up and off by reaching into the opening for the filter. 4.6 Inserting/removing the DDS bacterial filter / oversuction stop The DDS bacterial filter / oversuction stop are dispos- able products. Before each use, check whether the DDS bac- terial filter / oversuction stop is dry and clean. Replace the DDS bacterial filter with a new DDS bacterial filter if it is discoloured or contaminated or if oversuction has occurred.
- Page 16 4.10 Inserting the DDS hose adapter 1. Insert the DDS hose adapter (Ø 6 or 10 mm) into the ‘Patient’ opening on the DDS canister lid. 2. Turn it slightly and press it down. The adapter can be removed again by turning it slightly.
- Page 17 4.13 DDS changeover docking station The maximum load of the station is 15 kg; higher loads may damage the device! The DDS changeover docking station is used if two secretion canisters are required. The changeover lever serves to switch the vacuum to the secretion canister being used.
- Page 18 5 Reprocessing 5.1 Safety instructions for reprocessing 5.1.1 General safety instructions We recommend that you always document all maintenance work and part replacements in writing. It is the responsibility of the user to ensure that the demands for cleaning and disinfec- tion are adhered to.
- Page 19 Unsuitable cleaning agents and disinfectants. The product may become damaged. • Do not use any process chemicals containing the following ingredients on plastic parts: • Chloramides or phenol derivatives • Do not use any process chemicals containing the following ingredients on stainless steel: •...
- Page 20 Cleaning agent (manufacturer) Active ingredients in 100 g Type Green & Clean SK <1 g dialkyldimethylammonium chloride, <1 g alkyldimethylethylbenzylam- Foam (Metasys) monium chloride, <1 g alkyldimethylbenzylammonium chloride Ready to use Dismozon® plus 95.8 g magnesium monoperoxyphthalate hexahydrate Granulate (Bode Chemie) Kohrsolin®...
- Page 21 Accessories • DDS bacterial filter Hoses • Suction hose Replace the DDS bacterial filter if it is discoloured or soiled, or if oversuction has occurred; see chapter 15‘4.6 Inserting/removing the DDS bacterial filter / oversuction stop’ on page 15. If an accessory shows any visible damage, please replace it. Replace the DDS bacterial filter at every cleaning or when disinfecting the DDS secre- tion canister system. Selecting process chemicals Observe the manufacturer’s specifications for the process chemicals. Cleaning agent (manufacturer) Active ingredients in 100 g Type Cleaning agents - Mechanical reprocessing neodisher®...
- Page 22 Collecting and transporting • Label any damaged accessories. • Place the accessories in a secretion canister. • Transport the secretion canister to the reprocessing location. Dismantling • See chapter ‘5.2 Preparing / completing reprocessing’. • Dispose of disposable products. Pre-cleaning •...
- Page 23 5.4.3 Hoses Carefully prepare areas which are difficult to access. Pretreatment at the site of use • Clean the accessories under cold, running water. • Thoroughly rinse the hollow spaces of the accessories with running water. No more residue is visible. Collecting and transporting • Label any damaged accessories. •...
- Page 24 ATMOS recommends: Work should be carried out by an authorised ATMOS service partner. This ensures that repairs and tests are carried out professionally, original spare parts are used, and warranty claims are maintained.
- Page 25 7 Troubleshooting 7.1 Troubleshooting The product has been subjected to a thorough quality control in the factory. However, if a fault should occur, you may be able to resolve it yourself. Error symptom Possible cause Remedy • Device does not •...
- Page 26 8 Accessories Accessories Foot switch 443.0755.0 Foot controller ATMOS Record 55 443.0770.0 Potential equalisation cable 008.0596.0 Practice package 1.5 l 340.0002.0 Practice package 3 l 340.0003.0 DDS secretion canister, plastic 1.5 l, autoclavable 340.0050.0 DDS secretion canister, plastic 3 l, autoclavable 340.0051.0...
- Page 27 9 Consumables Spare part Bacterial filter for ATMOS DDS secretion canister, pack of 10 pcs. 340.0054.0 Suction hose, PVC, disposable, Ø 8 mm, L = 2.10 m, 50 pcs. 006.0059.0 Suction hose, silicone, Ø 6 mm, L = 1.30 m, 1 pc. 000.0013.0 Suction hose, silicone, Ø 6 mm, L = 2 m, 1 pc.
- Page 28 The product does not contain any hazardous materials. 1. Clean and disinfect the product. 2. In Germany: Send the product back to ATMOS or your specialist dealer. They will dispose of the product properly. 3. In other countries: Dispose of the product properly and in accordance with coun- try-specific laws and regulations.
- Page 29 11 Technical data Pump suction capacity 55 ± 3 l/min Max. vacuum −98 kPa (−980 mbar or −735 mmHg) Vacuum display −1...0 bar ± 25 mbar Vacuum regulator Mechanical regulating valve Suction hose Ø 6 mm, 2.1 m long Nominal voltage 230 V~, 50/60 Hz Nominal current Approx. 0.45 A at 230 V~ Power consumption Approx.
- Page 30 HF-shielded room of a magnetic resonance imaging system. The customer or user of the ATMOS Record 55 must ensure that it is used in such an environment. Guidance and manufacturer’s declaration – key features ...
- Page 31 13 Notes Notes...
- Page 32 ATMOS MedizinTechnik GmbH & Co. KG Ludwig-Kegel-Str. 16 79853 Lenzkirch / Germany Tel. : +49 7653 689-0 info@atmosmed.de www.atmosmed.de...
